5V 6A Power Supply

5V 6A Power Supply

Ocean Robotix Pvt Ltd

5V 6A Power Supply

100 in stock

This simple power supply converts 7-26V to a steady 5V at up to 6A!

Rs. 3,360.00
Rs. 3,360.00
Sale Sold out
SKU: BR-100869
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

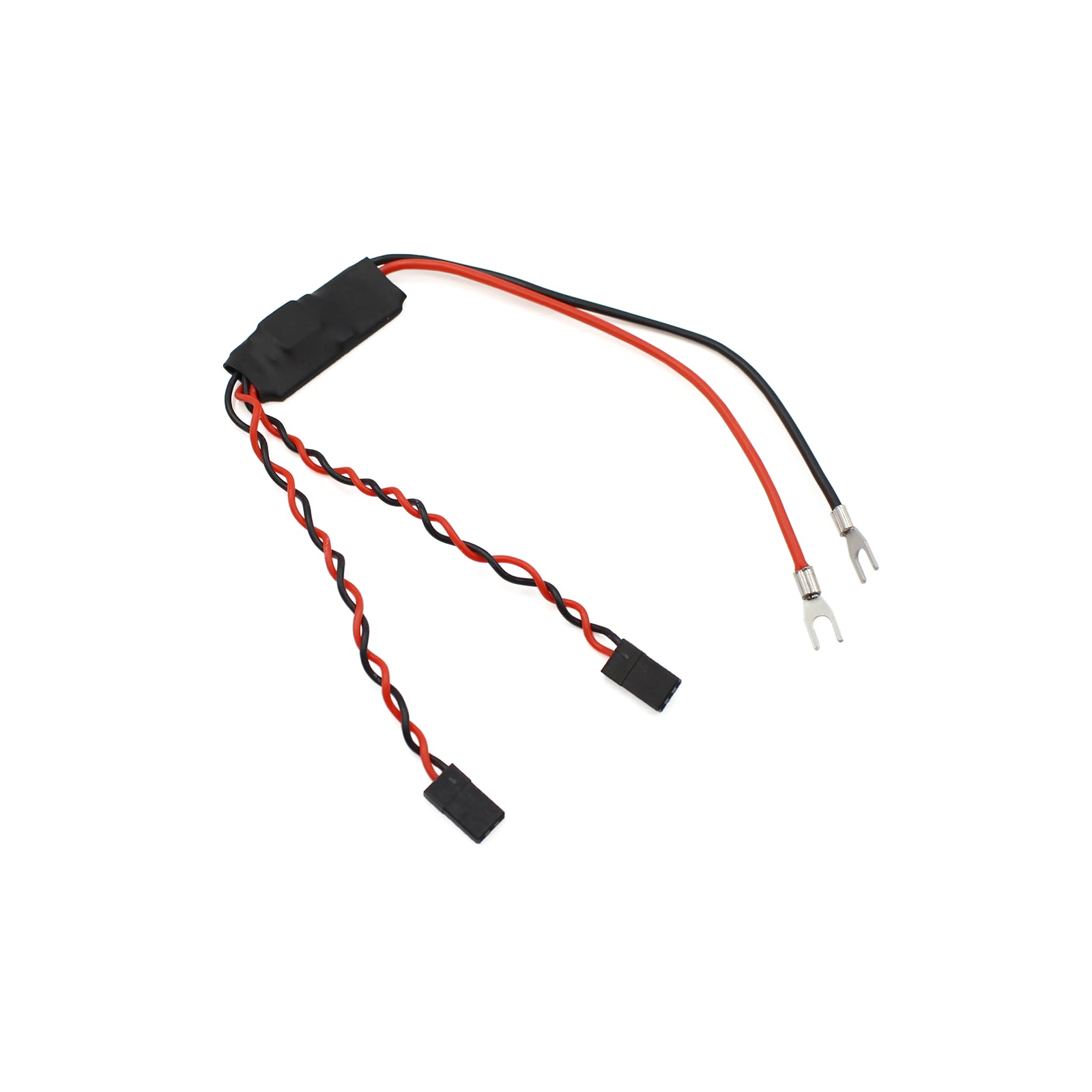

This power supply provides 5v power at up to 6A. It accepts input voltages from 7v to 26v and uses a switching converter with minimal heat loss. It comes with two standard servo-style connectors, making it easy to use to power the Navigator or Pixhawk 5v rail for servos, the Raspberry Pi, or other 5v devices.

  • 1 x 5V 6A Power Supply
Parameter Value
Electrical
Supply Voltage 7–26V
2S–6S Li-po/Li-ion Battery
Output Voltage 5 Volts DC
Output Current (Max) 6 Amps (combined output)
Input Connector Non-Insulated Spades
Output Connectors 3 position 0.1” (2.54mm) Crimp Connector Housing
Physical
Length 37 mm 1.45 in
Width 18 mm 0.71 in
Height 6 mm 0.24 in
Input Wire Length 140 mm 5.5 in
Output Wire Length 115 mm 4.5 in

18 July 2023

  • BEC-5V6A-R1 SKU changed to BR-100869

10 October 2018

  • R1 - Initial release
