Basic ESC 500

Basic ESC 500

Ocean Robotix Pvt Ltd

Basic ESC 500

100 in stock

This bidirectional speed controller is similar to our original Basic ESC, but suited for the high power requirements of the T500 Thruster, even when in a space with poor airflow and cooling, like inside an ROV enclosure. It comes in two versions: a standard version for most applications and a BlueBoat version for use in the BlueBoat USV.

Variant
Rs. 11,550.00
Rs. 11,550.00
Sale Sold out
SKU: BR-101319
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

The Basic ESC 500 is a high-power electronic speed controller (ESC) for three-phase brushless motor like Blue Robotics’ thrusters and motors. It has a 50A current rating suitable for both the T200 and T500 Thrusters and is suited to operate in poorly cooled installations, such as in an ROV enclosure.

Key Features

  • Simple, robust brushless electronic speed controller
  • Compact form factor
  • Forward/reverse rotation direction for forward/reverse thrust
  • High-efficiency, low-heat design optimized for minimal cooling environments

It comes in two versions: a standard version and BlueBoat version. The standard version has a male XT90 power connector and female 4mm bullet connectors to the thruster. It also includes a set of male 4mm bullet connectors to install on the thruster. The BlueBoat version comes with spade connectors for power and an MT60 connector for the motor. The BlueBoat version also includes a 5V 5A power supply to power other electronics.

To get started quickly with your thruster and ESC, we recommend the Thruster Commander, which provides the appropriate control signal and is easy to get started with!

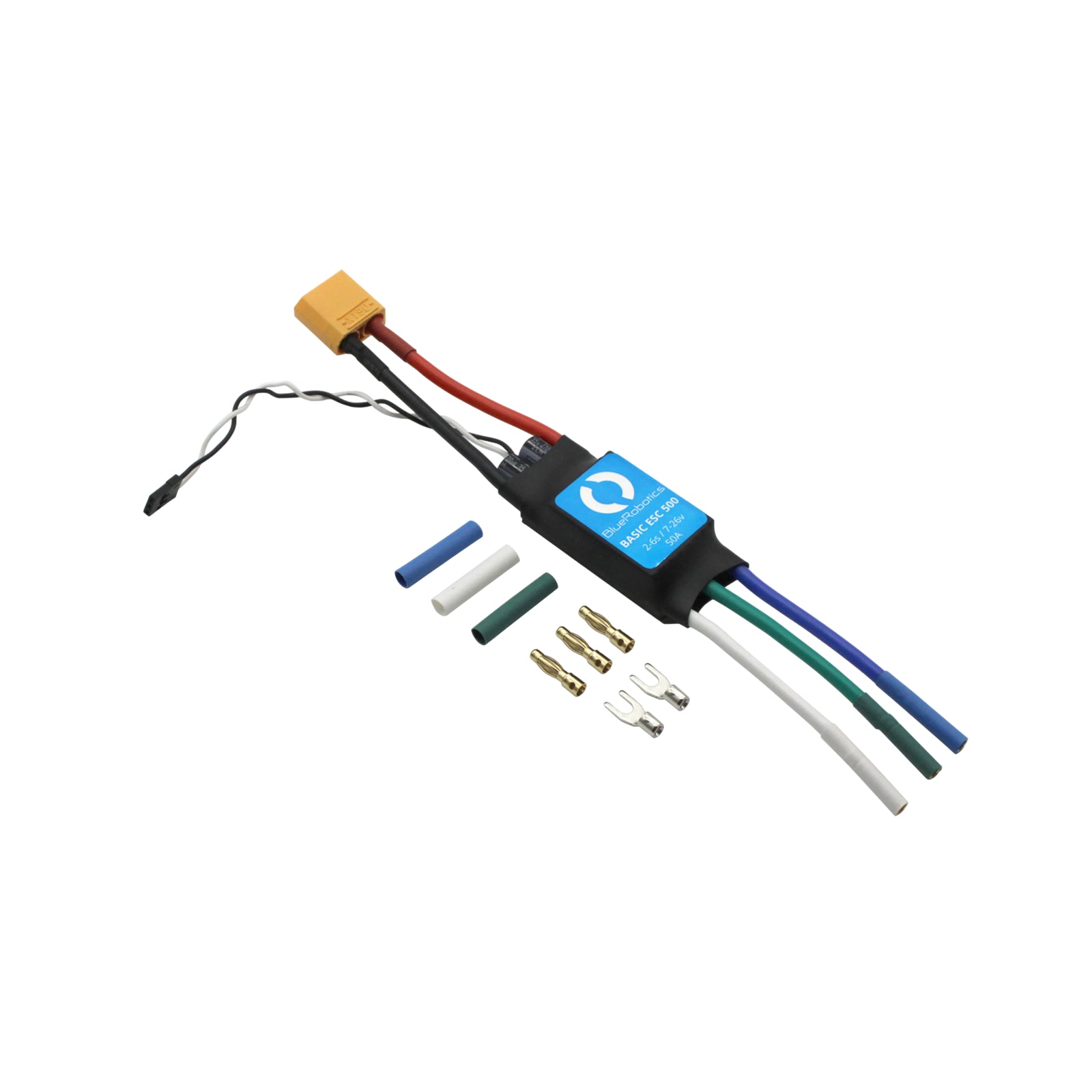

Standard Variant

  • 1 x Basic ESC 500
  • 3 x 4mm Male Bullet Connectors and Heatshrink
  • 2 x Spade Terminals (for use with a barrier block, if needed)

BlueBoat Variant

  • 1 x Basic ESC 500 (BlueBoat variant)
Parameter Value
Electrical
Voltage 7–26 V (2–6S)
Max Current (Constant) 50 A (depending on cooling)
BEC 5 V (BlueBoat variant only)
BEC Max Current 4 A
Physical
Size (L×W×H) 78 × 31 × 20.5 mm (standard variant)
78 × 31 × 22.5 mm (BlueBoat variant)
Weight 80 g 0.176 lb
Power Connector XT90 male (standard variant)
#10 Spade connector (BlueBoat variant)
Motor Connectors 4 mm Female bullet (standard variant)
MT60 female (BlueBoat variant)
Signal Connector 3-pin servo connector (0.1” pitch) (ground, blank, signal)
5 V BEC Connector #6 Spade connector (BlueBoat variant only)
Pulse Width Signal
Signal Voltage 3.3–5 V
Update Rate 50–500 Hz
Stopped 1500 µs
Max Forward 1900 µs
Max Reverse 1100 µs
Firmware Defaults
Directionality Bidirectional (center throttle is zero/stopped)
Thermal Protection
Temperature Motor Power Limit
≥140°C 75%
≥145°C 50%
≥150°C 25%
≥155°C 0%
* Dependent on cooling and ESC maximum throttle use.
