Product Description

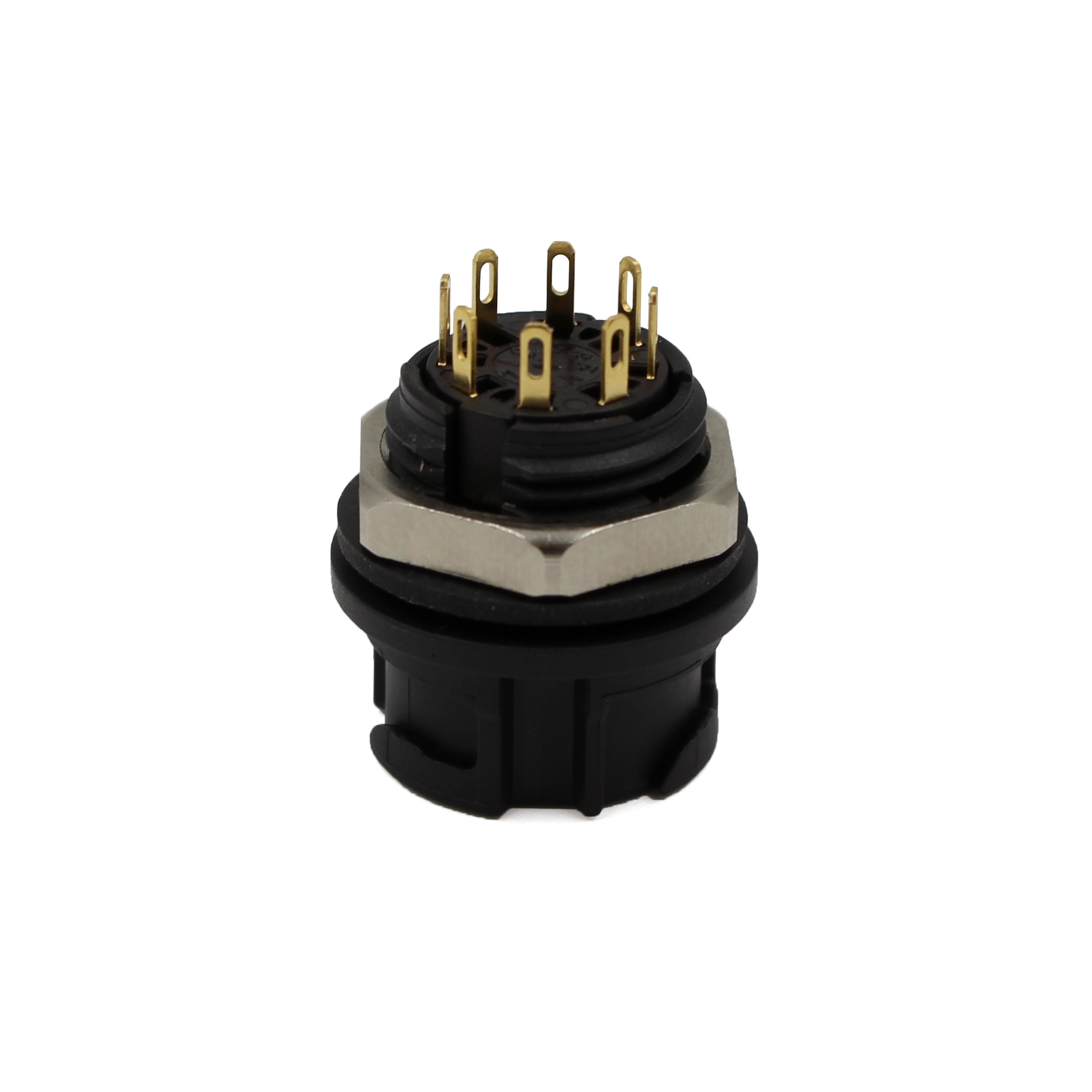

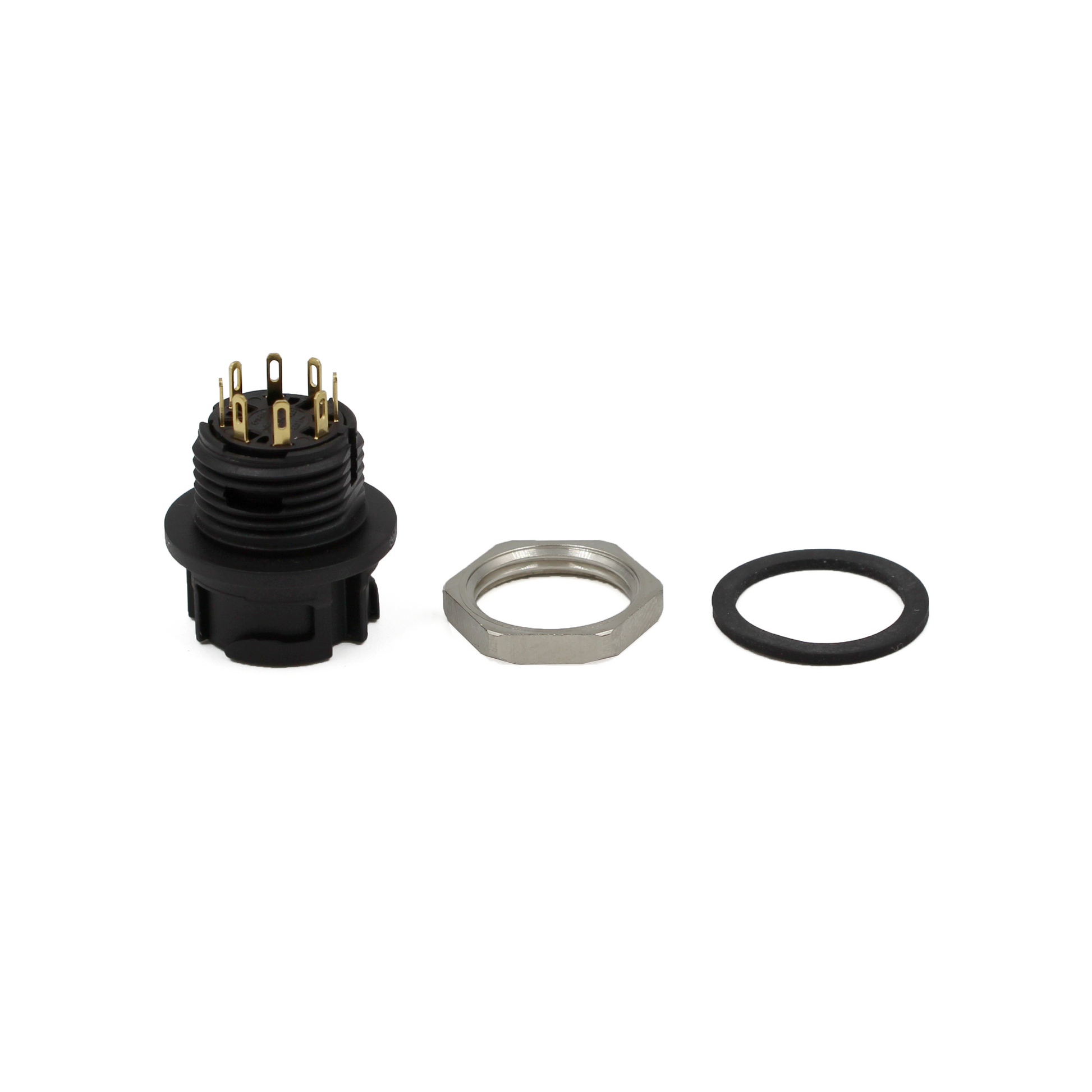

The Binder 770 connector is our standard connector for tether connections above the water. The connectors have 8 pins, are IP67 splashproof when mated, reasonably priced, and compact. This Binder 770 bulkhead connector can be mounted in a spare hole on the FXTI for your custom connections. A corresponding Binder 770 Plug is required for use.
The connector has a current rating of 2A per pin, is rated for 175V (1750V impulse), can handle >5000 mating cycles, and has gold plated pins.
Please note that the connector requires moderate soldering skills.
| Parameter Size | Value | ||||
|---|---|---|---|---|---|
| Termination | Solder | ||||
| Wire gauge | 0.25 mm2 | 24 - 28 AWG | |||
| Ingress protection | IP67 | ||||
| Mechanical operation | >5000 mating cycles | ||||
| Temperature range | -25°C - 85°C | -13°F - 185°F | |||
| Rated voltage | 175 V | ||||
| Rated impulse voltage | 1750 V | ||||
| Rated current | 2 A | ||||
| Contact material | CuZn | ||||
| Body material | PA (UL 94 HB) | ||||
