BlueBoat BaseStation

BlueBoat BaseStation

Ocean Robotix Pvt Ltd

BlueBoat BaseStation

100 in stock

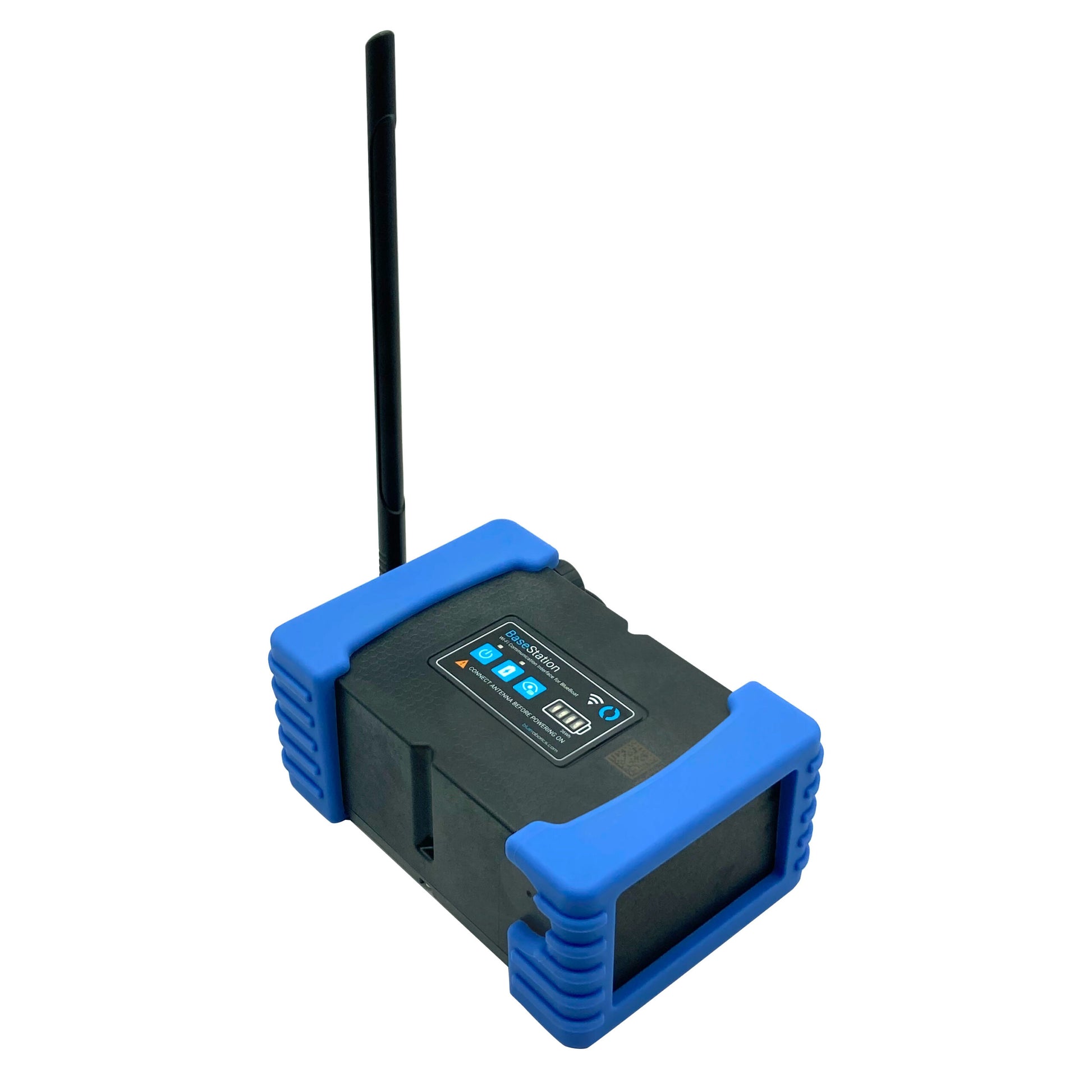

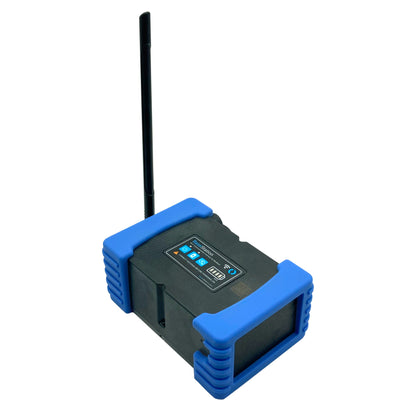

The BaseStation is a wifi radio access point for the BlueBoat with a 2.4 Ghz MikroTik radio, internal battery and charge management, and USB-C connectivity. You can connect directly over USB-C or connect your device to the access point to connect with your BlueBoat.

Buy More, Save More!
Rs. 60,900.00
Rs. 60,900.00
Sale Sold out
SKU: BR-101669
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

The BlueBoat connects with the BaseStation over a 2.4 Ghz wifi radio to provide a connection to your laptop or device. It comes ready to use, with a MikroTik radio, internal battery, and USB-C connectivity.

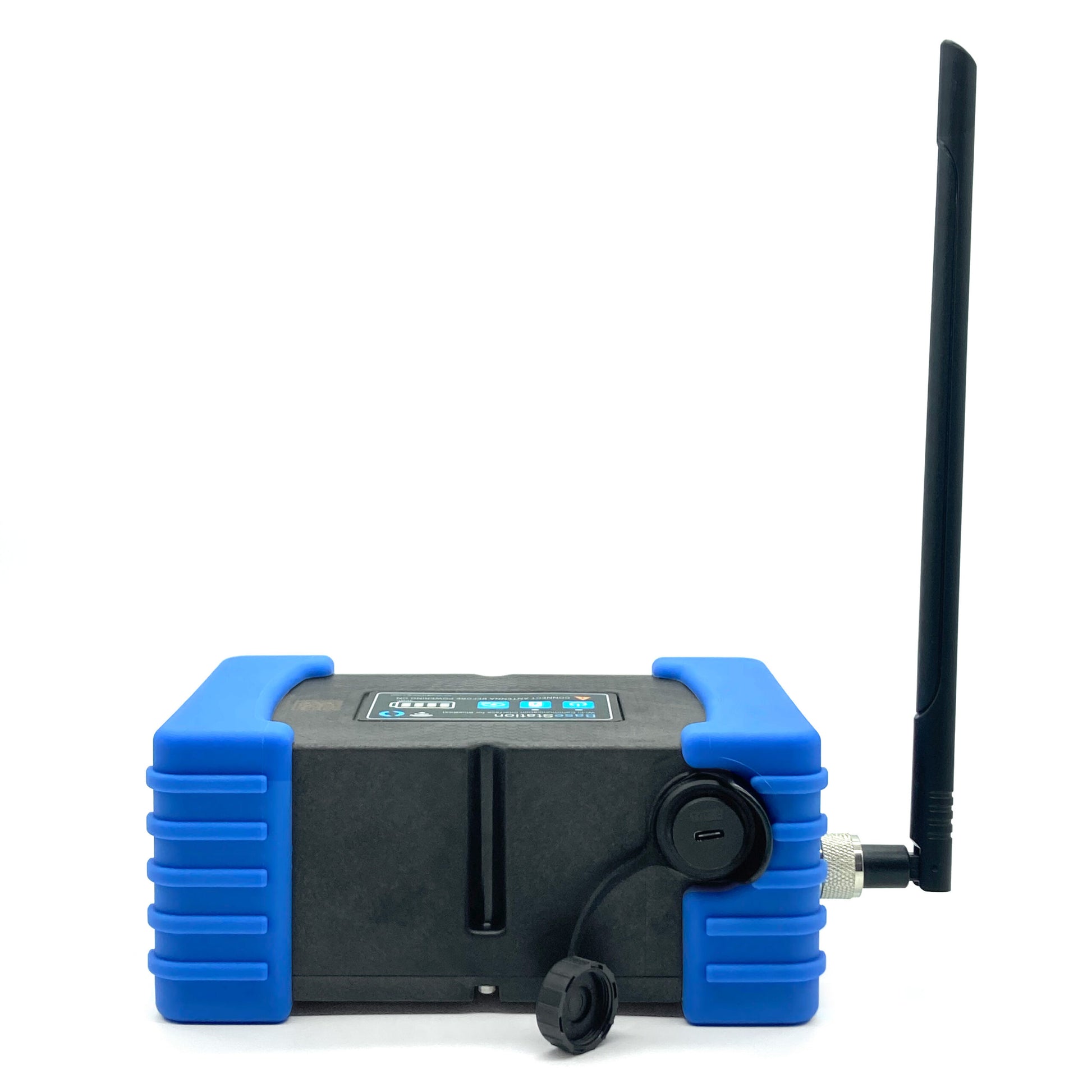

The internal radio is set up as an access point, so it broadcasts a wifi network that the BlueBoat and your own device can connect to. That makes it easy to use your boat wirelessly from a tablet or laptop, but you can also make a hardwired connection via the USB-C port.

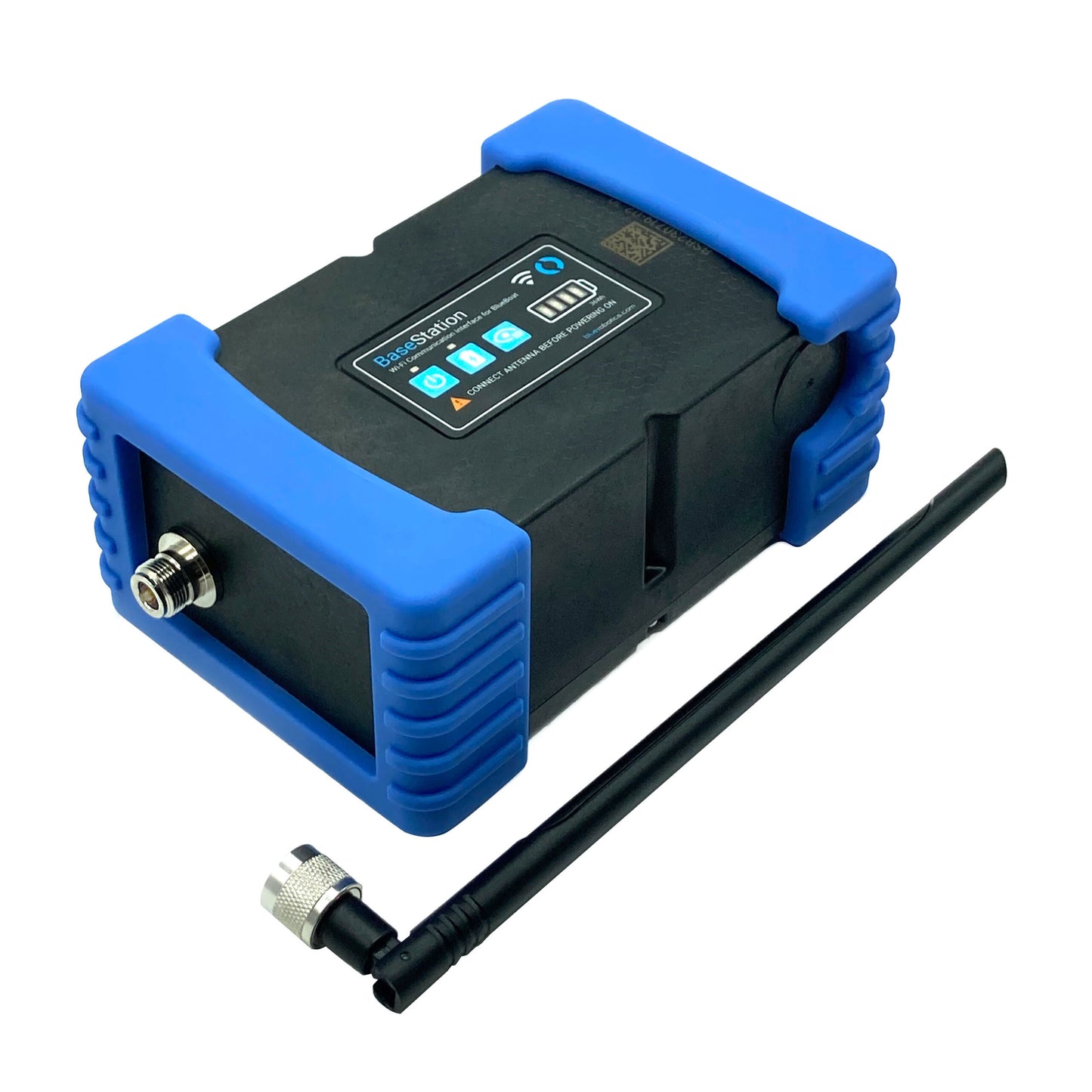

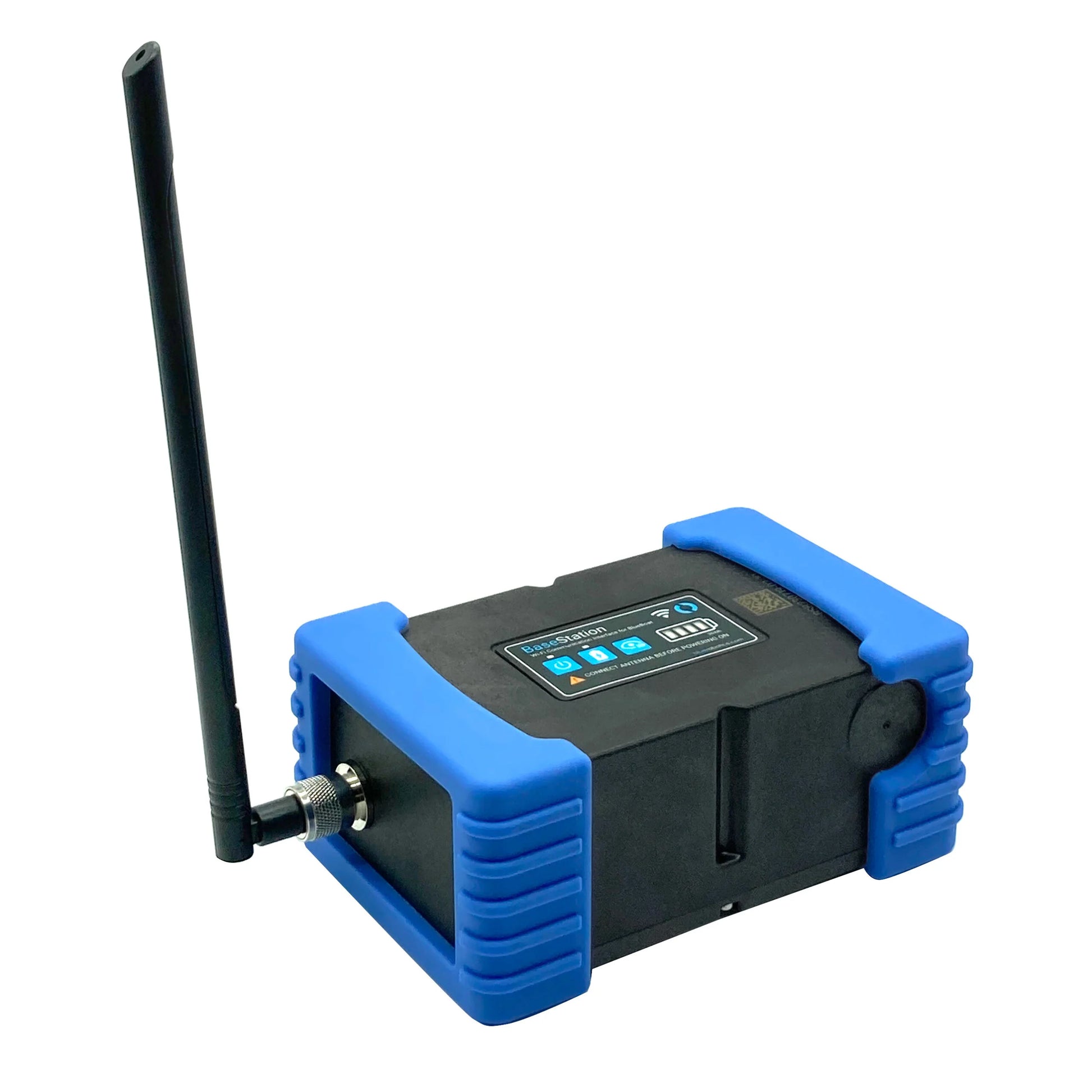

By default, the BaseStation comes with an omni-directional whip antenna, providing up to 250 m range. If you need more range, it’s compatible with directional antennas that provide a more focused signal towards the BlueBoat. You can connect an antenna to the N-type bulkhead on the box.

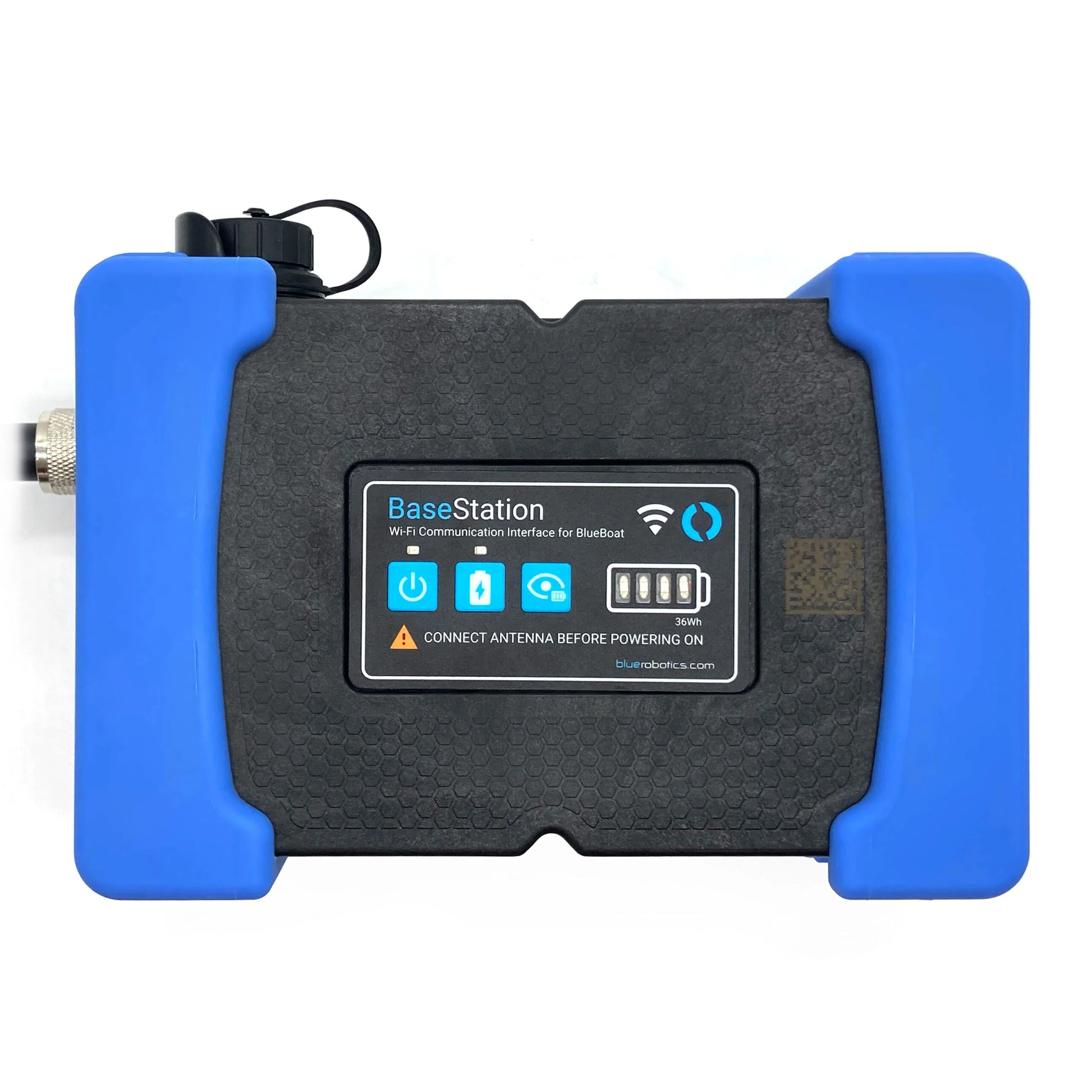

A control pad shows the charge state of the battery and allows you to turn the box on and off and control charging.

  • 1 x BaseStation
  • 1 x USB-C cable, 2m
  • 1 x Antenna, 2.4Ghz 7dBi omni
Parameter Value
Physical
Length × Width × Height (No Antenna) 190 × 135 × 84 mm 7.5 × 5.3 × 3.3 in
Weight 660 g 1.5 lbs
IP Rating IP67
Tripod Mounting 1/4″ and 3/8″ threaded inserts
Other Mounting Points 4× M6×1 threaded inserts
Materials 30% glass-filled polycarbonate box
Silicone bumpers
Silicone gasket
SS316 threaded inserts
Communications
Wireless Communications Protocol 802.11a/b/g/n (2412–2462 MHz)
Wireless Router MikroTik RBGrooveA-52HPn
Default Wireless Configuration Access Point Mode (AP)
Default SSID “BaseStation-2.4Ghz”
Default Password “BaseStation”
BaseStation Router Default IP Address 192.168.2.3
BlueBoat Router Default IP Address 192.168.2.4
Included Antenna 7 dBi 2.4 GHz omnidirectional, N-type male connector
Wireless Range for Telemetry and Control (w/ included antennas)¹ up to 250 m up to 0.135 NM
Wireless Range for Telemetry and Control (w/ directional antennas, not included)¹ >1 km >0.54 NM
Connection to Computer 2.4 GHz Wi-Fi or USB-C
Electrical
Internal Battery 3× 18650 lithium-ion cells (1S3P)
Internal Battery Capacity 36 Wh
Typical Runtime 6–8 hrs²
Max Charging Rate 9 W (5V / 1.8A)
Charging Time 4 hrs

¹ Dependent on operating conditions. Weather, sea state, BaseStation height, wireless interference, and noise will affect wireless range.
² Indefinite runtime when powered through USB-C cable. Charging through USB-C connection can be toggled from button panel.

9 July 2024

  • Default wireless settings updated

27 March 2024

  • BR-101669 RevB - Initial release
  • USB-C bulkhead now reversible
  • USB-C 90 degree cable changed to 90 degree to straight cable
  • Increased hardness of silicone bumpers
  • Corrected maximum charge rate and charge time in technical details

31 October 2023

  • BR-101669 - Initial release
