BlueBoat BaseStation

BlueBoat BaseStation

Ocean Robotix Pvt Ltd

BlueBoat BaseStation

Low stock: 1 left

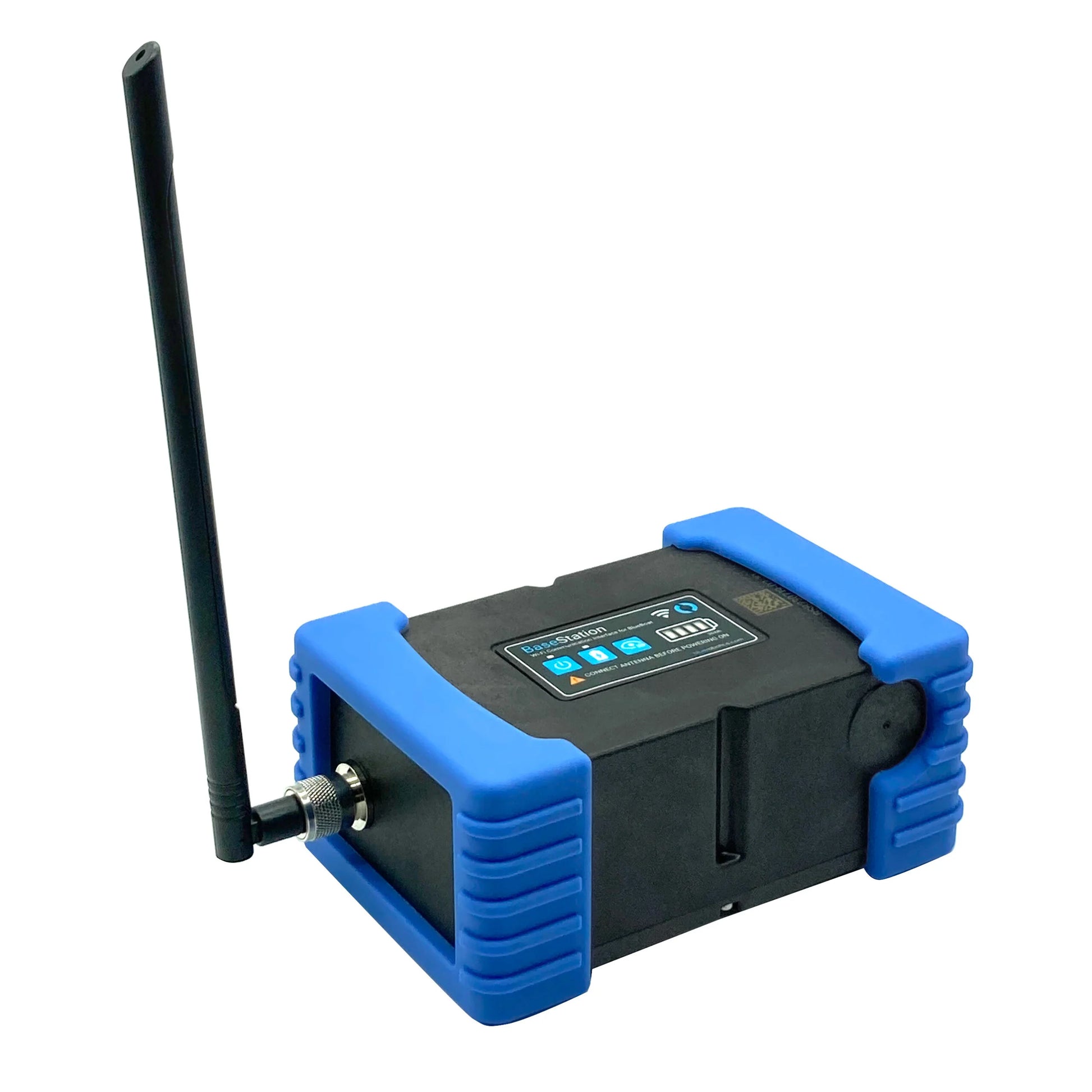

The BaseStation is a wifi radio access point for the BlueBoat with a 2.4 Ghz MikroTik radio, internal battery and charge management, and USB-C connectivity. You can connect directly over USB-C or connect your device to the access point to connect with your BlueBoat.

Rs. 60,900.00
Rs. 60,900.00
Sale Sold out
SKU: SKU: BR-101669
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

The BlueBoat connects with the BaseStation over a 2.4 Ghz wifi radio to provide a connection to your laptop or device. It comes ready to use, with a MikroTik radio, internal battery, and USB-C connectivity.

The internal radio is set up as an access point, so it broadcasts a wifi network that the BlueBoat and your own device can connect to. That makes it easy to use your boat wirelessly from a tablet or laptop, but you can also make a hardwired connection via the USB-C port.

By default, the BaseStation comes with an omni-directional whip antenna, providing up to 250 m range. If you need more range, it’s compatible with directional antennas that provide a more focused signal towards the BlueBoat. You can connect an antenna to the N-type bulkhead on the box.

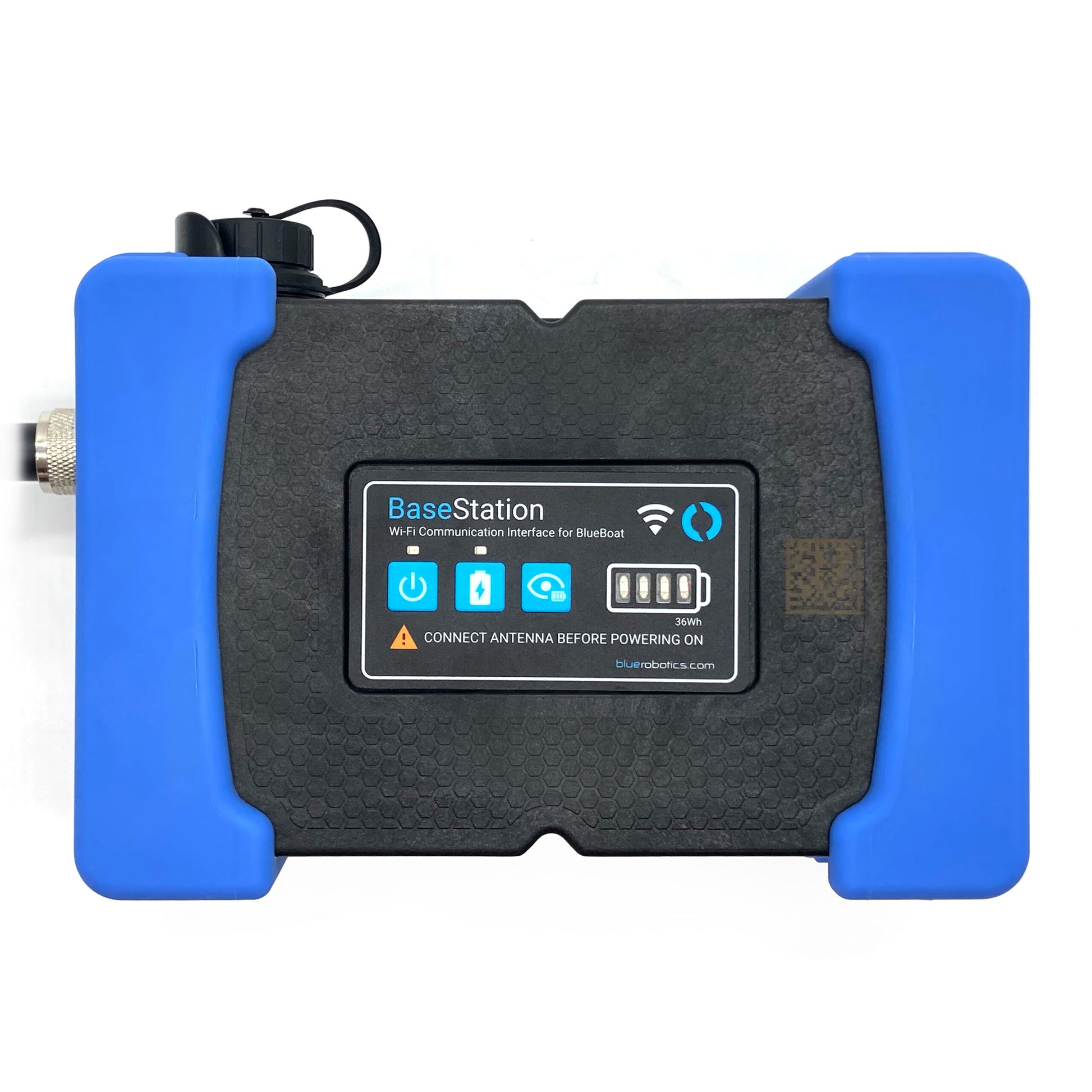

A control pad shows the charge state of the battery and allows you to turn the box on and off and control charging.

  • 1 x BaseStation
  • 1 x USB-C cable, 2m
  • 1 x Antenna, 2.4Ghz 7dBi omni
Product Specifications

Physical Specifications

Parameter Value
Length x Width x Height (No Antenna) 190 x 135 x 84 mm (7.5 x 5.3 x 3.3 in)
Weight 660 g (1.5 lbs)
IP Rating IP67
Tripod Mounting 1/4" and 3/8" Threaded inserts
Other Mounting Points 4x M6×1 Threaded inserts
Materials 30% Glass filled polycarbonate box
Silicone bumpers
Silicone gasket
SS316 threaded inserts

Communications

Parameter Value
Wireless Communications Protocol 802.11a/b/g/n (2412 - 2462MHz)
Wireless Router MikroTik RBGrooveA-52HPn
Default Wireless Configuration Access Point Mode (AP)
Default SSID "BaseStation - 2.4Ghz"
Default Password "BaseStation"
BaseStation Router Default IP Address 192.168.2.3
BlueBoat Router Default IP Address 192.168.2.4
Included Antenna 7dBi 2.4Ghz Omnidirectional, N-type male connector
Wireless Range (Included Antenna) Up to 250 m (0.135 NM)
Wireless Range (Directional Antenna - Not Included) >1 km (>0.54 NM)
Connection to Computer 2.4Ghz Wi-Fi or USB-C

Electrical

Parameter Value
Internal Battery 3x 18650 Lithium-Ion Cells (1S3P)
Internal Battery Capacity 36Wh
Typical Runtime 6–8 hrs
Max Charging Rate 9W (5V/1.8A)
Charging Time 4 hrs

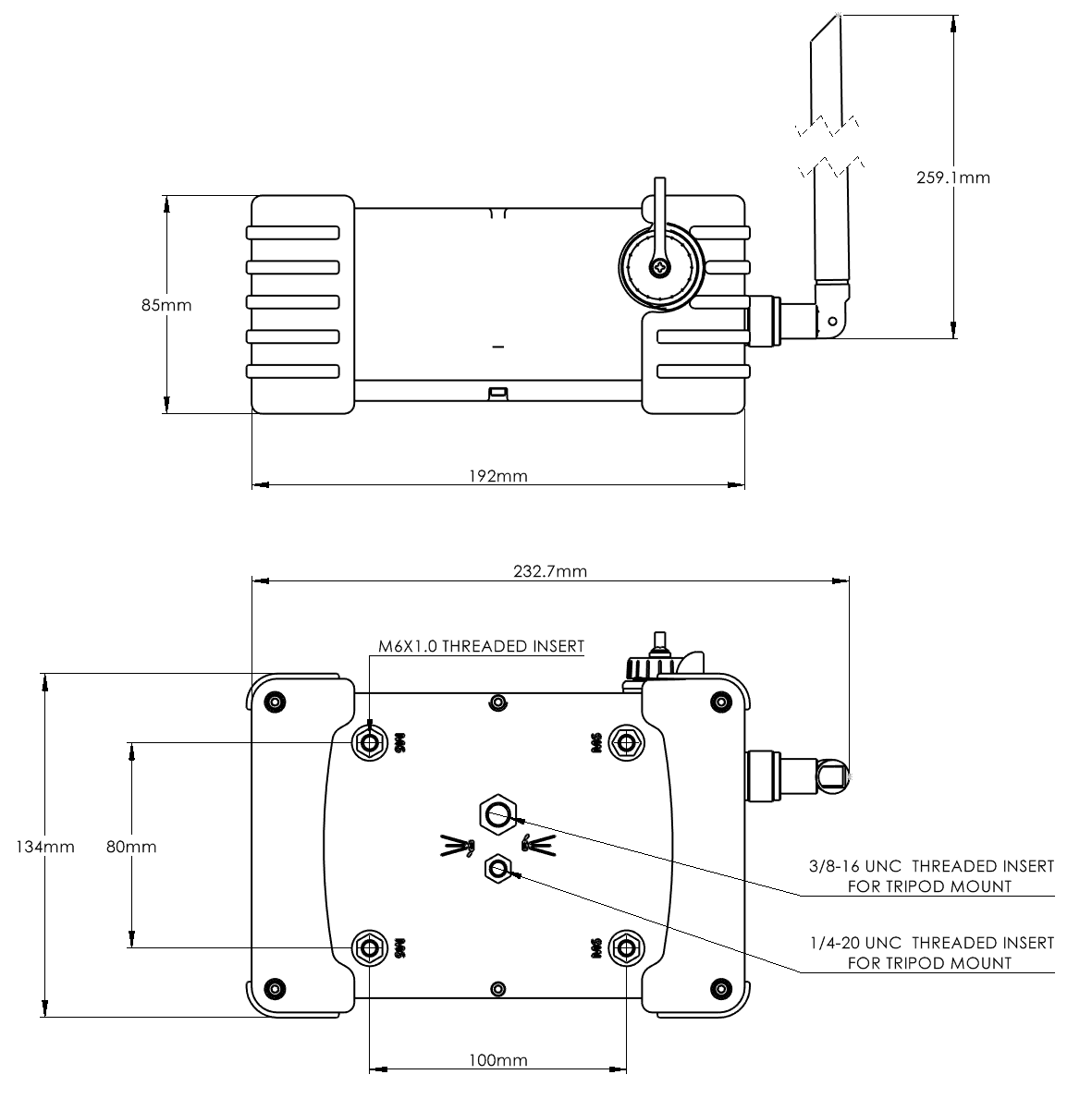

BlueBoat BaseStation - Drawing 1

9 July 2024

  • Default wireless settings updated

27 March 2024

  • BR-101669 RevB - Initial release
  • USB-C bulkhead now reversible
  • USB-C 90 degree cable changed to 90 degree to straight cable
  • Increased hardness of silicone bumpers
  • Corrected maximum charge rate and charge time in technical details

31 October 2023

  • BR-101669 - Initial release
