Product Description
Say goodbye to range anxiety! This 4G LTE global cellular modem provides mobile network connectivity for the BlueBoat, enabling long-range communication beyond the reach of the BaseStation.

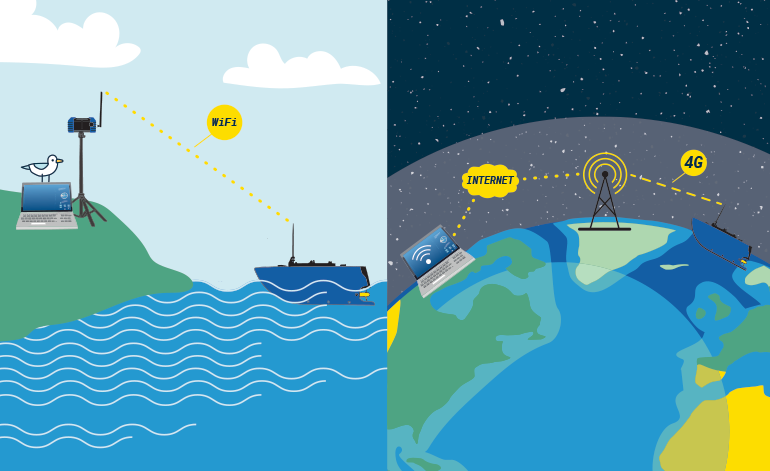

With a cellular connection, the BlueBoat can operate remotely while you control and monitor it from hundreds of miles away. Just like your cell phone, the modem connects to mobile networks using 4G LTE, so the BlueBoat can stay online anywhere with cellular coverage.
The cellular connection is best suited for low-bandwidth tasks like viewing telemetry, monitoring and updating missions, or issuing commands. It’s not ideal for high-bandwidth devices or payloads due to potential high data costs and lower connection speed.
| Parameter | Value |
|---|---|
| Modem | |
| Modem Manufacturer | Quectel |
| Modem Model | EG25-G |
| Modem Interface | Mini PCI-E |
| Antenna Connectors | SMA |
| Antenna Ports |
1 × Main 1 × Diversity |
| Antenna Frequency | 600 MHz–2700 MHz (4G) |
| USB Connector | USB-C |
| Modem Mode | QMI, ECM, MBIM |
| Supported AT Commands | See AT command manua |
| Region | Global |
| Supported Bands | |
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| LTE-TDD | B38, B39, B40, B41 |
| WCDMA | B1, B2, B4, B5, B6, B8, B19 |
| GSM | 850, 900, 1800, 1900 MHz |
| LTE Category | 4 |
| Theoretical Maximum Bandwidth | 150 Mbps down / 50 Mbps up |
| Typical Bandwidth | 5 Mbps down / 3 Mbps up |
| Total Kit Weight | 452 g |
| Regulatory (modem only) |
GCF (Global) CE (Europe) FCC/PTCRB (North America) IC (Canada) Anatel (Brazil) IFETEL (Mexico) SRRC/CCC/NAL (China) KC (South Korea) NCC (Taiwan, China) JATE/TELEC (Japan) RCM (Australia & New Zealand) FAC (Russia) NBTC (Thailand) IMDA (Singapore) ICASA (South Africa) RoHS WHQL |
| External Antenna | |
| Band | 600 MHz–2700 MHz (4G) |
| Connector | N-Type male |
| Gain | 7 dBi, omnidirectional |
| Included SIM | |
| Carrier | Hologram |
| Coverage | Global |
| SIM Card Details | Datasheet |
| Data Cost (varies by region, may change without warning) | Hologram pricing |
| Typical BlueBoat Telemetry Usage | 150 MB/hr (appx.) |
| Typical BlueOS Interface Load | 10 MB (appx.) |
