Product Description

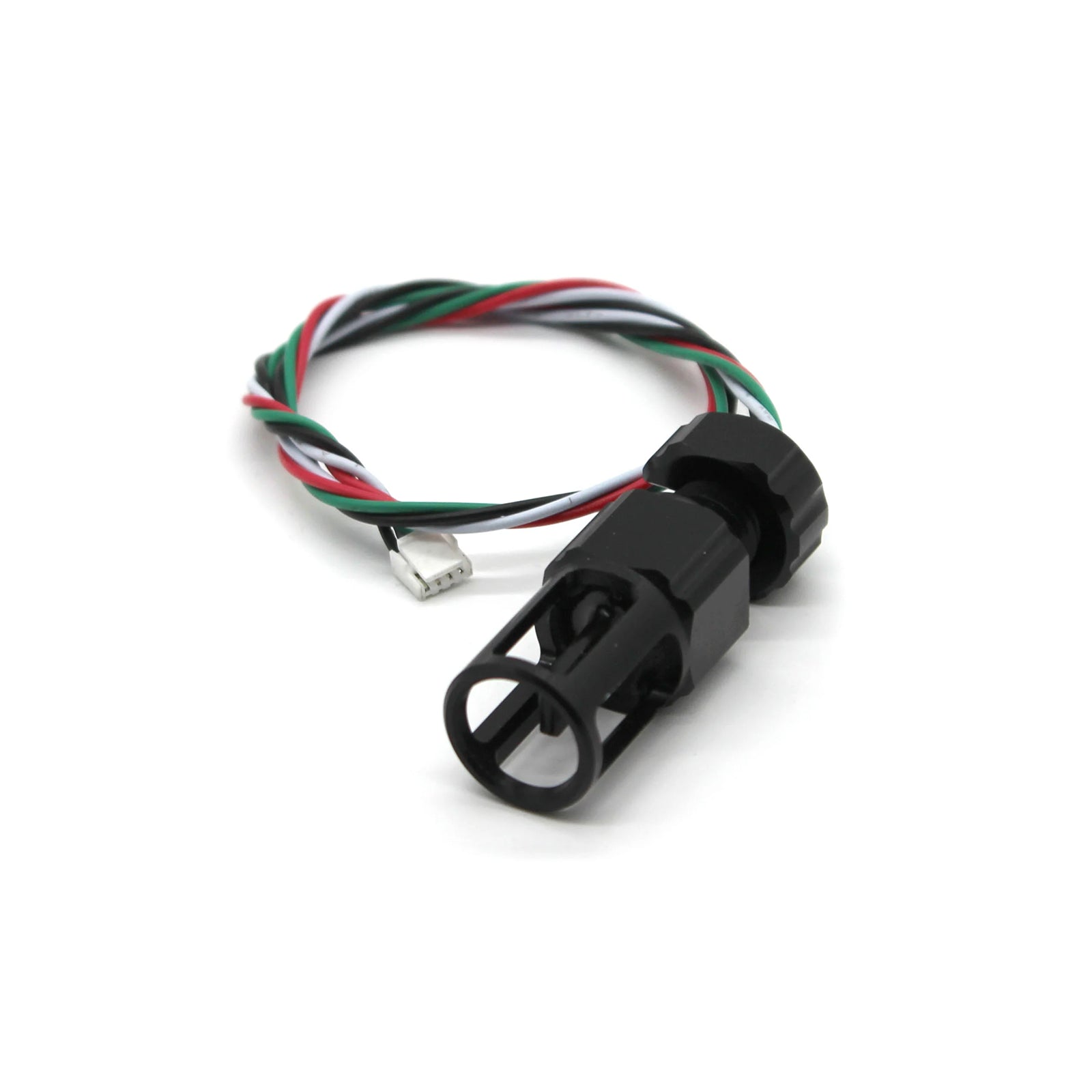

The Celsius temperature sensor is a fast-response, high-accuracy temperature sensor that is protected by an aluminum cage, and sealed from the water when installed on a watertight enclosure. Use it to make depth/temperature profiles, surface temperature profiles, and accurate measurements in any fluid.
The sensor is the Measurement Specialties TSYS01, which is accurate to ±0.1°C and communicates over I2C. It comes standard with a JST GH connector and compatible with most Drone Code compatible boards including the APM2.6, PixHawk, and others.
The TSYS01 sensor itself has a fast time response and we designed the whole package to maintain that speed to allow accurate temperature profile measurements even while descending/ascending quickly. The Celsius sensor has a response time constant of 1 second (with 0.5 m/s flow) and 2 seconds (in still water).

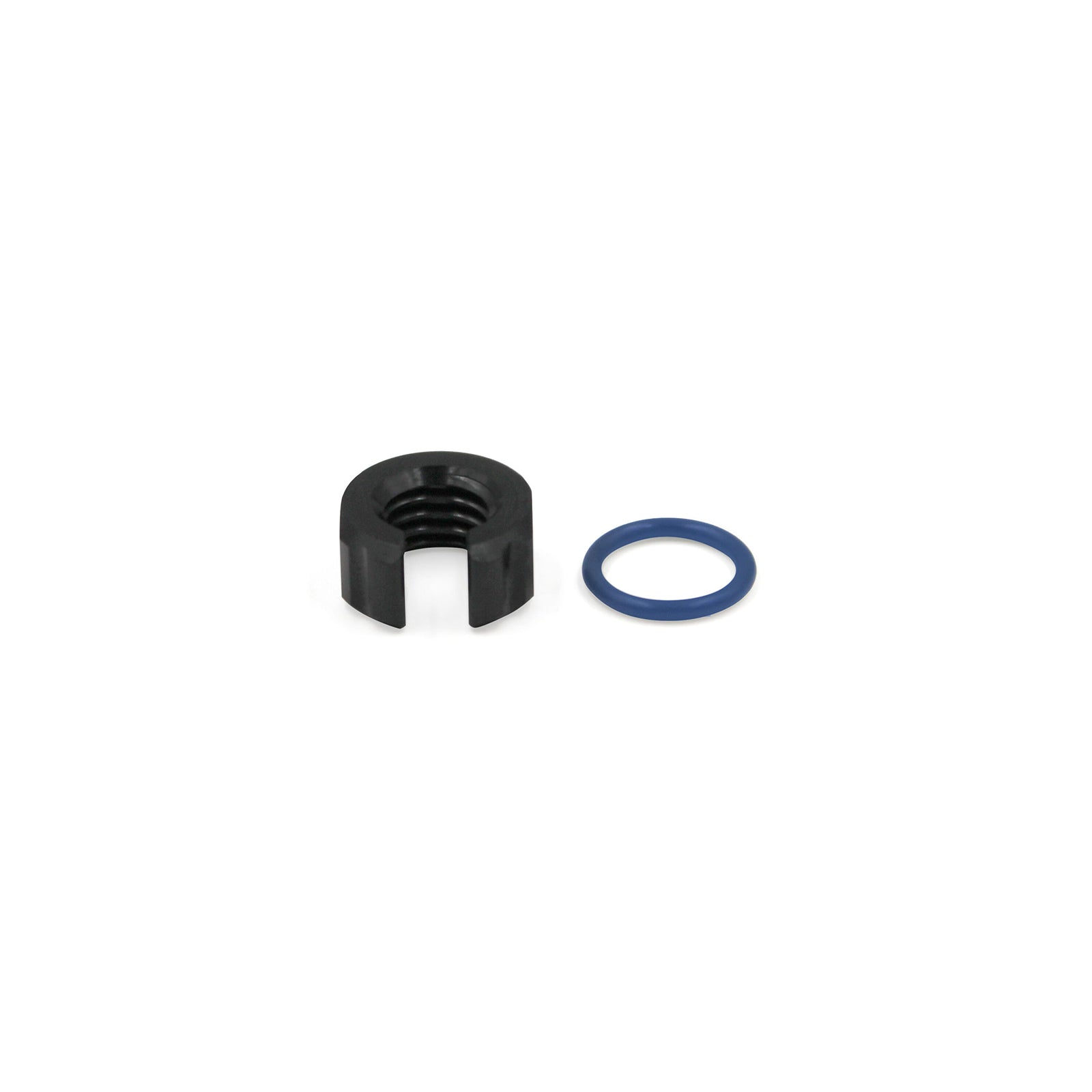

An anodized aluminum cage around the sensor protects it from damage. The body of the sensor is designed around the cable penetrator design and is compatible with all of the watertight enclosures.
The electrical schematic and board layout are open-source and the design files are available in the Technical Details tab. Feel free to adapt for your own needs.

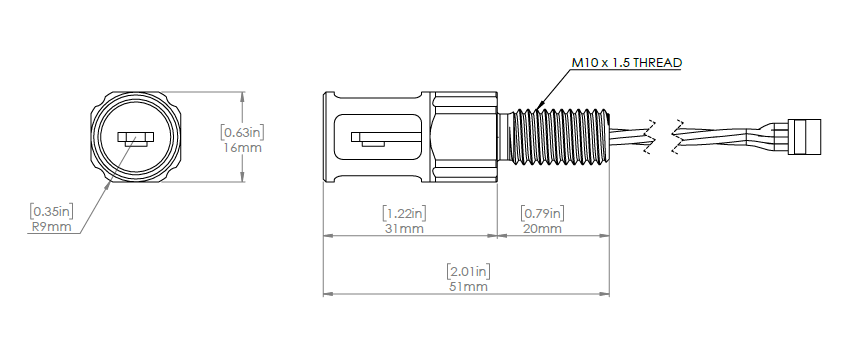

| Parameter | Value | |
|---|---|---|
| Electrical | ||
| Supply Voltage | 3.3 to 5.5 volts | |
| I²C Logic Voltage (SDA and SCL) | 3.3 volts | |
| Peak Current | 1.4 mA | |
| Temperature | ||
| Operating Temperature | -40 to +125°C | -40 to 257°F |
| Storage Temperature | -55 to +150°C | -67 to 302°F |
| Absolute Accuracy | ± 0.1°C (between -5 to 50°C) | ± 0.18°F |
| ± 0.5°C (between -40 to 125°C) | ± 0.9°F | |
| Pressure | ||
| Operating Depth | 0 - 975m | 0 - 3200 ft |
| Physical | ||
| Recommended Through Hole Size | 10.2 mm | 13/32" |
| Interfacing | ||
| ArduSub Compatible? | Yes (SCALED_PRESSURE3) | |
| Development Libraries |
TSYS01 Arduino, TSYS01 Python, TSYS01 ArduPilot |
|
| I²C | ||
| I²C Address | 0x77 | |
| Mating Connector | ||
| Connector Pinout |

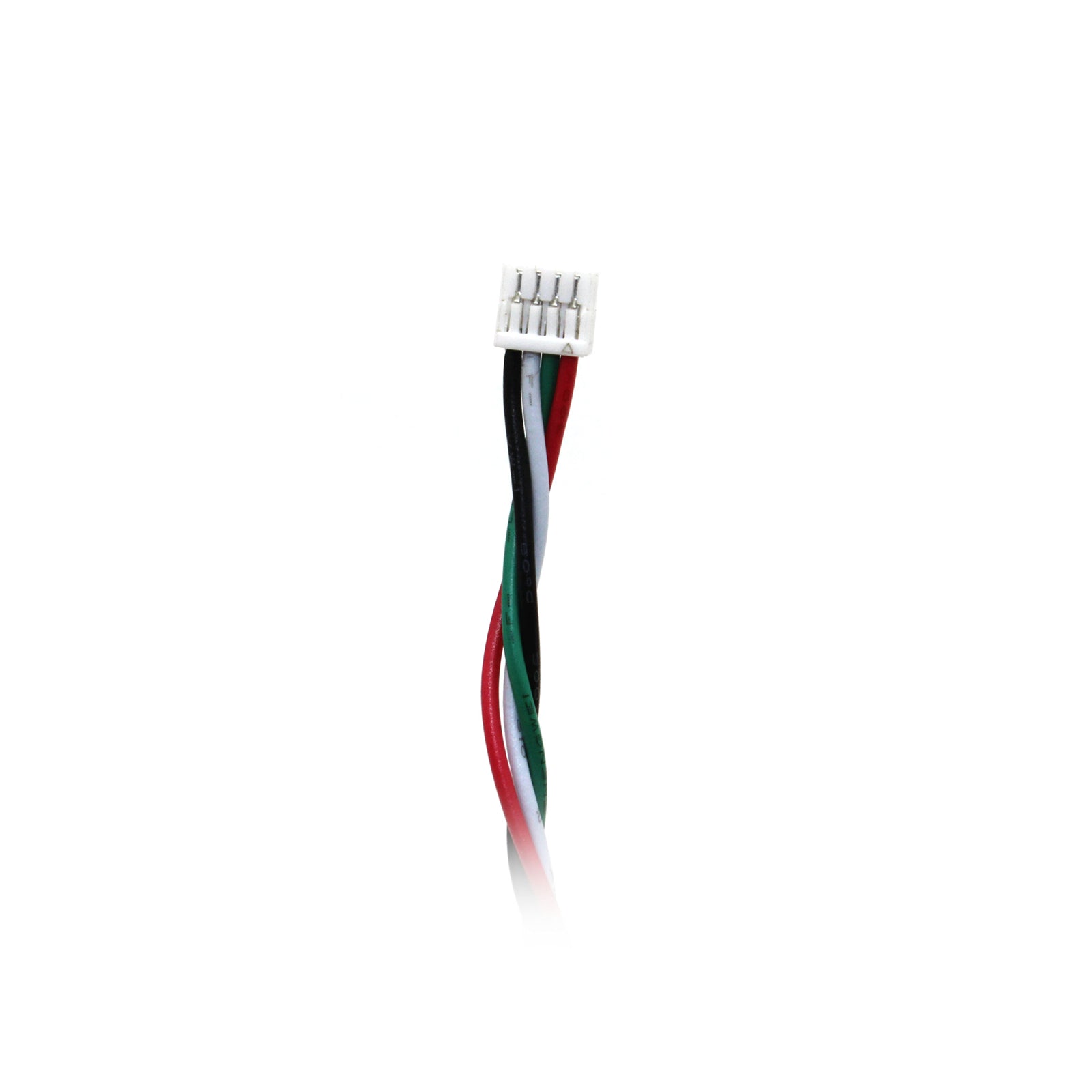

1 - Red 2 - Green 3 - White 4 - Black |
1 - Vin 2 - SCL 3 - SDA 4 - GND |
