Cerulean Omniscan 450 SS Integration Kit

Cerulean Omniscan 450 SS Integration Kit

Ocean Robotix Pvt Ltd

Cerulean Omniscan 450 SS Integration Kit

100 in stock

Includes everything you need to install the Omniscan 450 Side Scan Sonar on the BlueBoat. This integration kit is included with the sonar when you purchase from Blue Robotics, but it’s available separately as well.

The Omniscan 450 Side Scan Sonar requires an Ethernet Switch for use on the BlueBoat.

Rs. 27,300.00
Rs. 27,300.00
Sale Sold out
SKU: BR-102295
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

This integration kit includes everything needed to install the Cerulean Omniscan 450 Side Scan Sonar on the BlueBoat. It’s included with the Omniscan when purchased from Blue Robotics, but is also available separately in case you get the sonar directly from Cerulean.

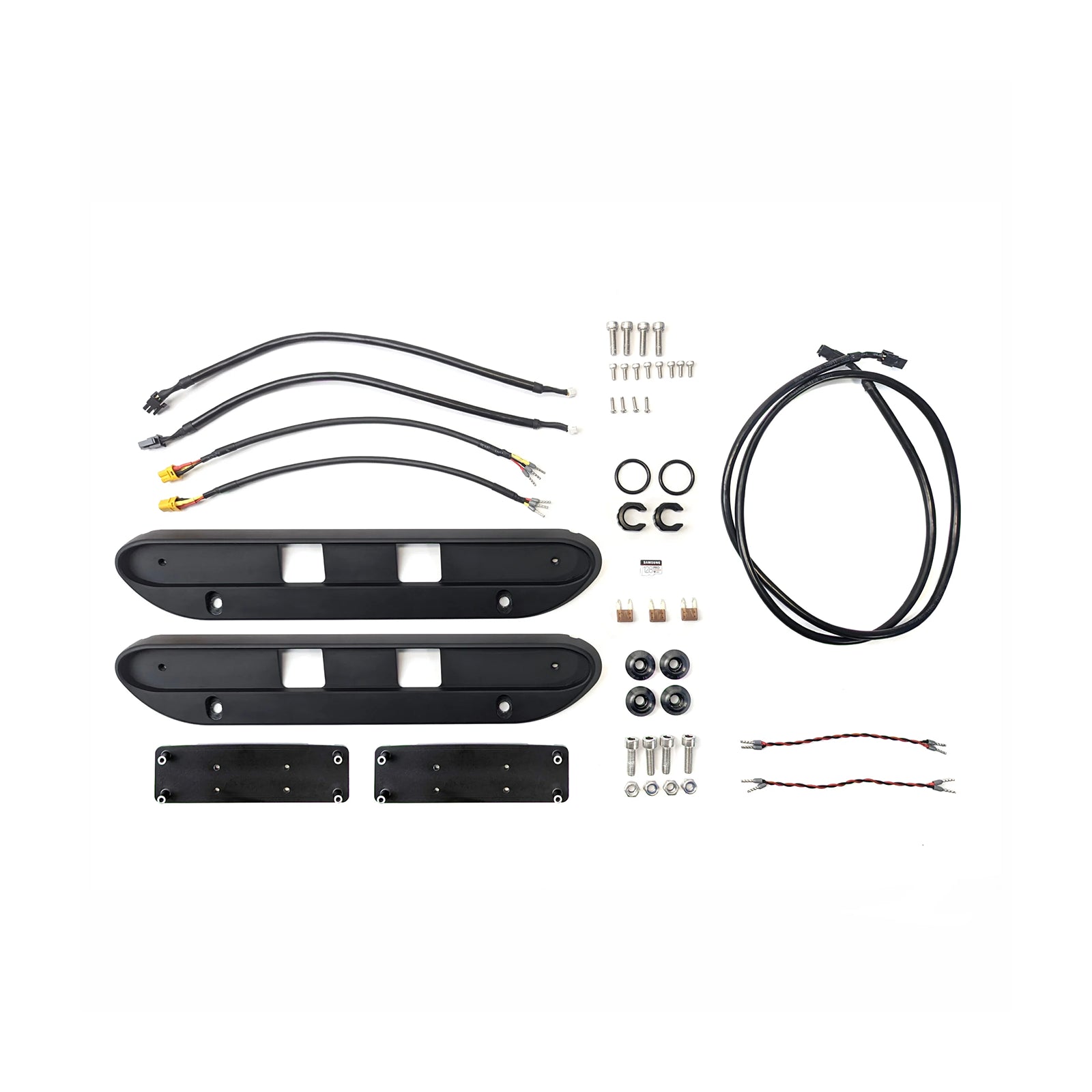

Included are two transducer mounts for the BlueBoat hull, two PCB mounts that fit the BlueBoat’s electronics tray, a few cables, and installation hardware. It also includes a 128 GB microSD card flashed with BlueOS, which gives you enough space to log large sonar data files.

  • 2 x Cerulean Omniscan 450 SS transducer bracket (BR-102204)
  • 2 x Aluminum PCB standoff (BR-102498)
  • 1 x BlueOS 128GB SD card for BlueBoat (BR-102293-002)
  • 1 x Micro-Fit Ethernet cable, 1.1 m (BR-102172)
  • 2 x Micro-Fit to JST GH cable, 0.32 m (BR-102122)
  • 2 x E-Tray transducer cable (BR-102212)
  • 2 x 2-position ferrules to ferrules power cable, 150 mm (BR-102196)
  • 3 x 5A Mini Blade fuse (BR-101401-005)
  • 4 x M5x18 socket head cap screw (BR-101191)
  • 4 x #3×3/8″ button head thread forming screw (BR-101031)
  • 8 x M3x8 socket head cap screw (BR-100989)
  • 8 x 8.5″ cable tie (BR-102154)
  • 4 x BlueBoat Hull Mount Bushing
  • 4 x M6x20 socket head cap screw (BR-102241)
  • 4 x M6 nylon insert lock nut (BR-101258)
  • 2 x -117 bulkhead O-ring (BR-100635-117)
  • 2 x M14 bulkhead nut (BR-100845)

Please refer to the Cerulean Omniscan 450 SS technical detailsbelow. Note that the Omniscan 450 SS transducers and PCBs are not included with this integration kit.

Parameter Value
Electrical
Supply Voltage10–30 V
Max Idle Power Consumption5 W
Max Power Consumption10 W
Acoustic
Transducer Frequency450 kHz
Range ResolutionUp to 1/1200 of range setting
Max Ping Rate20 pps (up to 30 m range) 1
Max Slant Range150 m
Far Field 215 m
Beam Width 30.5°
Beam Height50°
Communication
InterfacesEthernet
ProtocolProgramming API
Tools
Compatible Bulkhead WrenchBR-100977-014
Recommended Installation Torque3.5 Nm
Physical
Mount ThreadsM5×0.8
Through Hole Recommend Fastener DiameterM6
Recommended Thru Hole Diameter14.2 mm
Adapter ThreadM14×1.5
Adapter Thread Length25 mm
Bulkhead/Nut Wrench Flats16 mm
Adapter Wrench Flats28 mm
M14 Bulkhead Adapter O-ring SizeAS568-117 Buna-N 70A
M10 Bulkhead O-ring SizeAS568-013 Buna-N 70A
WetLink Penetrator SizeM10-4.5MM-HC
Bulkhead AdapterOversized M10 to M14
Depth Rating 50 m (with M14 adapter)
300 m (without M14 adapter)
Wetted Materials Buna-N Rubber
Molybden 111 Compound
7075-T6 Anodized Aluminum
Urethane Potting Compound
1 Thereafter limited by range and speed of sound. Examples: 10 pps @ 50m, 5 pps @ 140m range setting.
2 Far Field distance is the range beyond which the beam width specification is valid. At nearer distances the effective beam width gets wider, and sidelobes get larger.
3 This is the nominal theoretical 2-way (transmit and receive) 3dB beam width.
All specifications are available on the Cerulean Sonar site.
Cerulean Omniscan 450 SS Integration Kit - Drawing 1

8 October 2024

  • SD card updated to BlueOS 1.3.1

13 December 2023

  • BR-102295 - Initial release
