High-Temperature PUR Subsea Cable

High-Temperature PUR Subsea Cable

Ocean Robotix Pvt Ltd

Cable and Tethers

100 in stock

These cables are built specifically for use underwater and used in our products! A polyurethane jacket, PTFE tape, and FEP insulated conductors make for a rugged cable that can carry a lot of power. Sold by the meter (3.3 ft) and cut to length when you order.

Cable
Rs. 2,033.00
Rs. 2,033.00
Sale Sold out
SKU: BR-101093
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

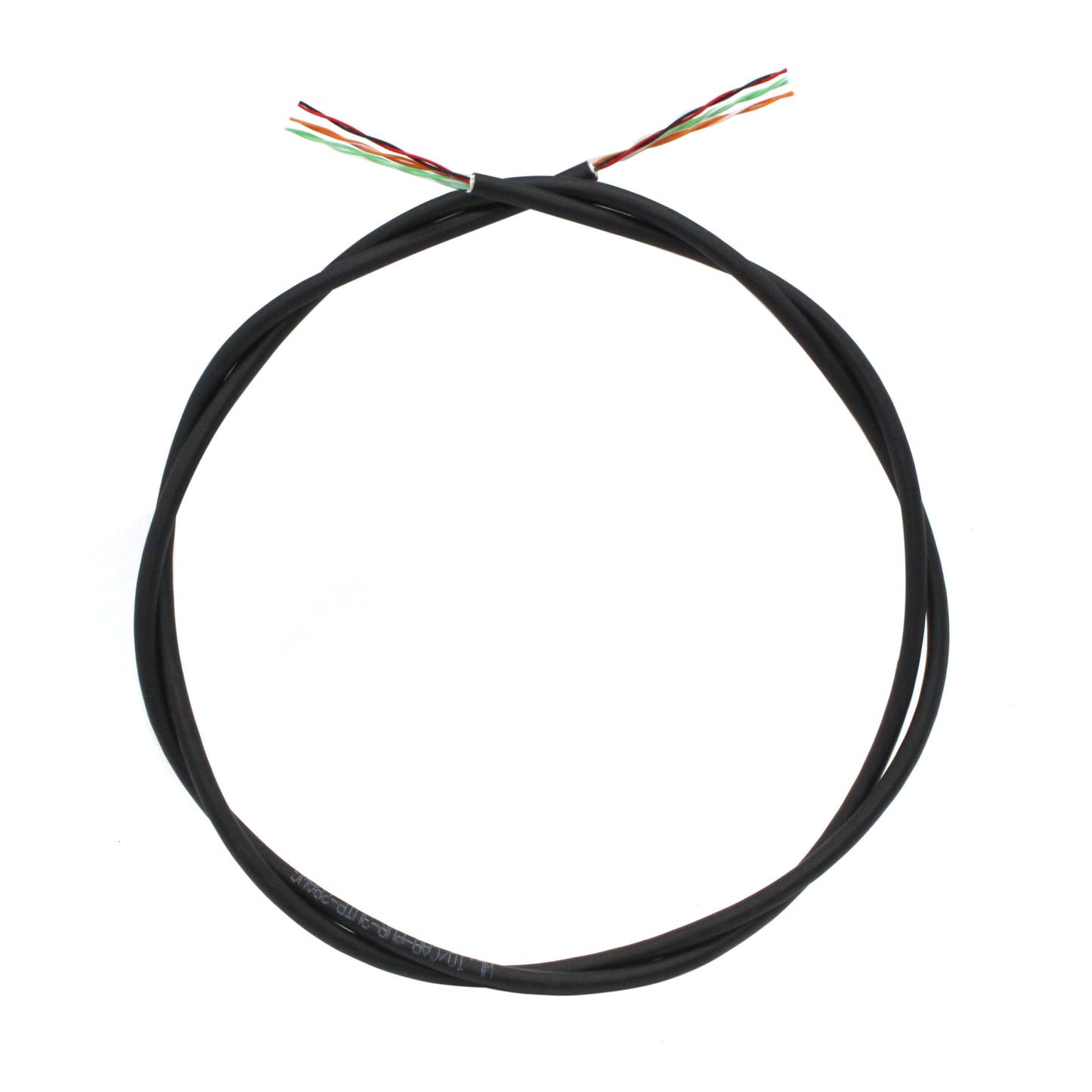

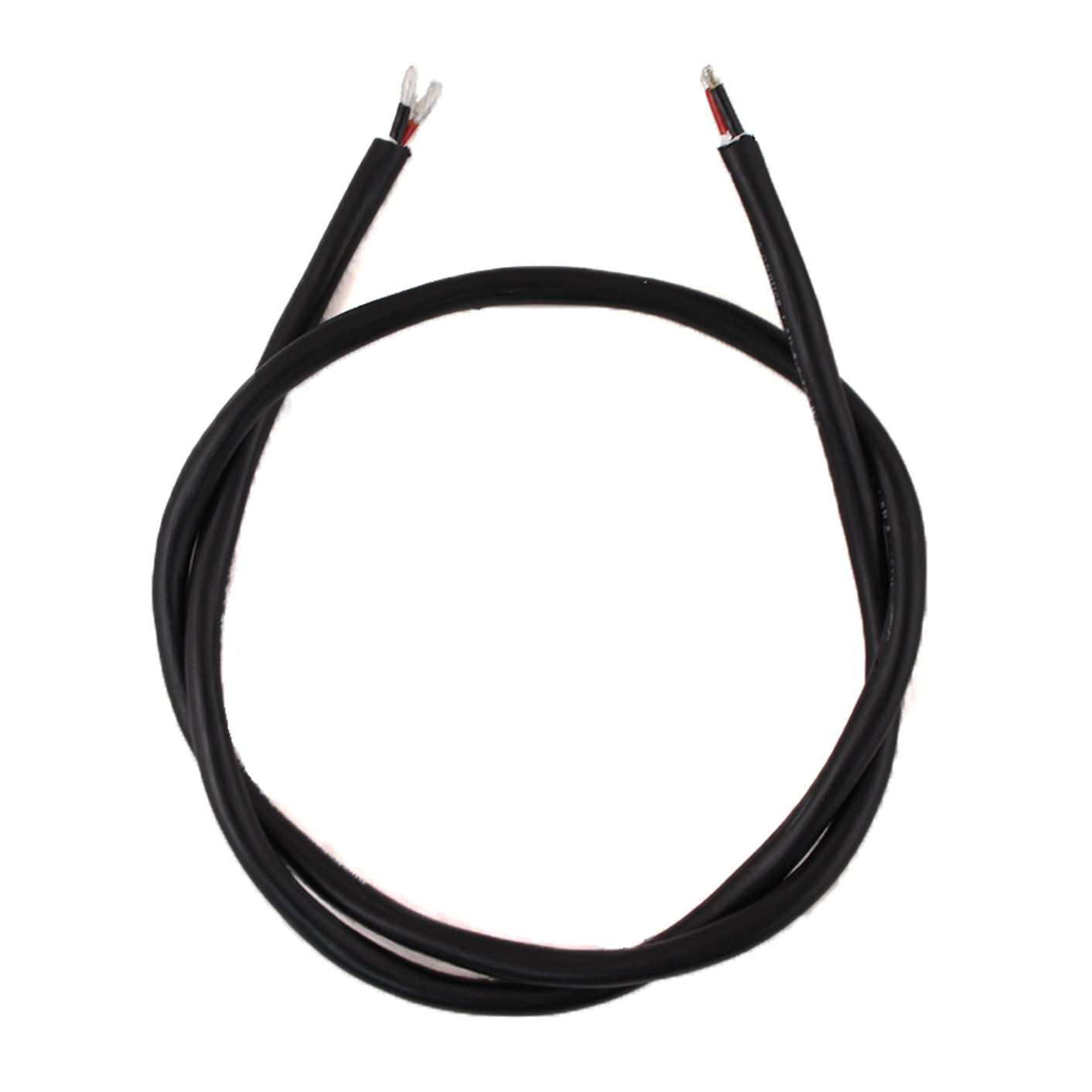

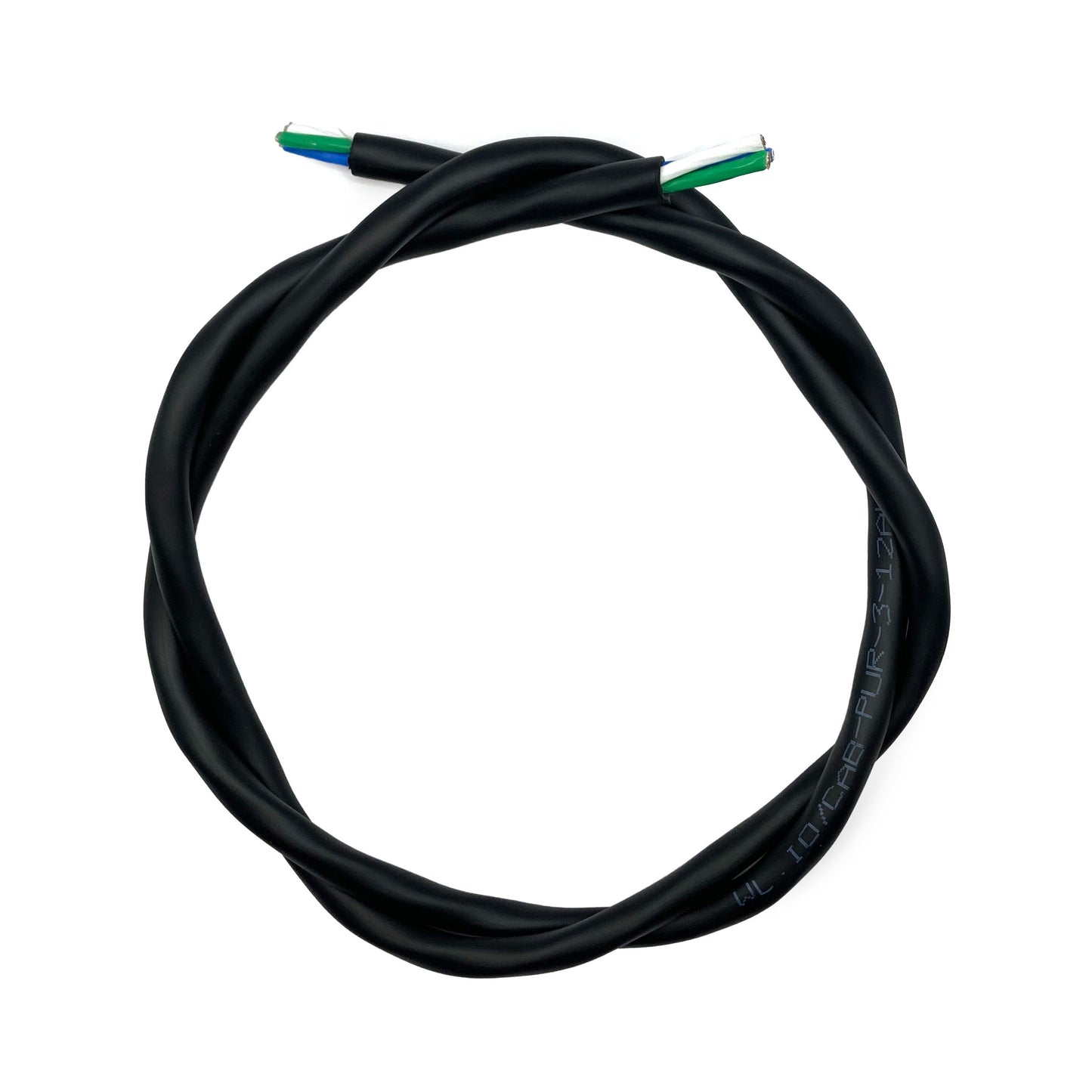

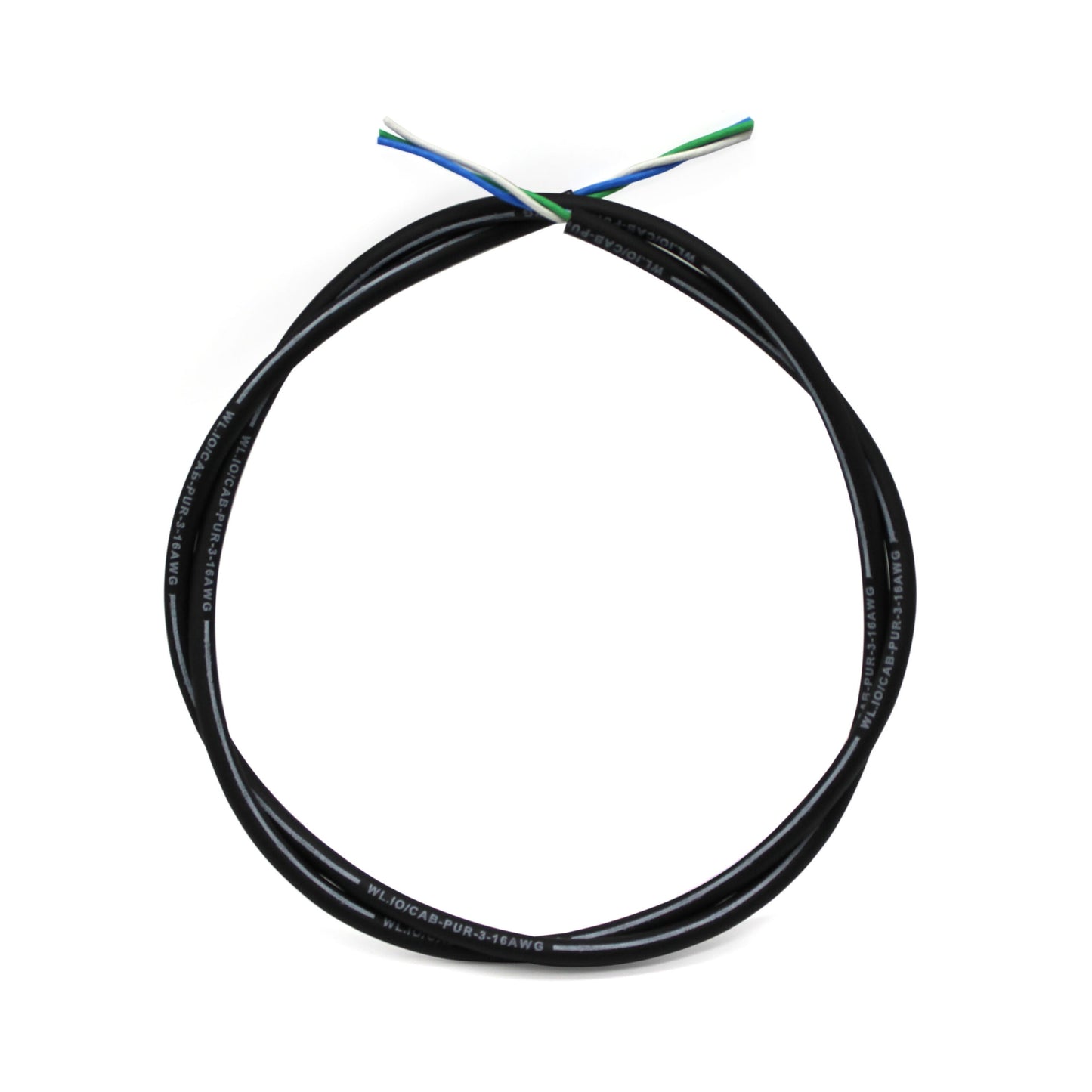

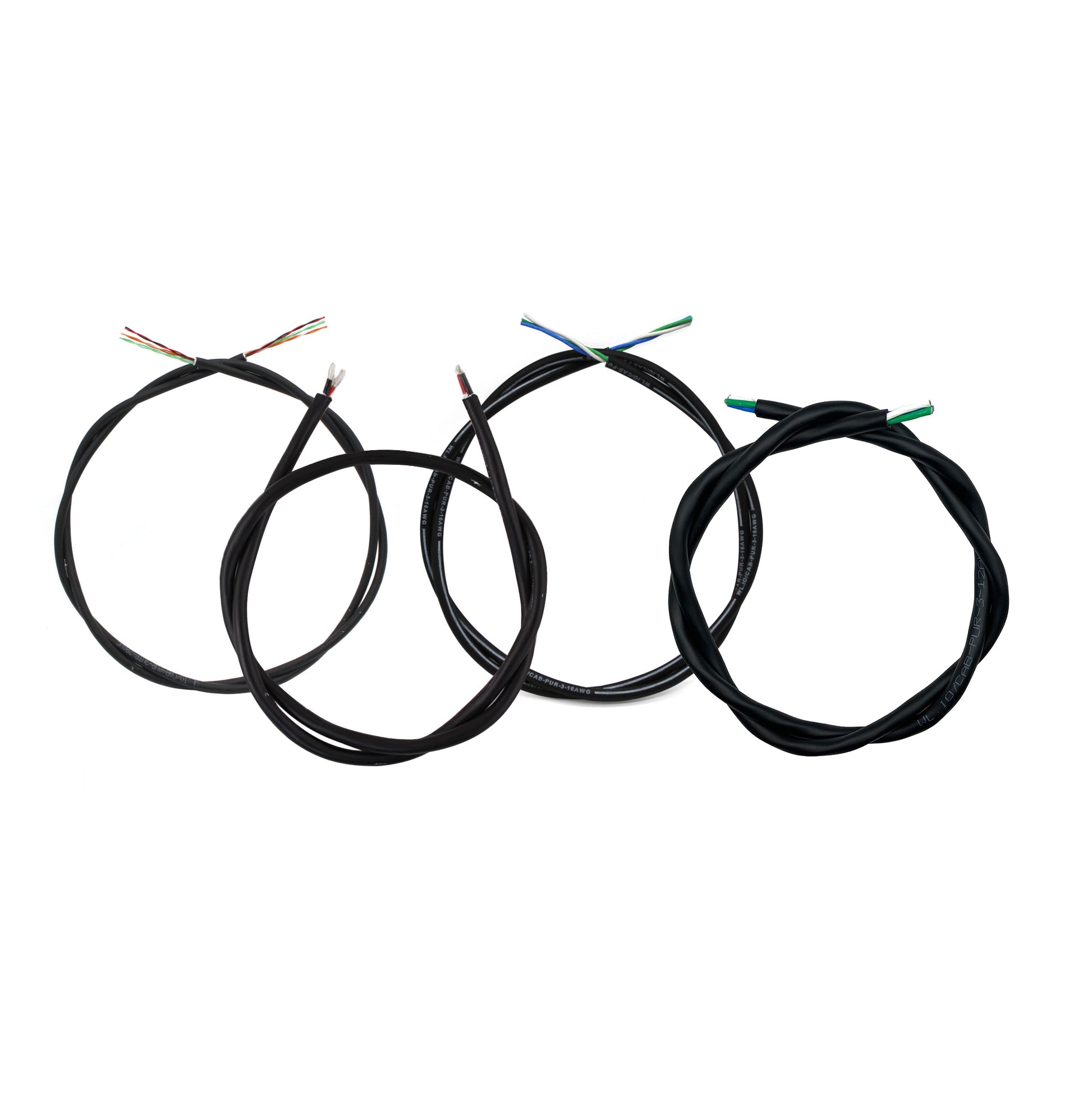

These cables are built for a wide range of subsea applications and designed to carry high currents underwater. The cables are custom made with a pressure-extruded polyurethane jacket, and flexible conductors. Each conductor is insulated with FEP, which can handle high temperatures without melting, and chemically etched to ensure excellent adhesion to potting compounds and glues. They’re really tough and abrasion resistant!

These cables are used in the T200 Thruster, T500 Thruster, the Ping360 Sonar, and in countless other applications!

  • 1x Selected cable with bare ends, cut to length
Specifications
Cable High Power Cable T200 Cable T500 Cable Ping360 Cable
Construction 2-conductors, tape wrap, jacket 3-conductors, tape wrap,
jacket		 3-conductors, fabric wrap,
jacket		 3-unshielded twisted pairs, tape wrap,
jacket
Diameter 8.3 mm 6.4 mm 9.0 mm 5.5 mm
Outer Jacket Pressure-extruded polyurethane Pressure-extruded polyurethane Pressure-extruded polyurethane Pressure-extruded polyurethane
Wrap PTFE tape PTFE tape Nonwoven fabric PTFE tape
Filler - - - -
Number of Conductors 2 3 3 6
Conductor Gauge 12 AWG 16 AWG 12 AWG 26 AWG
Conductor Insulation FEP FEP FEP FEP
Conductor Insulation Colors Red, black White, green, blue White, green, blue black, red
orange, orange/white
green, green/white
Static Minimum Bend
Radius		 26 mm 18 mm 30 mm 20 mm
Compatible WetLink
Penetrator		 M10-8.5mm-LC M10-6.5mm-LC M14-9.5mm-HC M10-5.5MM-LC

15 July 2025

  • BR-101529, Ping360 Cable – Initial release
    * Cable diameter increased from 4.7 mm to 5.5 mm
    * Conductor gauge increased from 28 AWG to 26 AWG
  • BR-100614, Ping360 Cable – Retired

18 July 2023

  • CAB-PUR-3UTP-28AWG-R2 SKU changed to BR-100614
  • CAB-PUR-3-12AWG-R1 SKU changed to BR-100235
  • CAB-A-2-12AWG-R1 SKU changed to BR-101093

6 April 2023

  • CAB-PUR-3-16AWG-R2 SKU changed to BR-100997

16 September 2022

  • CAB-PUR-3-12AWG-R1 – Initial release

2 December 2021

  • CAB-PUR-3UTP-28AWG-R2 – Initial release

12 February 2021

  • CAB-PUR-3-16AWG-R2 – Initial release

3 June 2016

  • CAB-A-2-12AWG-R1 – Initial release
