Product Description

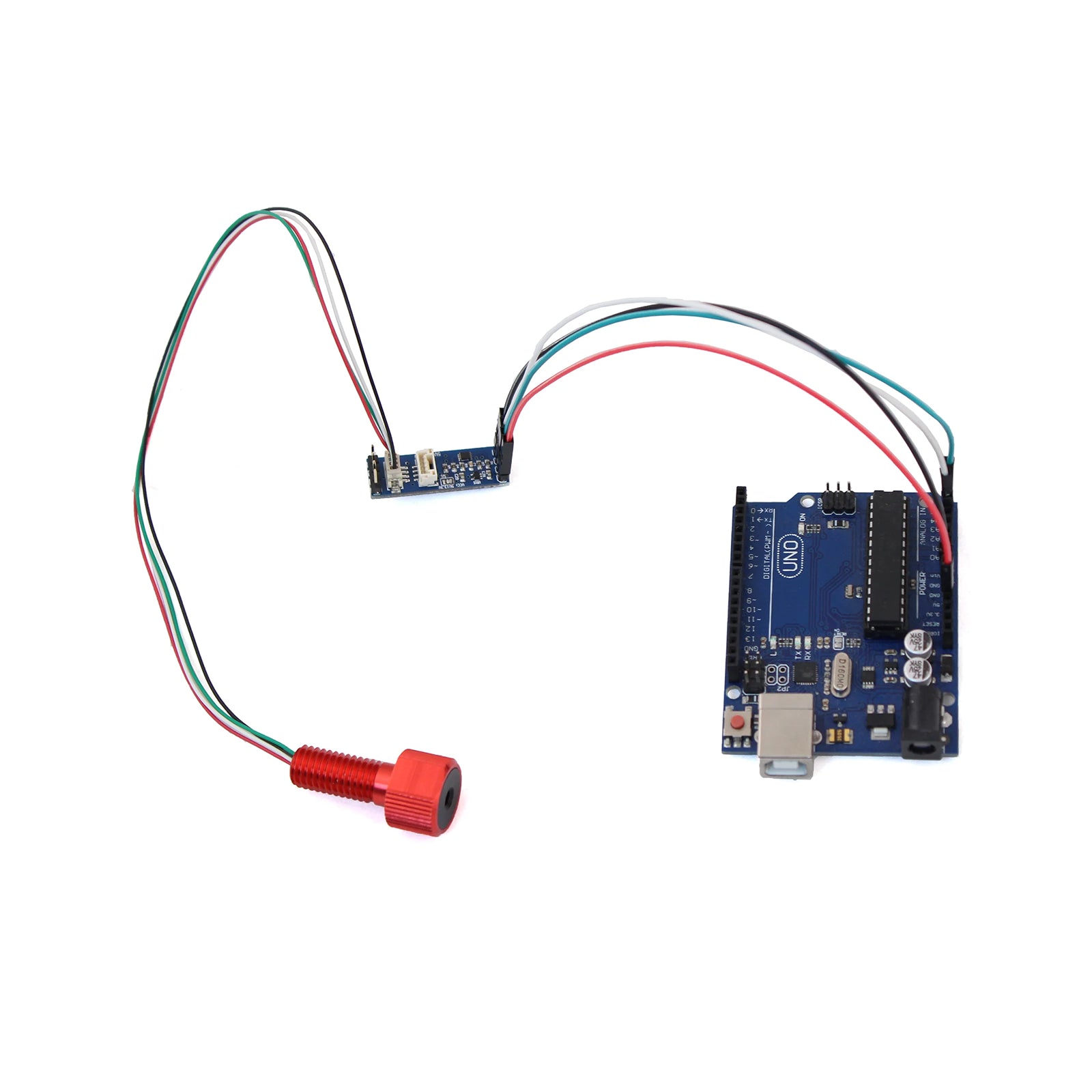

The I2C Level Converter allows you the run 3.3v logic sensors like the Bar30 or Celsius and other accessories off of a 5v logic device like the Arduino Uno!

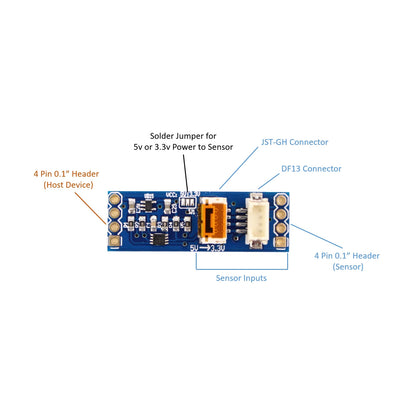

A selectable solder jumper lets you run 5v or 3.3v power to your sensor, independent of the 3.3v I2C logic. Built in four pin DF13, Dronecode Mini standard JST-GH, and 0.1″ header pin connectors provide maximum flexibility and ease of use.
| Parameter | Value |
|---|---|
| Operating Voltage | 3.3 V–5V |
| Max Current @ 3.3V Vout | 150 mA |
| Output Connector | 4 pin 0.1” header |
| Input Connector | 4 pin 0.1” header + JST GH + DF13 |
