Product Description
Want everybody to know you have a cool USV??? Add the NavLight to be sure to catch their eye!

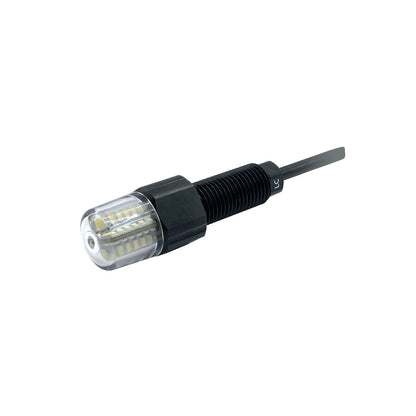

The NavLight is a high-brightness LED light designed to make USVs, buoys, and other marine craft visible from a long distance. It’s extremely compact with a G4 bulb in an M14 penetrator form factor.
The light runs on 5-12 V, draws up to 2.5 W of power, and outputs approximately 180 lumens of light. Internal circuitry allows it to be controlled by an input signal from a microcontroller like an Arduino or the Navigator Flight Controller so you can turn the light on and off or create flashing signals. If you don’t have a control device, simply connect the input signal to power to turn the light on.
The Navigation Light can also be used in subsea applications and has a 1,000 meter depth rating when installed on an end cap or when coupled with a WetLink Penetrator installed on the end of the cable. That allows you to mount it anywhere on your vehicle—it’s not restricted to use on an enclosure end cap.

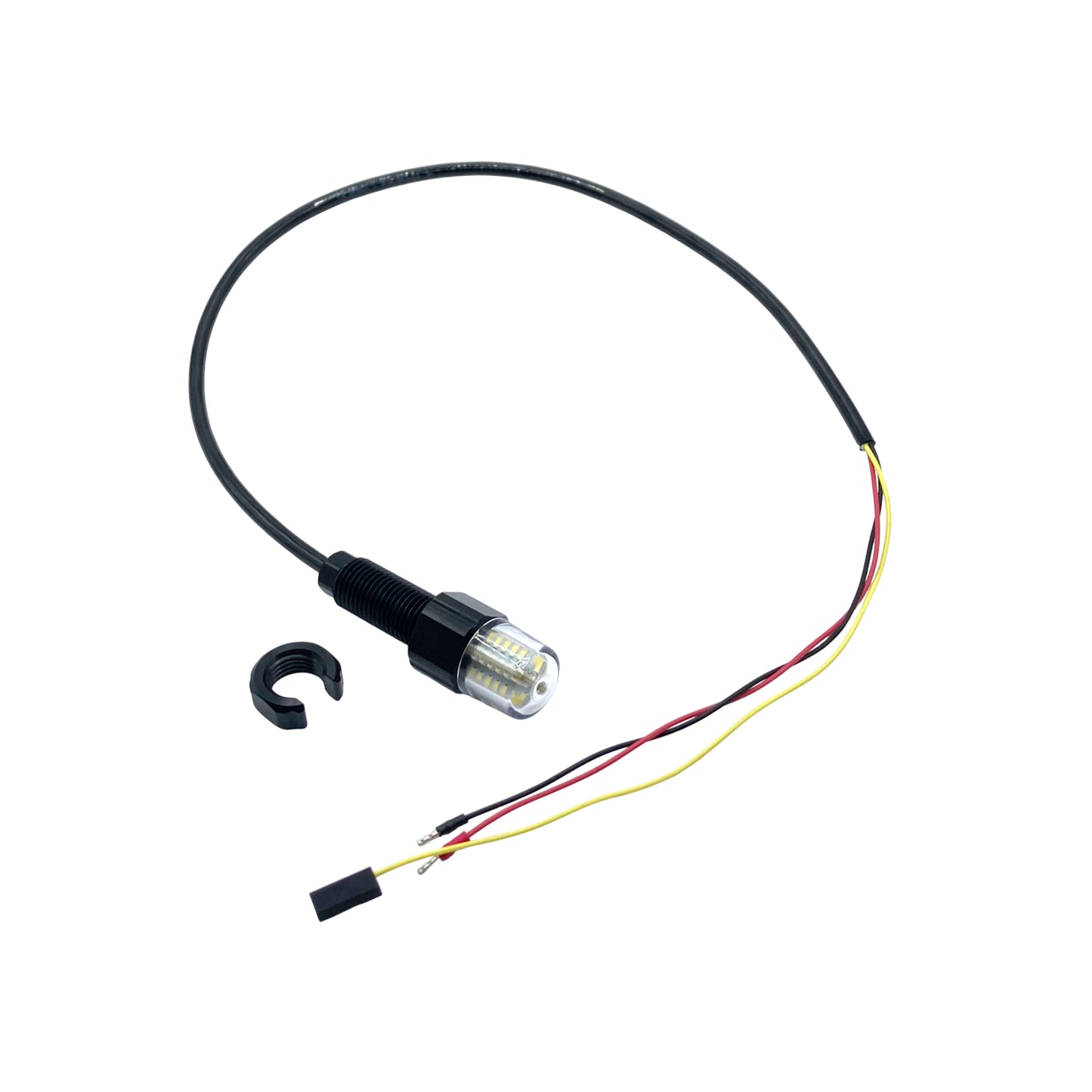

The light comes with a 60 cm cable length and O-ring and nut for installation. Check out the usage guide for more details.
| Parameter | Value | |
|---|---|---|
| Performance | ||
| Maximum Rated Depth (seawater) | 1000 m | 3281 ft |
| Design Lifetime* | 3 years or 500 cycles to rated depth | |
| Temperature Rating (air) | -25 to 60°C | -13 to 140°F |
| Temperature Rating (water) | 0 to 40°C | 32 to 104°F |
| Electrical | ||
| Supply Voltage† (Vin) | 5–12 V | |
| Power Draw | 2.5 W | |
| Default Mode | Normally on | |
| Signal Protocol | To turn light off, pull signal (yellow) wire to ground | |
| Signal Max Voltage Input | 1 V | |
| Signal Max Current Output | 1.1 mA | |
| Light | ||
| Lumens‡ | 180 lm | |
| Color Temperature | 6000K | |
| Cables and Connectors | ||
| Cable Length | 400 mm (jacket) 590 mm (red, black conductor) 620 mm (yellow conductor) | |
| Connectors | Red (positive): 22 AWG ferrule Black (negative): 22 AWG ferrule Yellow (signal): 3 position 0.1" header | |
| Cable Used | ||
| Compatible WetLink Penetrator (cable end) | M06-4.5mm-LC M10-4.5mm-LC | |
| Tools | ||
| Compatible Bulkhead Wrench | BR-100977-014 | |
| Recommended Installation Torque | 3.5 Nm | |

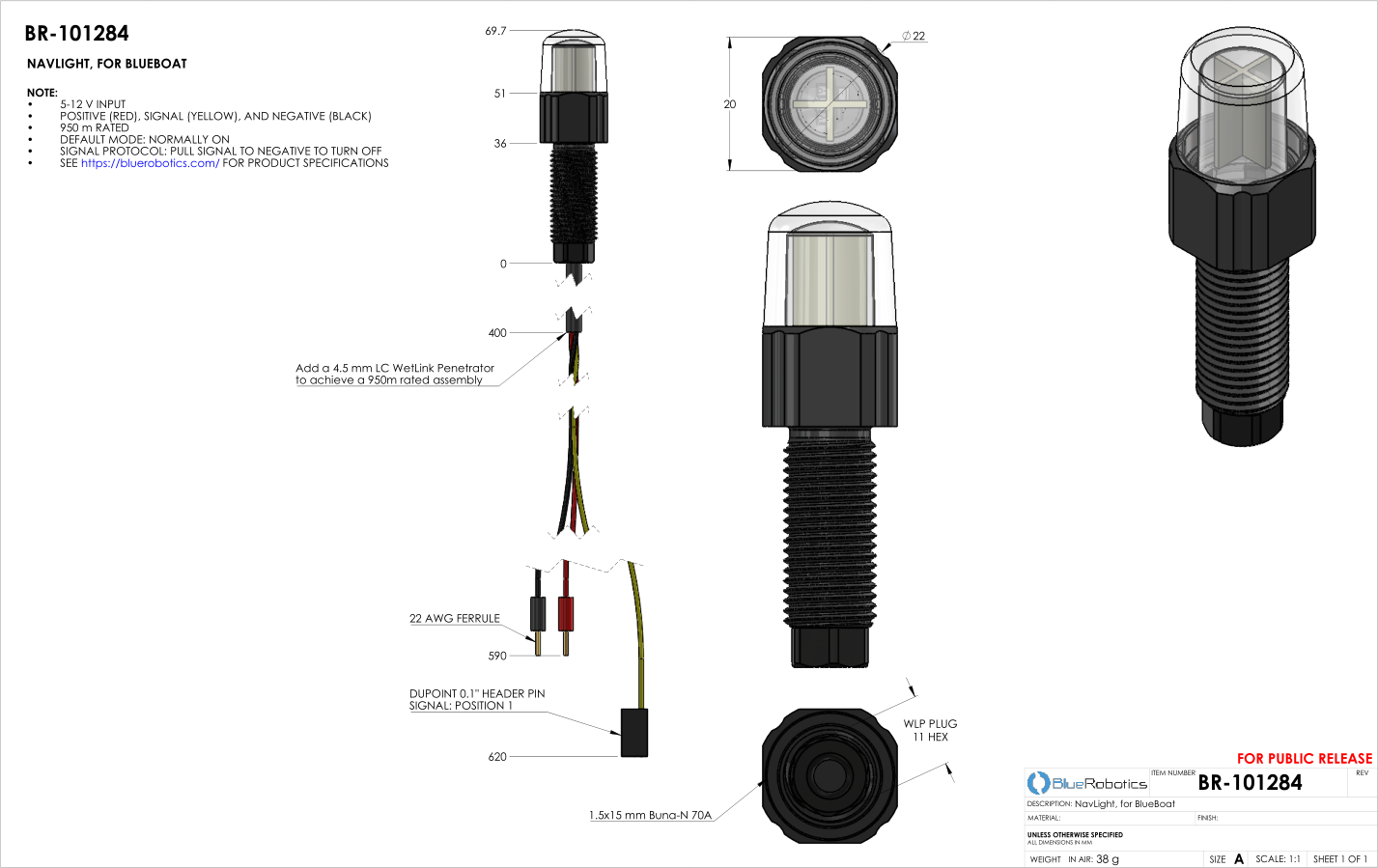

| Physical | ||
| Recommended Thru Hole Diameter | 14.2 mm | |
| Bulkhead Thread | M14 x 1.5 | |
| Bulkhead Thread Length | 30 mm | |
| Bulkhead Nut Wrench Flats | 20 mm | |
| Overall Assembled Height From Endcap | 33.7 mm | |
| Overall Outer Diameter | 22 mm | |
| Bulkhead/Lens O-ring Size | 1.5mm x1 mm Buna N 70A | |
| Bulkhead Plug Material | Aluminum 7075-T6, type III anodized | |
| Wetted Materials | Buna-N Rubber Molykote 111 Compound Aluminum 7075-T6, type III anodized UV Stabilized Polycarbonate | |
| In Air Weight (no nut) | 38 g | 1.34 oz |
†Light functions up to 6-25.2V but signal will not function correctly after 12V.
‡In the horizontal plane.
