PCB for Bar Depth/Pressure Sensors

PCB for Bar Depth/Pressure Sensors

Ocean Robotix Pvt Ltd

PCB for Bar Depth/Pressure Sensors

100 in stock

These are the board-level versions of ourBar Depth and Pressure Sensors. They’re basically the pressure sensor on a PCB with solder pads for the data and power connections—perfect for tight integration into projects.

PCB type
Rs. 4,410.00
Rs. 4,410.00
Sale Sold out
SKU: BR-100999
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

These are the board-level versions of our Bar Depth and Pressure Sensors for tight integration into projects.

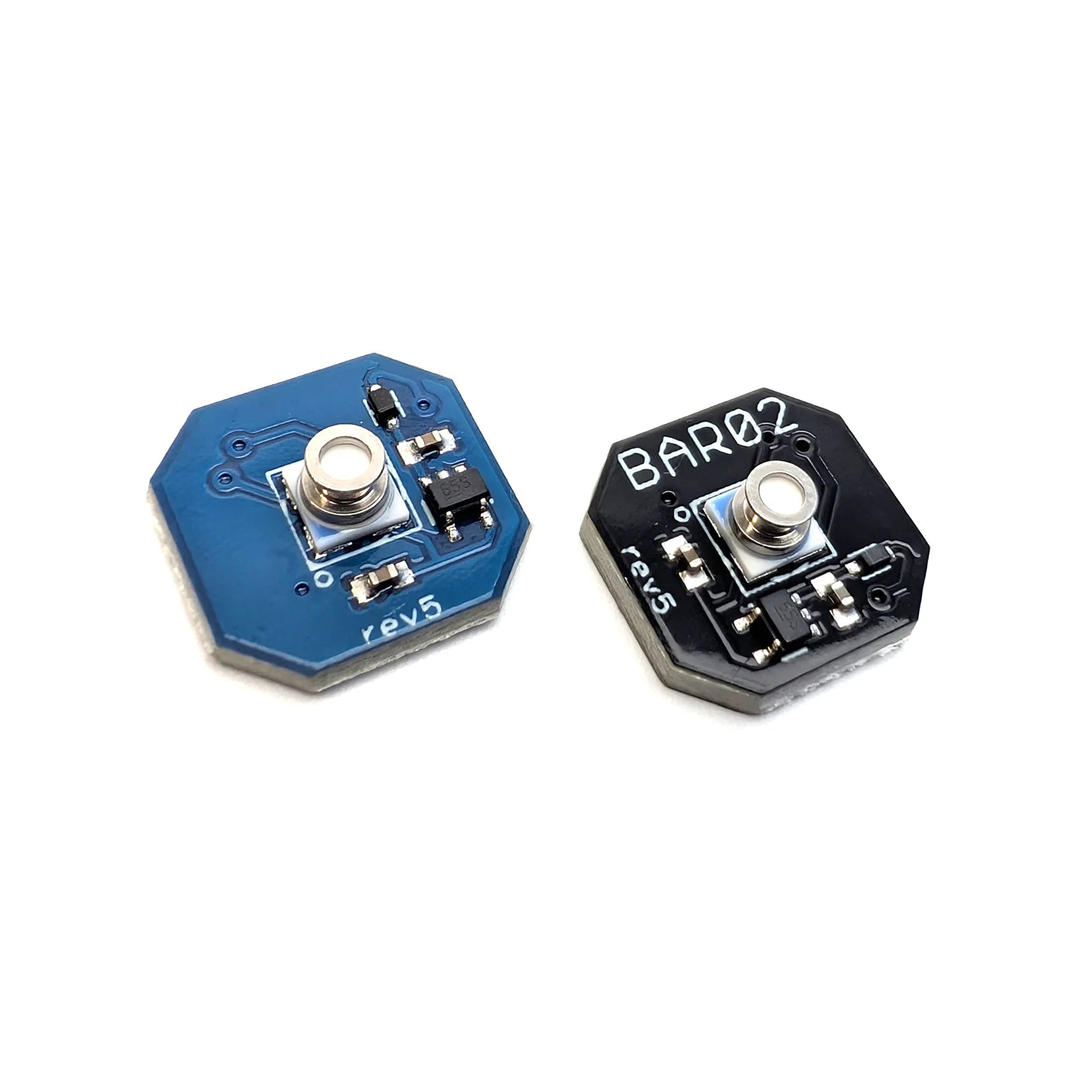

There are two models:

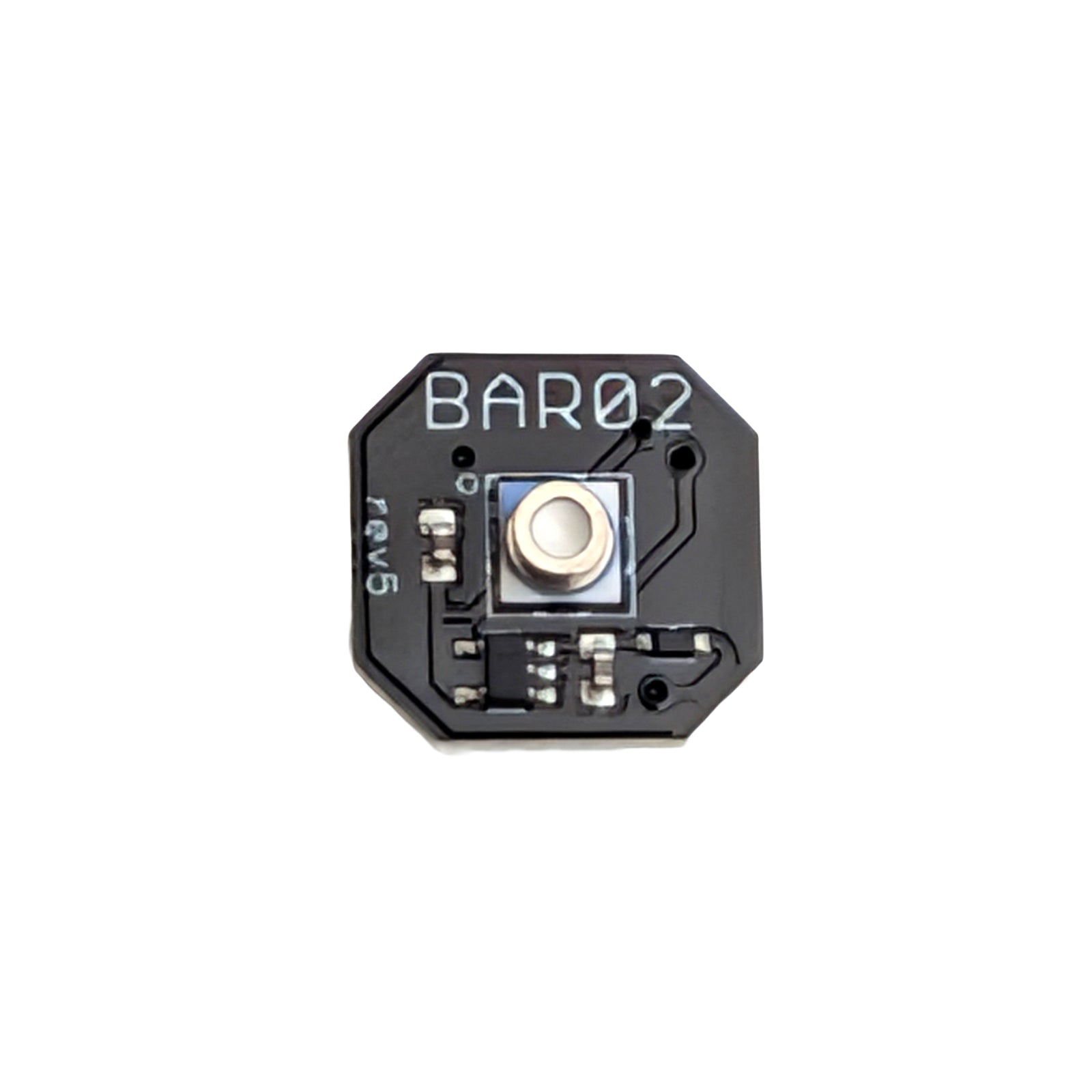

The Bar02 is a low-pressure, ultra-high resolution sensor using the Measurement Specialties MS5837-02BA. It measures up to 2 bar (about 10 meters water depth) with a depth resolution of just 0.16 mm and can also measure in-air altitude with 13 cm resolution. This makes it ideal for shallow-water devices where a high level of resolution is required. It includes a temperature sensor accurate to ±2 °C and is supported in ArduSub 4.7 and later.

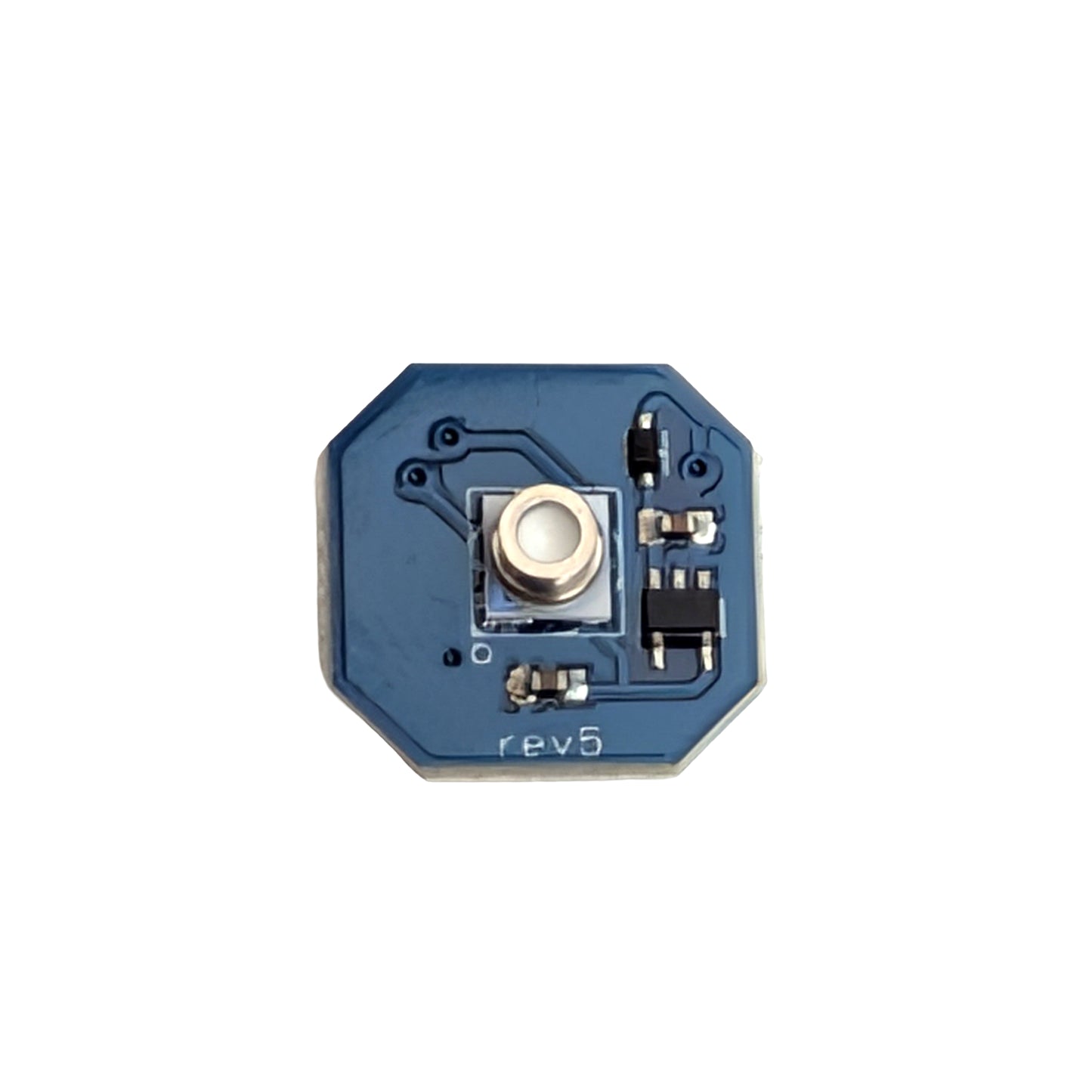

The Bar30 is a high-pressure sensor using the Measurement Specialties MS5837-30BA. It measures up to 30 bar (about 300 meters water depth) with a depth resolution of 2 mm, making it a great choice for deep-water ROVs and general underwater instrumentation. The built-in temperature sensor has ±4 °C accuracy, and is supported by ArduSub and other ArduPilot firmware.

Both communicate via I²C and operate on 3.3 V logic (with 5.5 V max power input). The PCB includes four solder pads for ground, 2.5–5.5 V power, and 3.3 V I2C connections.

  • 1 x Bar PCB only
Model Bar02 Bar30
Electrical
Supply Voltage (Vin) 2.5–5.5 V
I²C Logic Voltage (SDA and SCL) 2.5–3.6 V
Peak Current 1.25 mA
Performance
In Air Operating Temperature -20 to 85°C
In Water Operating Temperature 2 to 40°C
Maximum Mechanical Pressure1 10 bar 50 bar
Operating Pressure (-20 to 85 °C) 0.3–1.2 bar
0.01–2 bar (extended) 		0–30 bar
Operating Depth2 0–10 m 0–295.6 m
Relative Accuracy 0 to 60°C: ± 2 mbar (2 cm in fresh water)
-20 to 85°C: ± 4 mbar (4 cm in fresh water)3
Absolute Accuracy – 0 to 45°C: ±200 mbar (204 cm in fresh water)
-20 to 85°C: ± 400 mbar (409 cm in fresh water)
Resolution .016 mbar (.16 mm in fresh water, 13cm in air at sea level) .2 mbar (2 mm in fresh water)
Temperature Sensor Relative Accuracy ± 2°C
Temperature Sensor Absolute Accuracy – ± 4°C
Physical
Storage Temperature
Maximum Continuous Submersion4 24 hrs
Interfacing
ArduSub Compatible Yes (>= 4.7) Yes
Development Libraries MS5837 Arduino
MS5837 Python
MS5xxx ArduPilot
I²C Address
0x76

1 Maximum mechanical pressure is the highest pressure the sensor can withstand before sustaining permanent damage.
2 Depth values assume 1 bar atmospheric pressure and freshwater density (1000 kg/m³); actual values may vary.
3 Applies only to standard pressure range; see MS5837-02BA datasheet for extended.
4 Dry the sensor daily for 2 hours to maintain accuracy; long-term submersion may cause damage.

18 July 2023

  • BAR02-SENSOR-PCB-R1 SKU changed to BR-100999
  • BAR30-SENSOR-PCB-R1 SKU changed to BR-100747

20 April 2018

  • BAR02-SENSOR-PCB-R1 – Initial release

26 January 2016

  • BAR30-SENSOR-PCB-R1 – Initial release
