Product Description

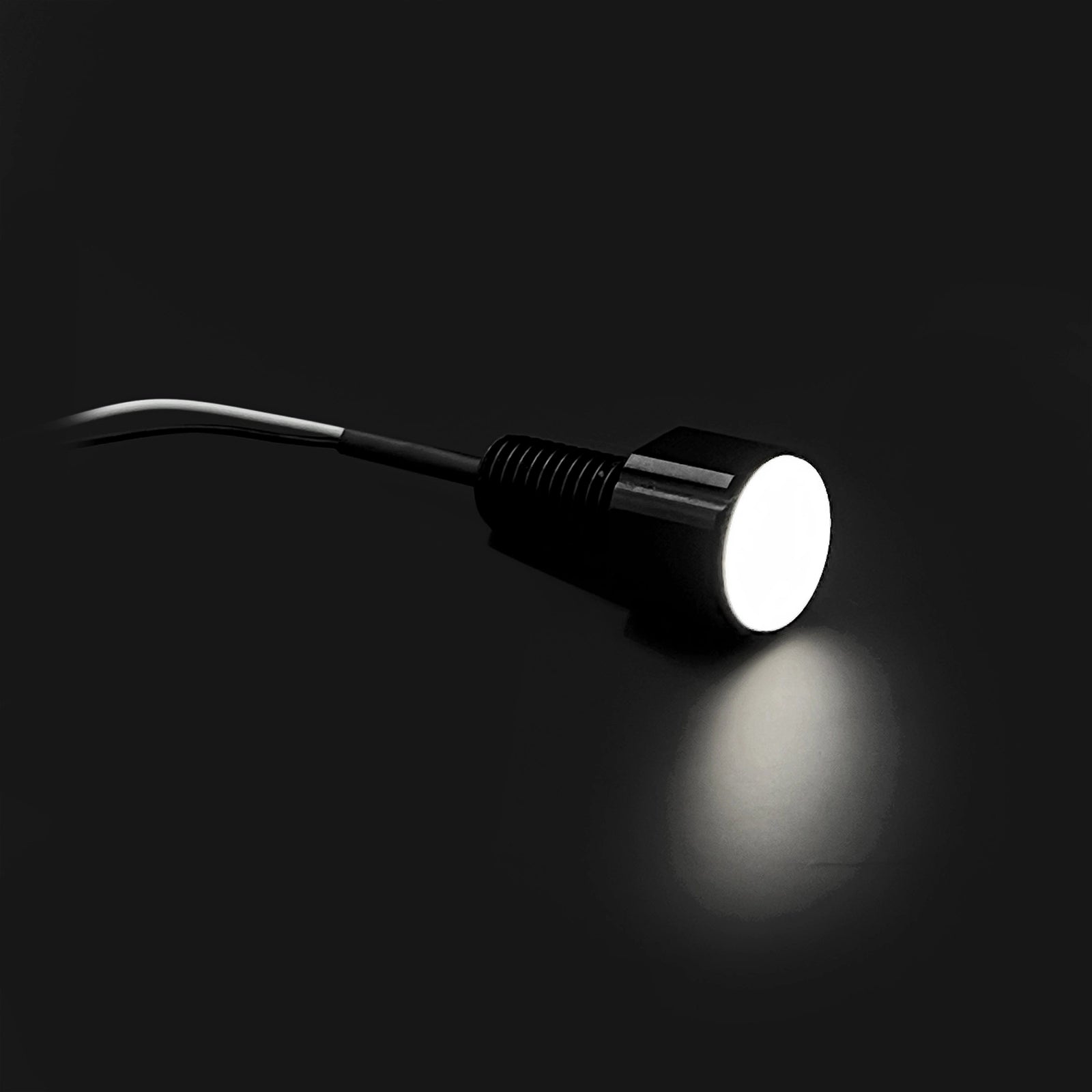

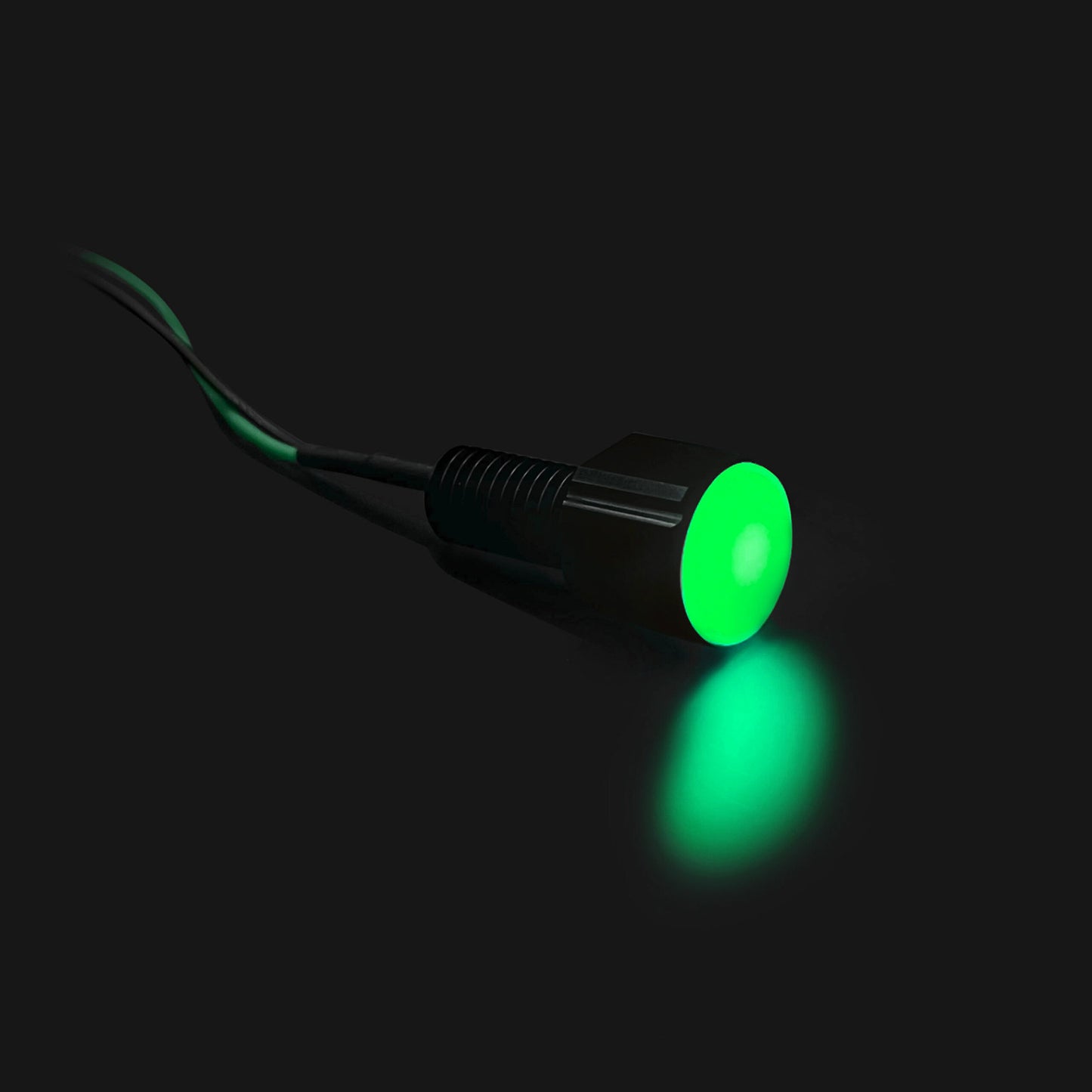

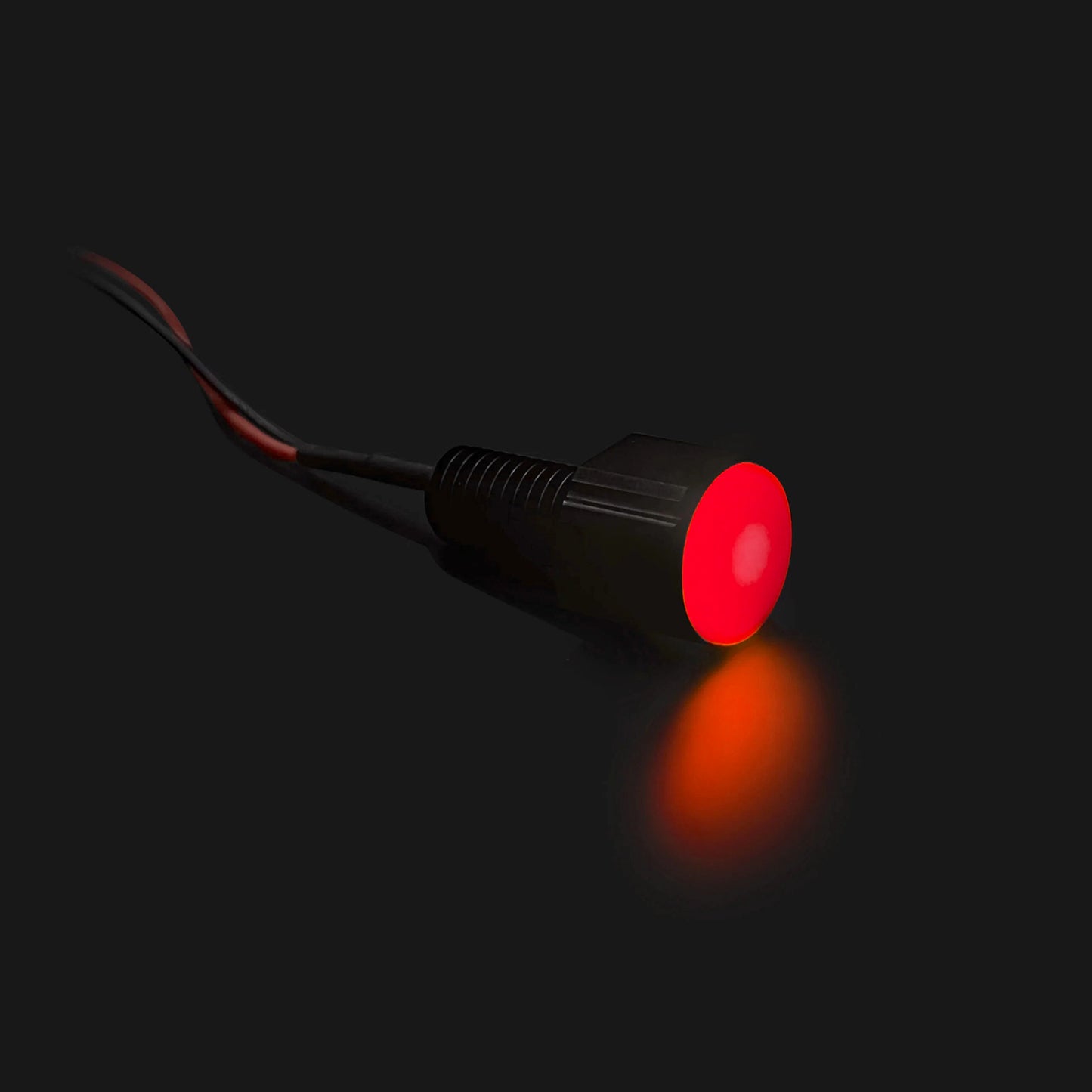

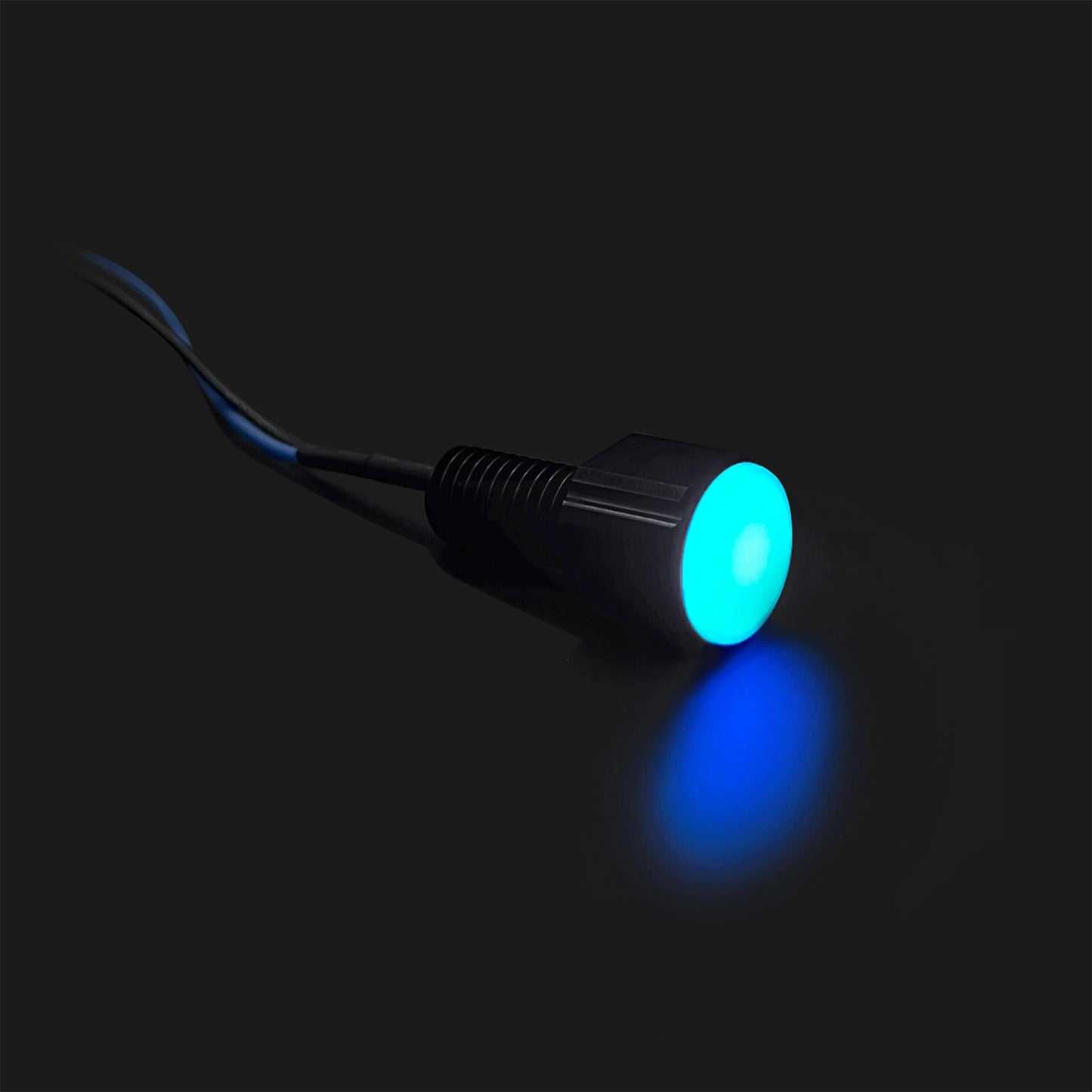

The Subsea LED Indicator is a simple LED light with high pressure capability! It comes in a penetrator form factor for easy installation on any of our Watertight Enclosures and it comes in four colors: white, blue, green, and red! It operates on 3-18V and each light draws up to 30mA when used at 18V. A built in resistor makes it easy to use without any additional parts.
The indicator light body is made of anodized aluminum. A plastic diffuser cap on the front creates a gentle glow and makes the light visible from any angle.
The Subsea LED Indicator can be used to provide status information about anything built into a watertight enclosure. Here are a few examples:
- Use it as a power on/off indicator on the BlueROV2 or other device (especially when using aluminum tubes)
- Install a few different colors on an underwater sensor enclosure to show status or errors
- Use it as a waterproof indicator light on an unmanned surface vessel
- Create an underwater light display!

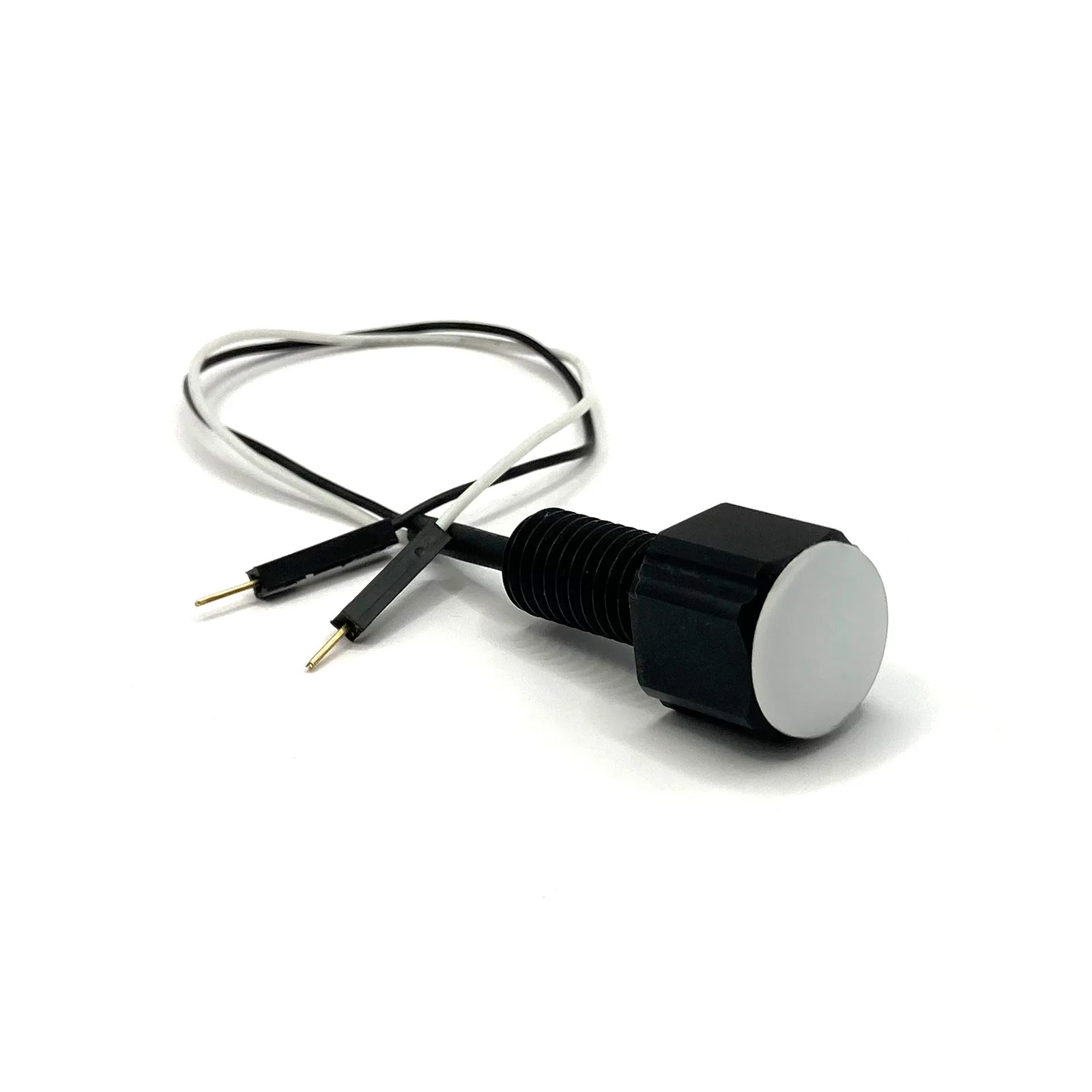

It comes with two male header pins (0.1″) preinstalled to make it easy to connect to an Arduino or other electronic device.
| Parameter | Value | |
|---|---|---|
| Performance | ||
| Maximum Rated Depth (seawater) | 1000 m | 3116 ft |
| Tools | ||
| Compatible Bulkhead Wrench | BR-100977-010 | |
| Recommended Installation Torque | 3.5 N·m | |
| Electrical | ||
| Supply Voltage (Vin) |
Blue, Green, White Indicator: 3–18 VDC Red Indicator: 3–30 VDC |
|
| Maximum Current |
Blue, Green, White Indicator: 30 mA Red Indicator: 50 mA |
|
| Cables and Connectors | ||
| Wire Length | 180 mm | |
| Connectors | Single 0.1" Male Header Pins | |
| Wires |
Black - Ground Blue/Green/Red/White - Power |
|

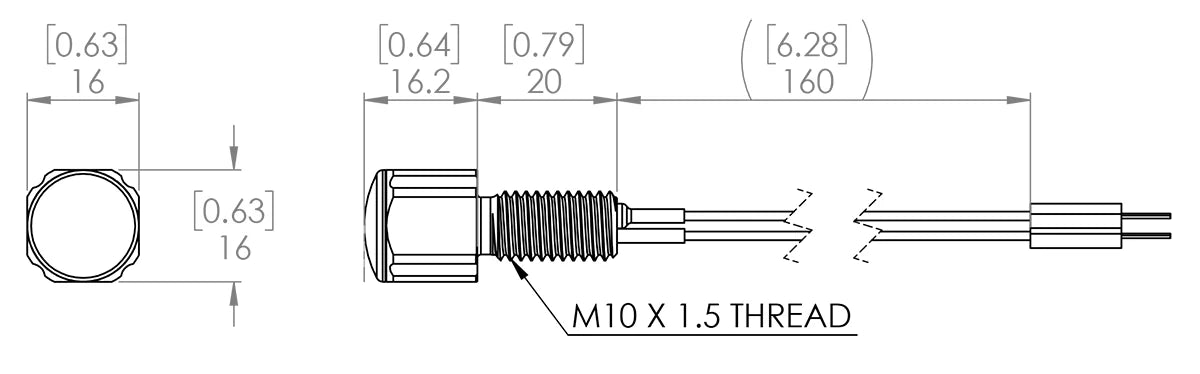

| Physical | ||
| Recommended Thru Hole Diameter | 10.2 mm | |
| Bulkhead Thread | M10 x 1.5 | |
| Bulkhead Thread Length | 20 mm | |
| Bulkhead/Nut Wrench Flats | 16 mm | |
| Overall Assembled Height From Endcap | 16.2 mm | |
| Overall Outer Diameter | 18 mm | |
| Bulkhead O-ring Size | AS568-013 Buna-N 70A | |
| Bulkhead Material | Aluminum 7075-T6, type III anodized | |
| Wetted Materials |
Aluminum 7075-T6 Buna-N Rubber Molykote 111 Compound Polycarbonate |
|
| In Air Weight (No Nut) | 8 g | |
| In Water Weight (No Nut) | 4.6 g | |
