Switch

Switch

Ocean Robotix Pvt Ltd

Switch

Low stock: 10 left

This switch allows you to turn a circuit on and off inside awatertight enclosurewithout needing to open it! Handles up to 5A.

Rs. 2,940.00
Rs. 2,940.00
Sale Sold out
SKU: SKU: BR-100433
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

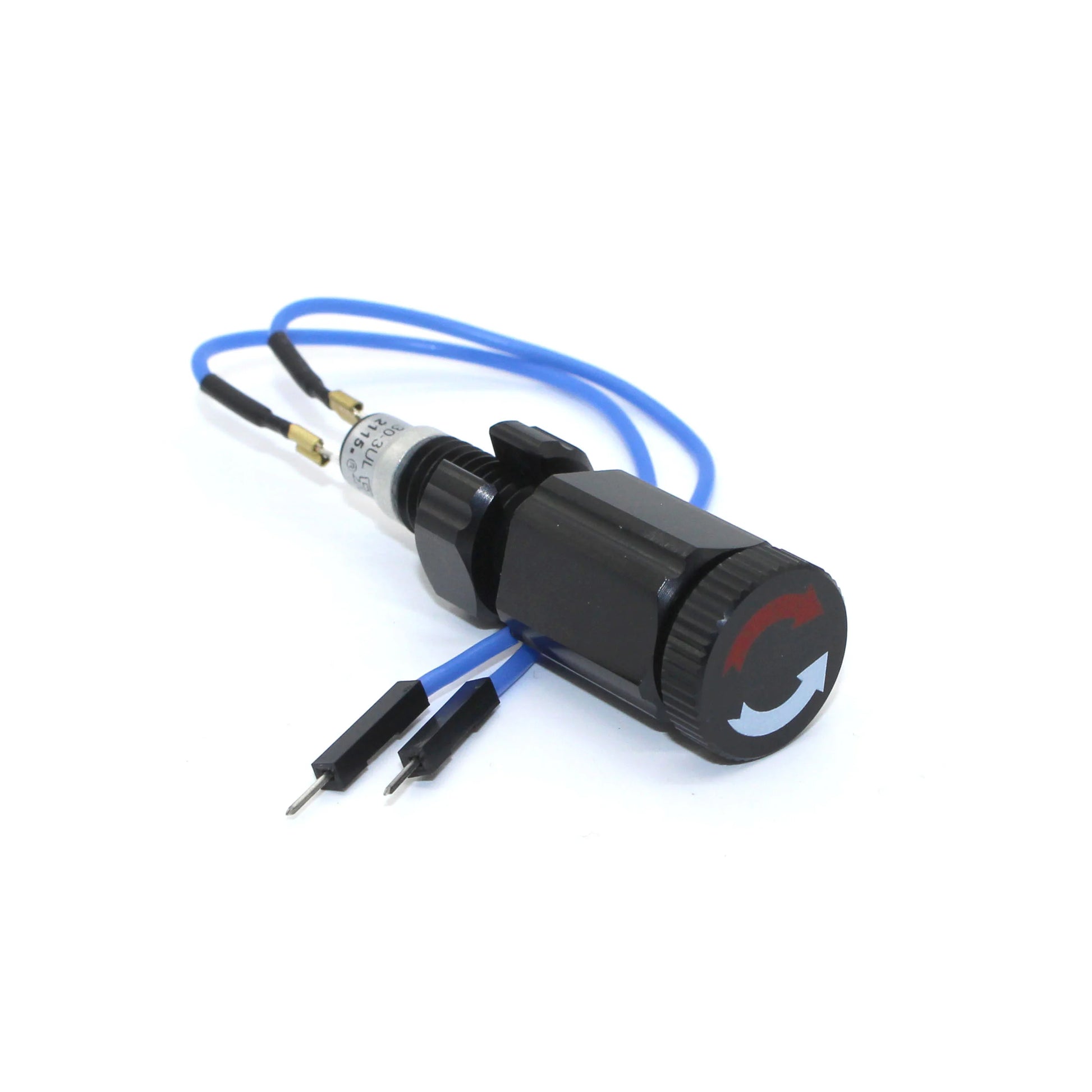

This switch allows you to turn a circuit on and off inside a watertight Enclosure  without needing to open it! Handling up to 5A of current and 120V AC or 26V DC, you can use it to directly operate low power circuits or interact with a microcontroller to provide input for the operation of your vehicle.

This design is rated to 1000 meters water depth.

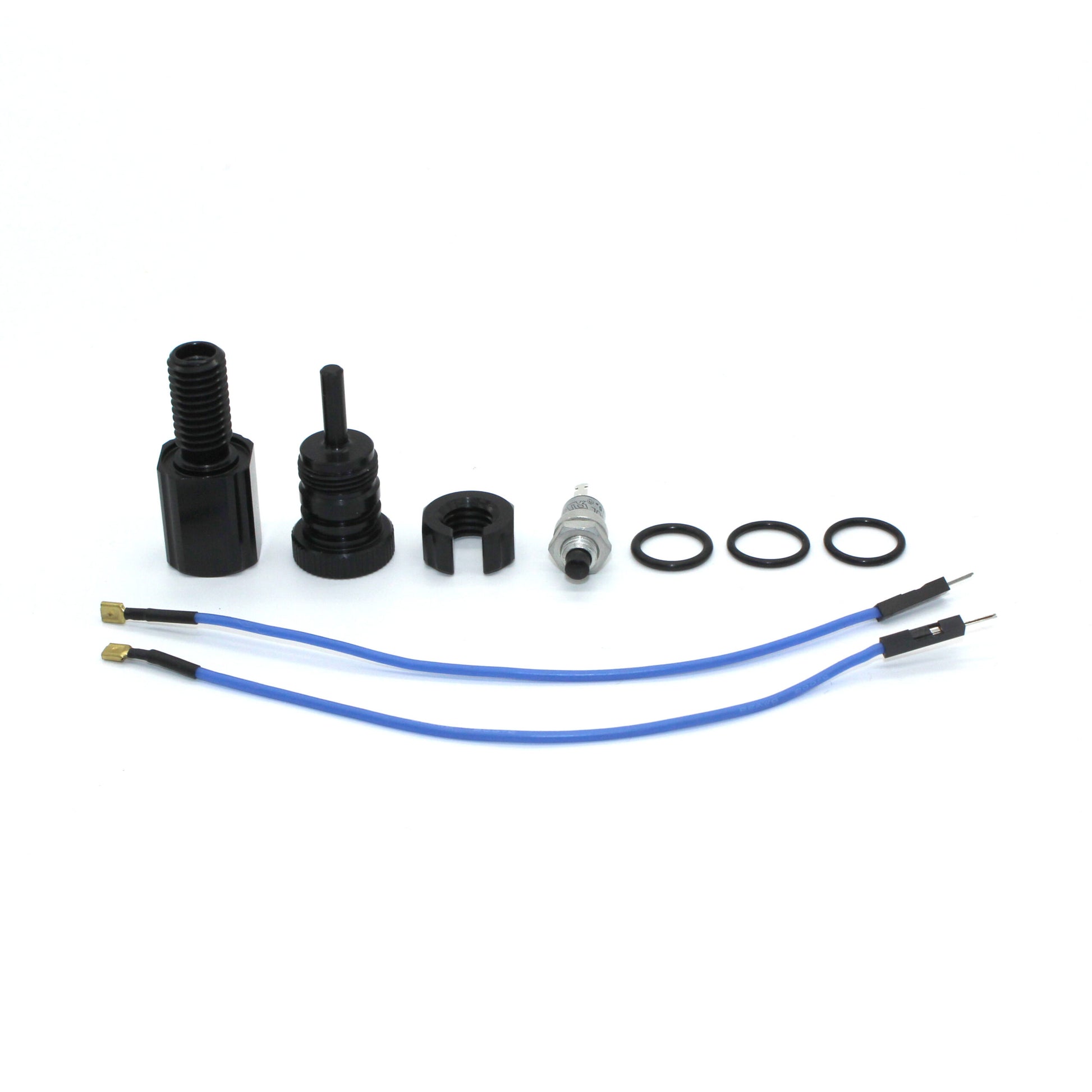

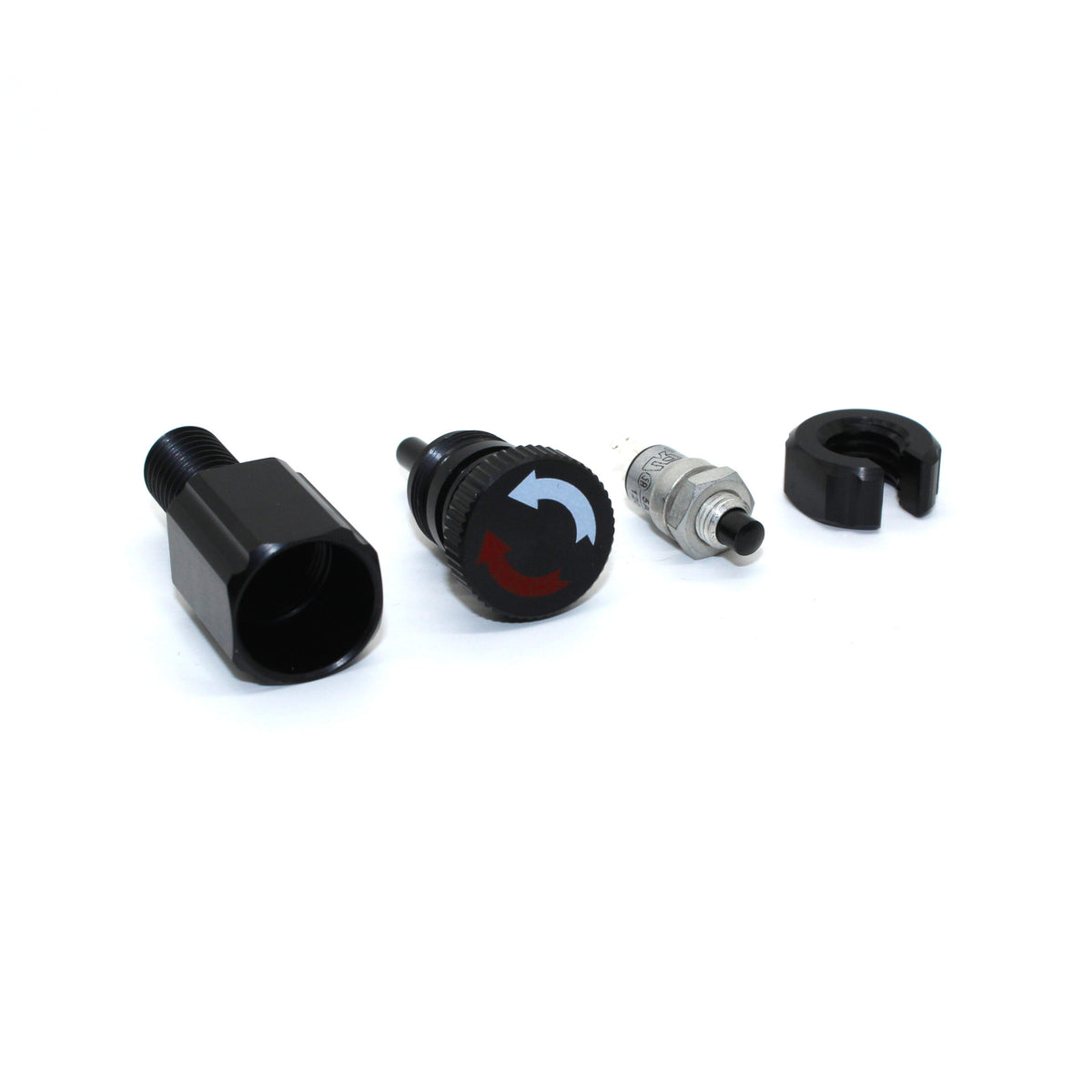

  • 1 x Switch Bulkhead
  • 1 x Switch Plug
  • 1 x M10 Nut
  • 1 x O-ring for Bulkhead
  • 2 x O-ring for Switch Plug
  • 1 x 30-3UL Button
  • 2 x Wire Lead

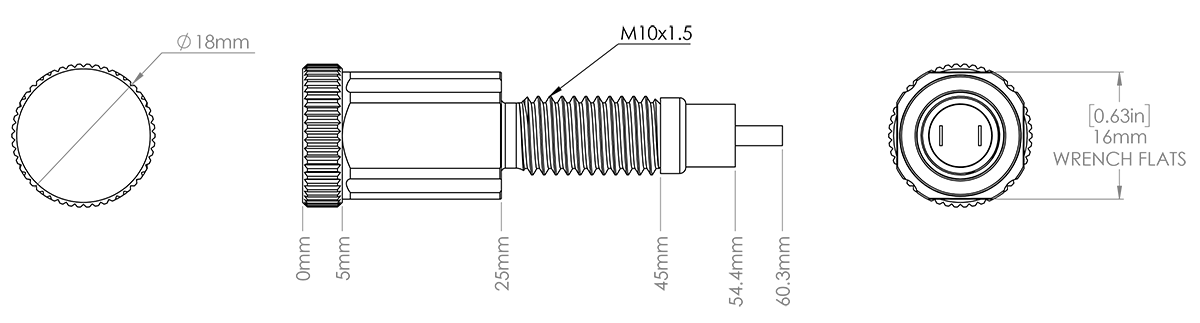

Switch - Drawing 1

21 March 2025

  • Bulkhead and plug changed to type III anodizing

6 July 2023

  • SWITCH-M10-5A-R1-RP SKU changed to BR-100433

13 March 2023

  • -013 bulkhead O-ring color changed to blue

23 February 2022

  • SWITCH-M10-5A-R1 - Initial Release
  • Redesigned plug and bulkhead for product compatibility

13 April 2018

  • Dial sticker is replaced with printed on arrows

20 October 2016

  • R1 - Initial Release
