Product Description

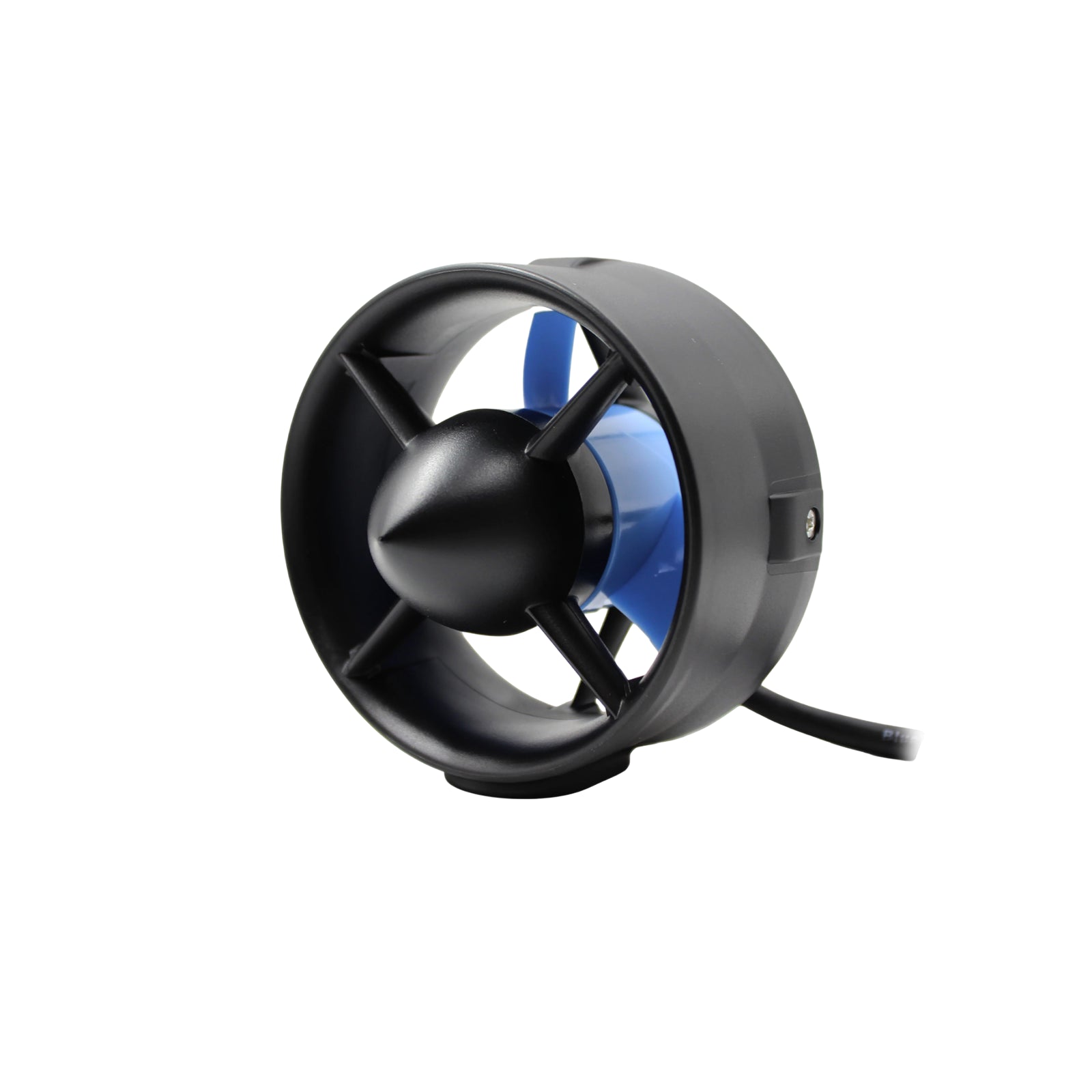

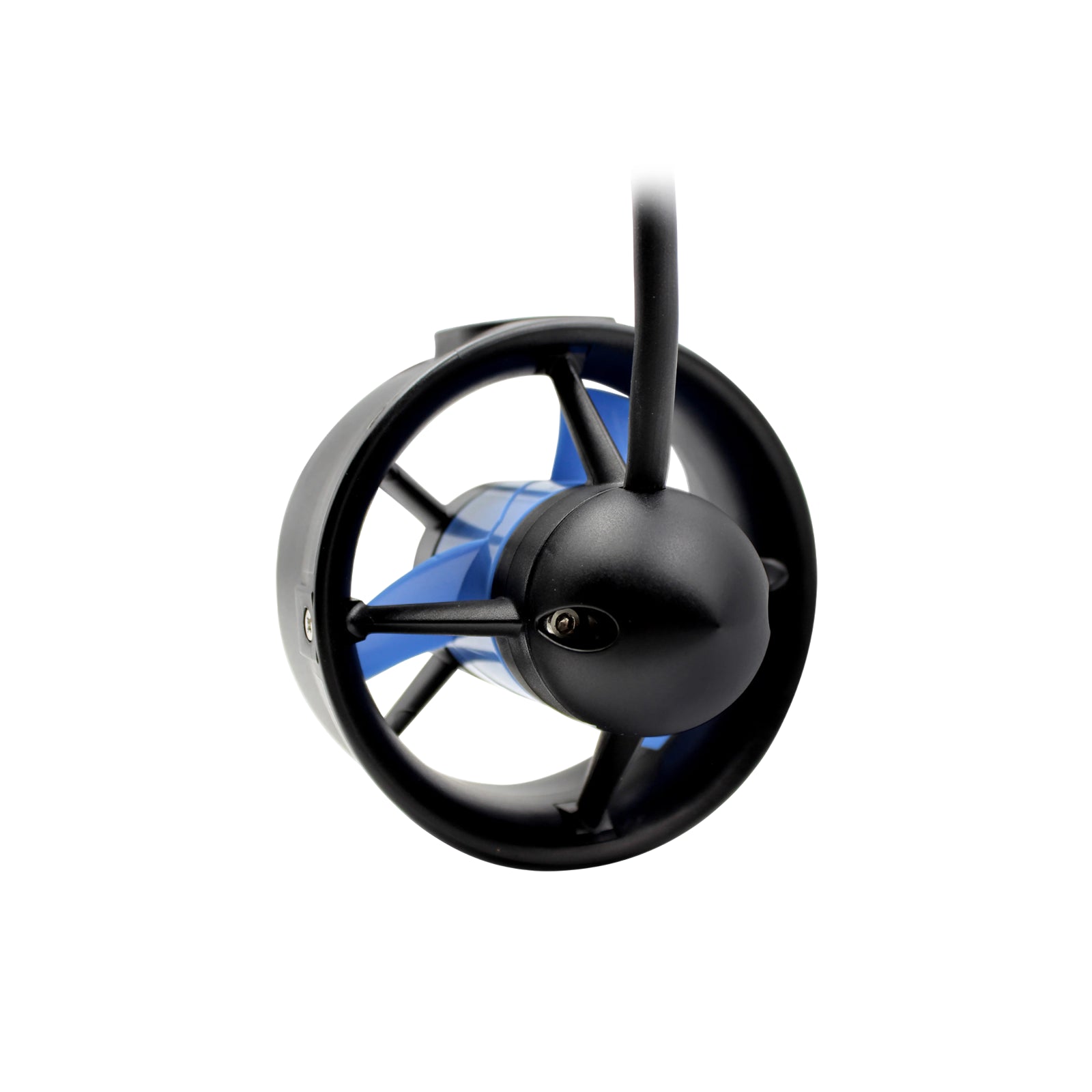

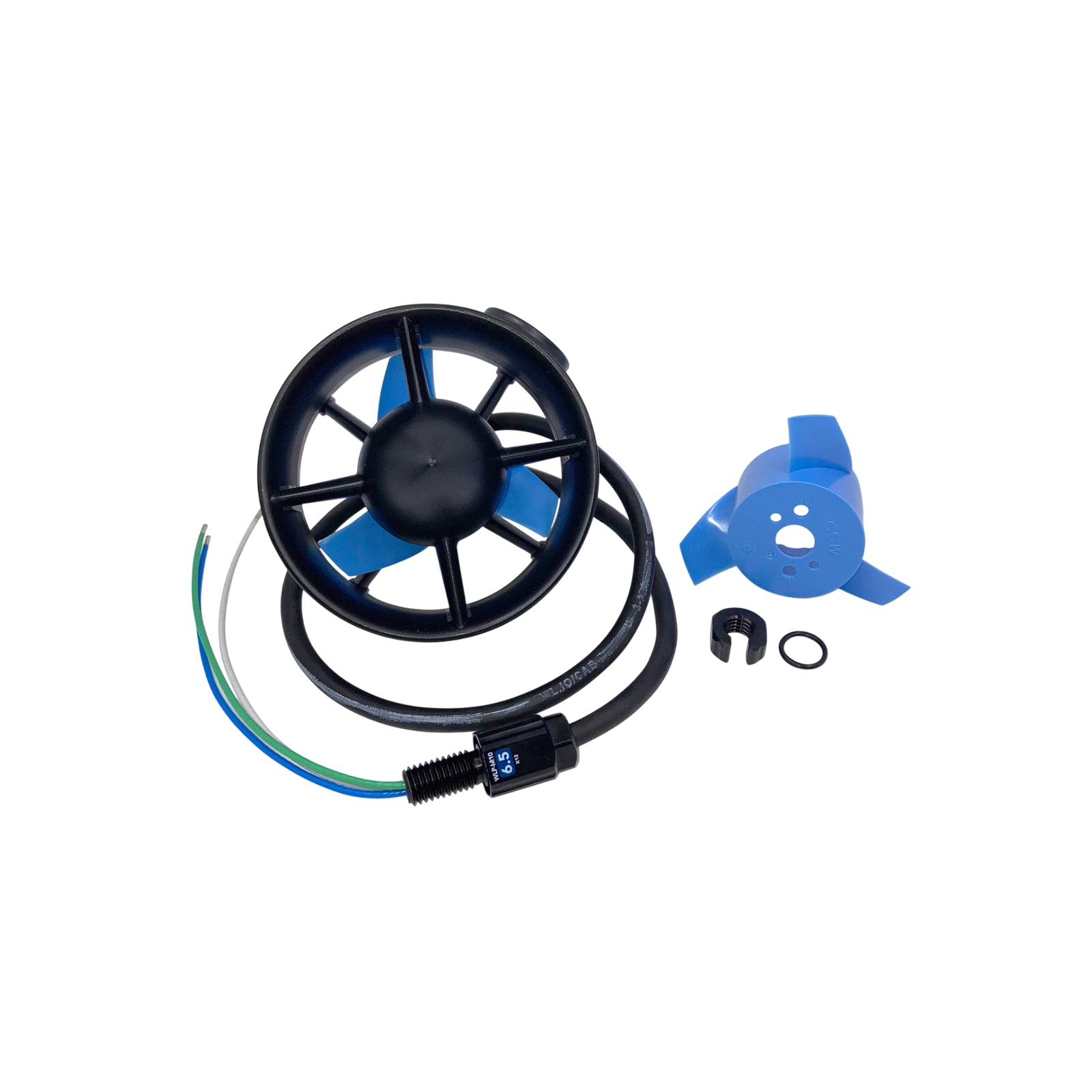

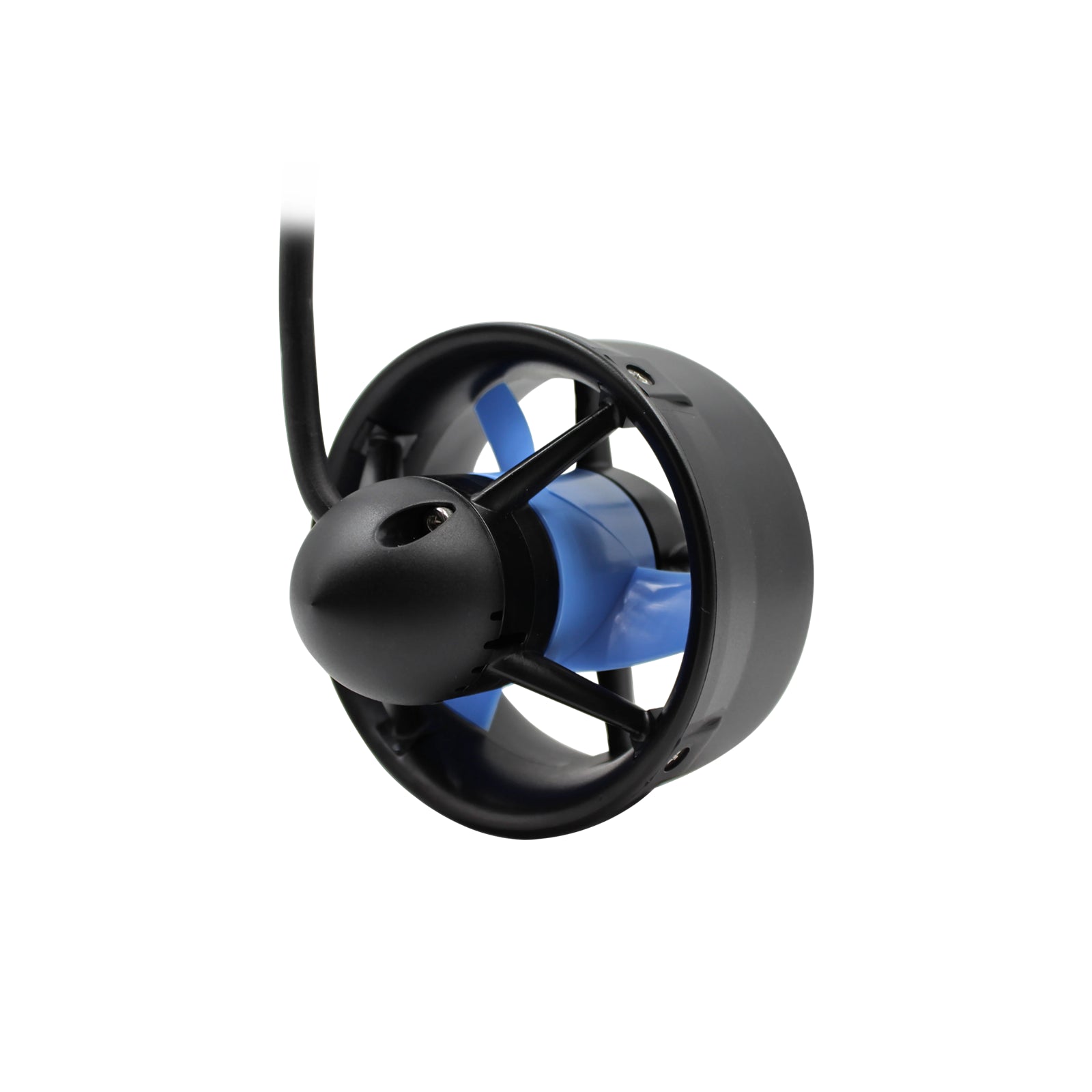

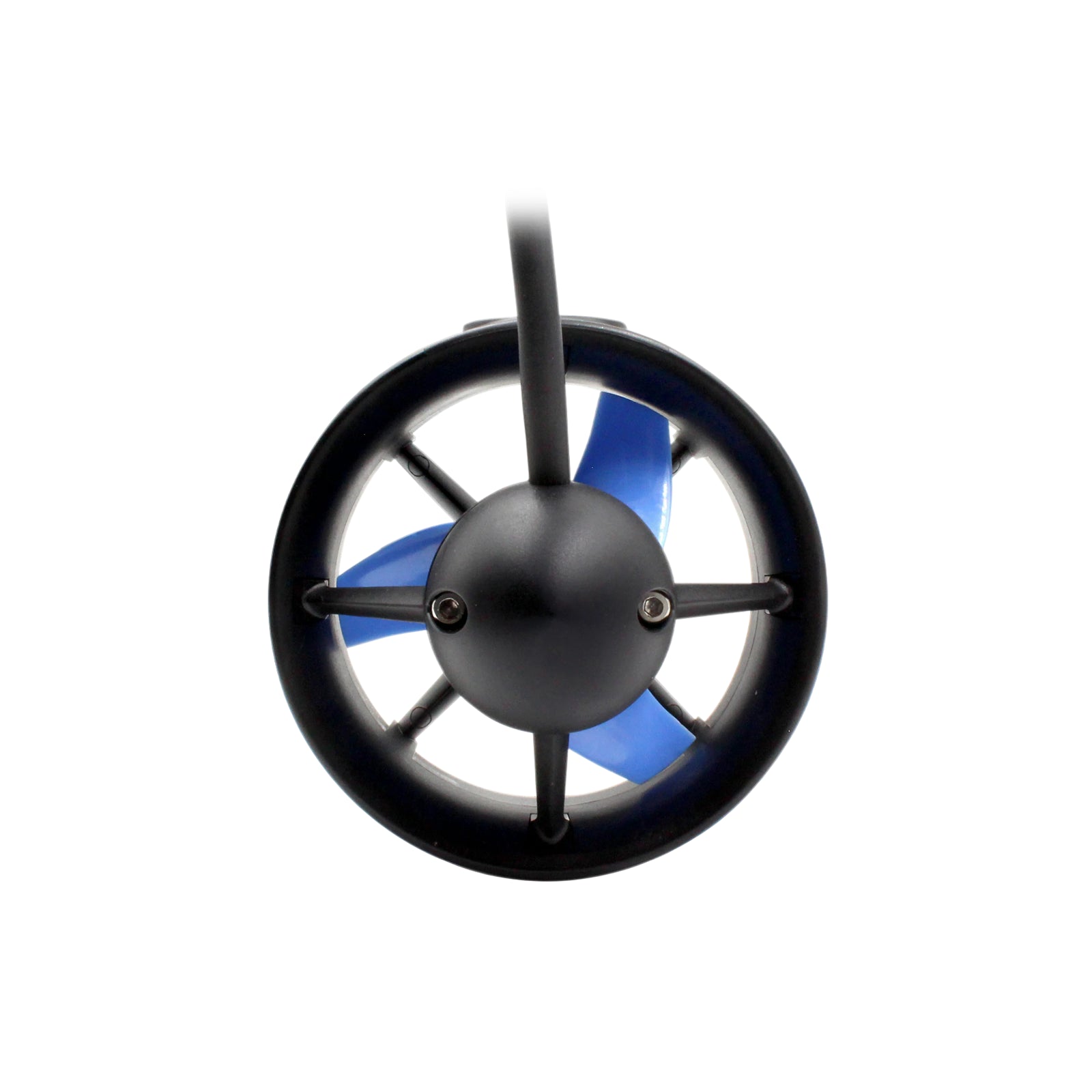

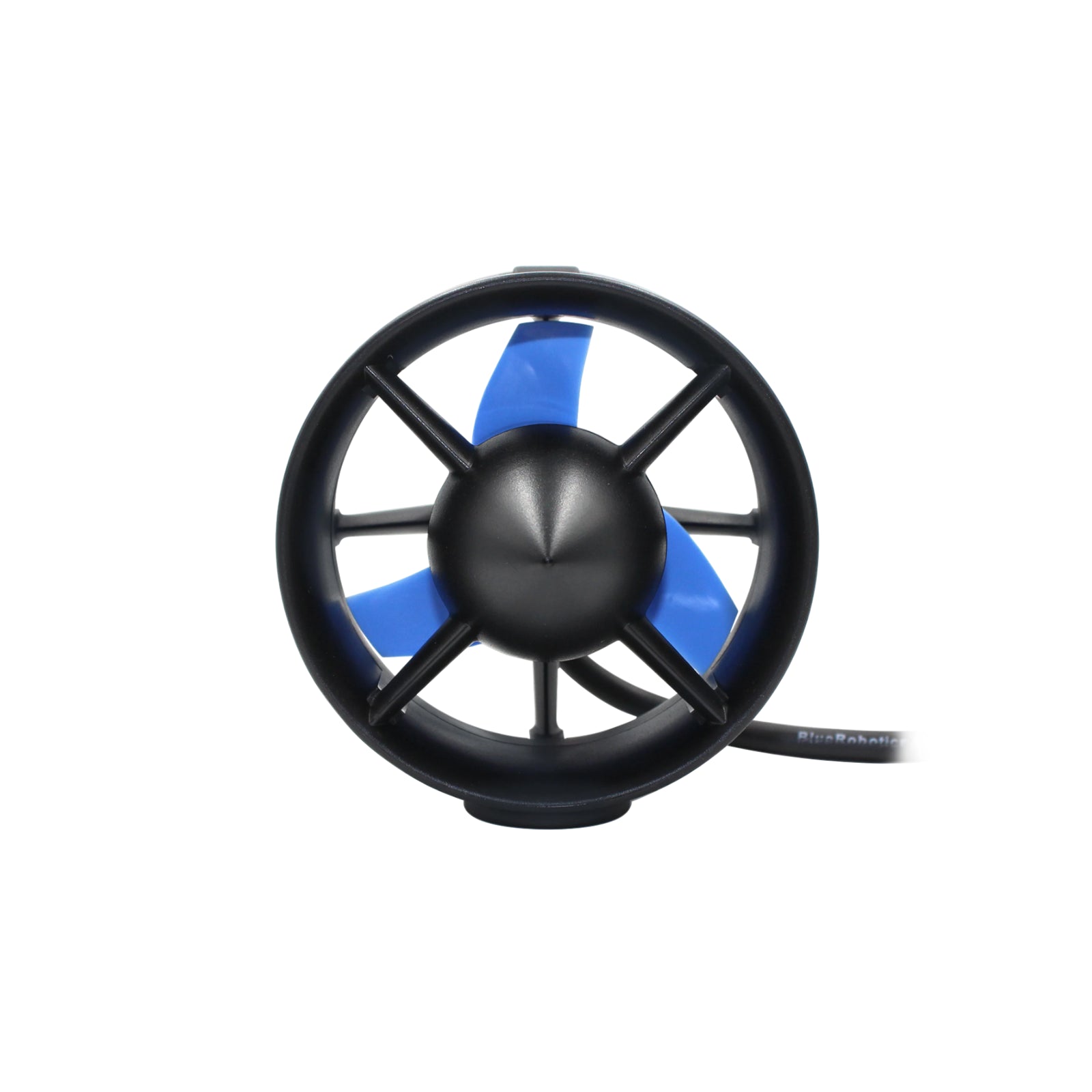

This T200 comes with a slightly shorter cable and a pre-installed cable penetrator and is a drop-in replacement for the thrusters on the BlueROV2. It’s also included in the BlueROV2 Spares Kit.
If you’re looking for the normal T200 Thruster, you can find it here. Also, remember that this thruster needs an electronics speed controller (ESC), like the Basic ESC, to operate.
| Parameter | Value | |
|---|---|---|
| Performance | ||
| Full Throttle FWD/REV Thrust @ Nominal (16 V) | 5.25 / 4.1 kgf | 11.6 / 9.0 lbf |
| Full Throttle FWD/REV Thrust @ Maximum (20 V) | 6.7 / 5.05 kgf | 14.8 / 11.1 lbf |
| Minimum Thrust | 0.02 kgf* | 0.05 lbf* |
| Electrical | ||
| Operating Voltage | 7–20 volts | |
| Full Throttle Current @ Nominal (16 V) | 24 Amps | |
| Full Throttle Current @ Maximum (20 V) | 32 Amps | |
| Full Throttle Power @ Nominal (16 V) | 390 Watts | |
| Full Throttle Power @ Maximum (20 V) | 645 Watts | |
| Physical | ||
| Length | 113 mm | 4.45 in |
| Diameter | 100 mm | 3.9 in |
| Wetted Materials |
Polycarbonate 10% glass-filled Epoxy Stainless steel Plastic Polyurethane 7075-T6 Aluminum FKM Buna-N |
|
| Weight in Air (with 1m cable) | 0.76 lb | 344 g |
| Weight in Water (with 1m cable) | 0.34 lb | 156 g |
| Propeller Diameter | 76 mm | 3.0 in |

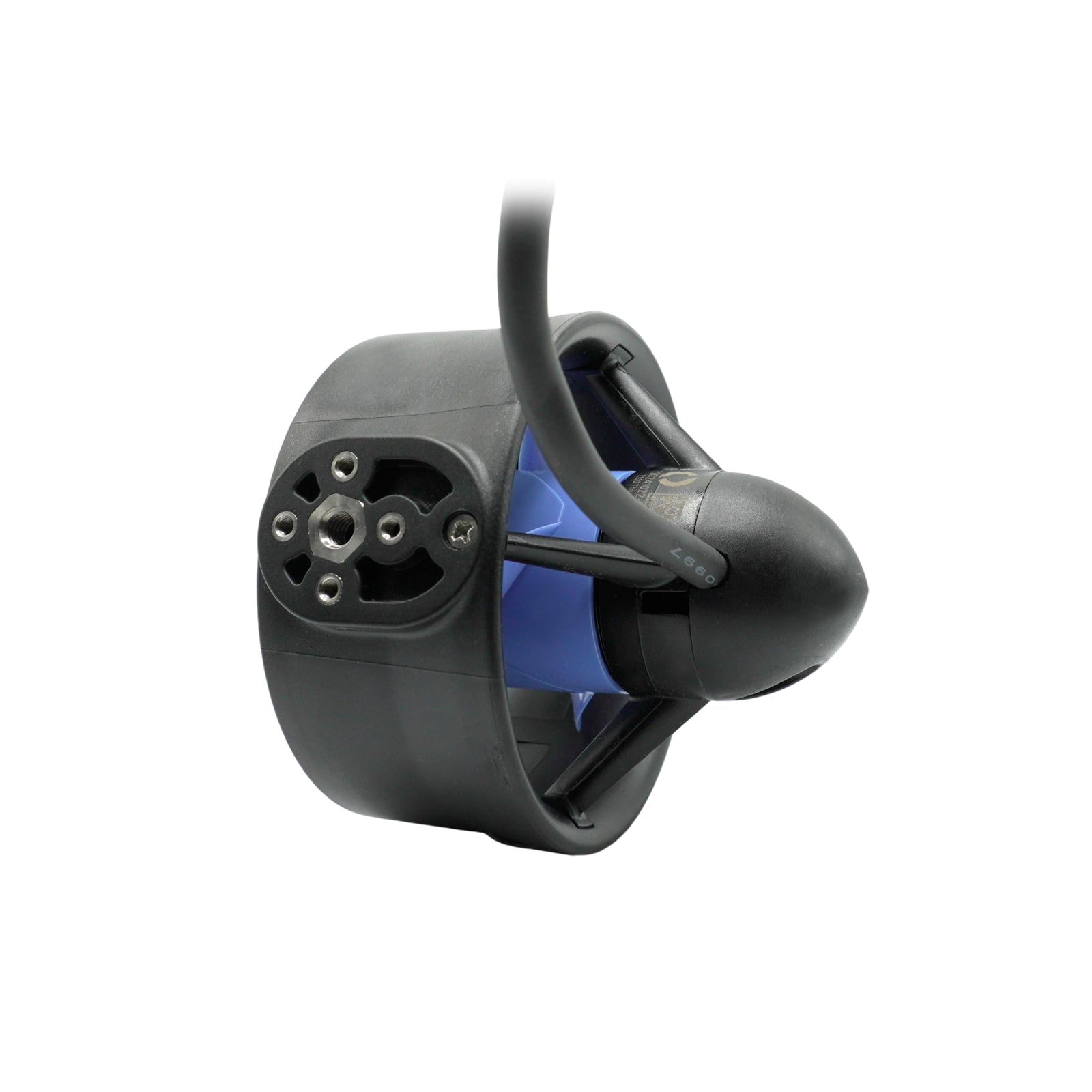

| Mounting Hole Threads | 4× M3x0.5 1× M6x1.0 |
|
| Mounting Hole Depth | (M3) 6 mm (M6) 8 mm |
|
| Mounting Hole Spacing (M3) | 19 mm | 0.75 in |
| Recommended Fastener Installation Torque | 0.5–1.3 Nm (M3 fasteners) 3–5 Nm (M6 fastener) |
|
| Cable | ||
| Cable Used | BR-100997 | |

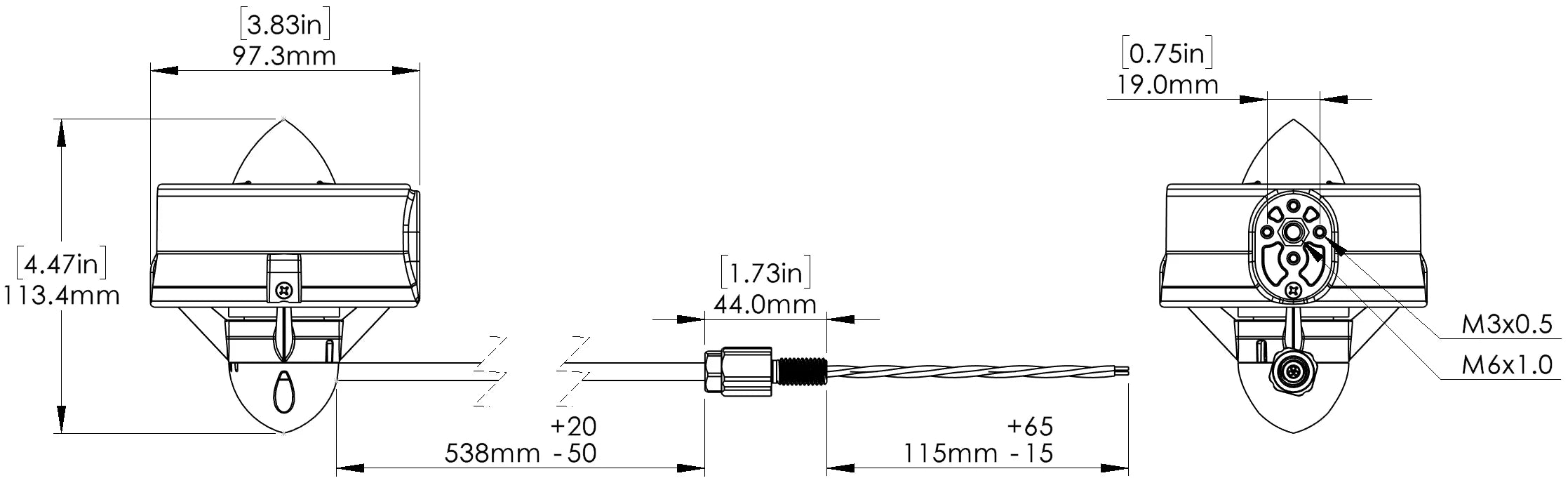

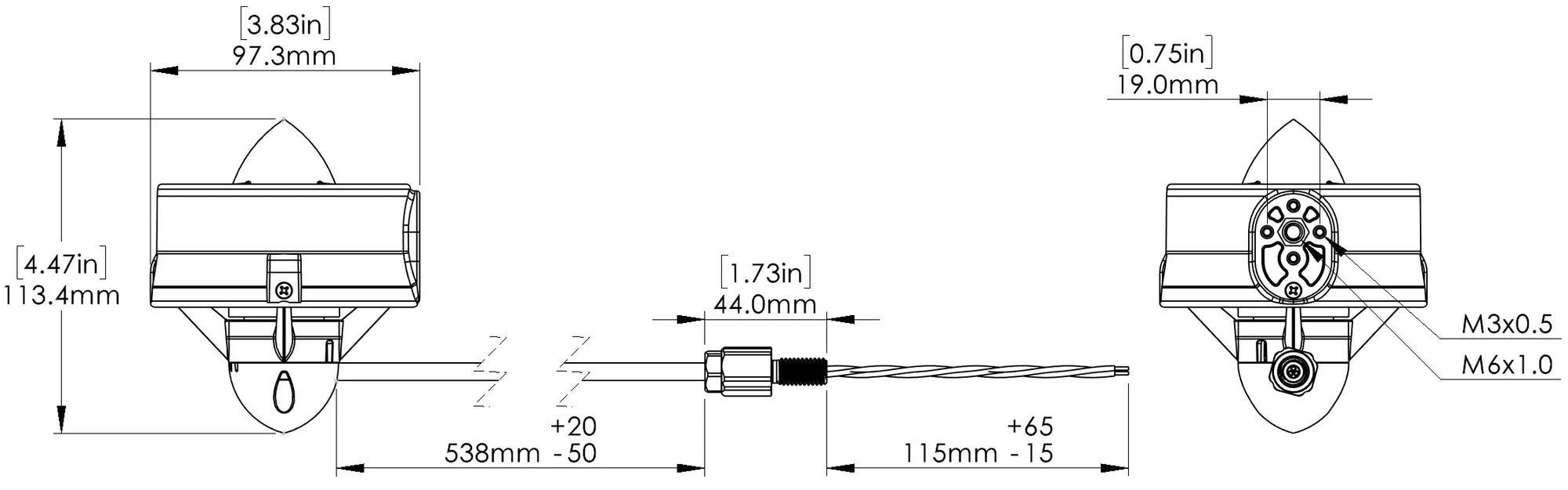

| Cable Length | *See drawing | |
| Conductor Gauge | 16 AWG | |

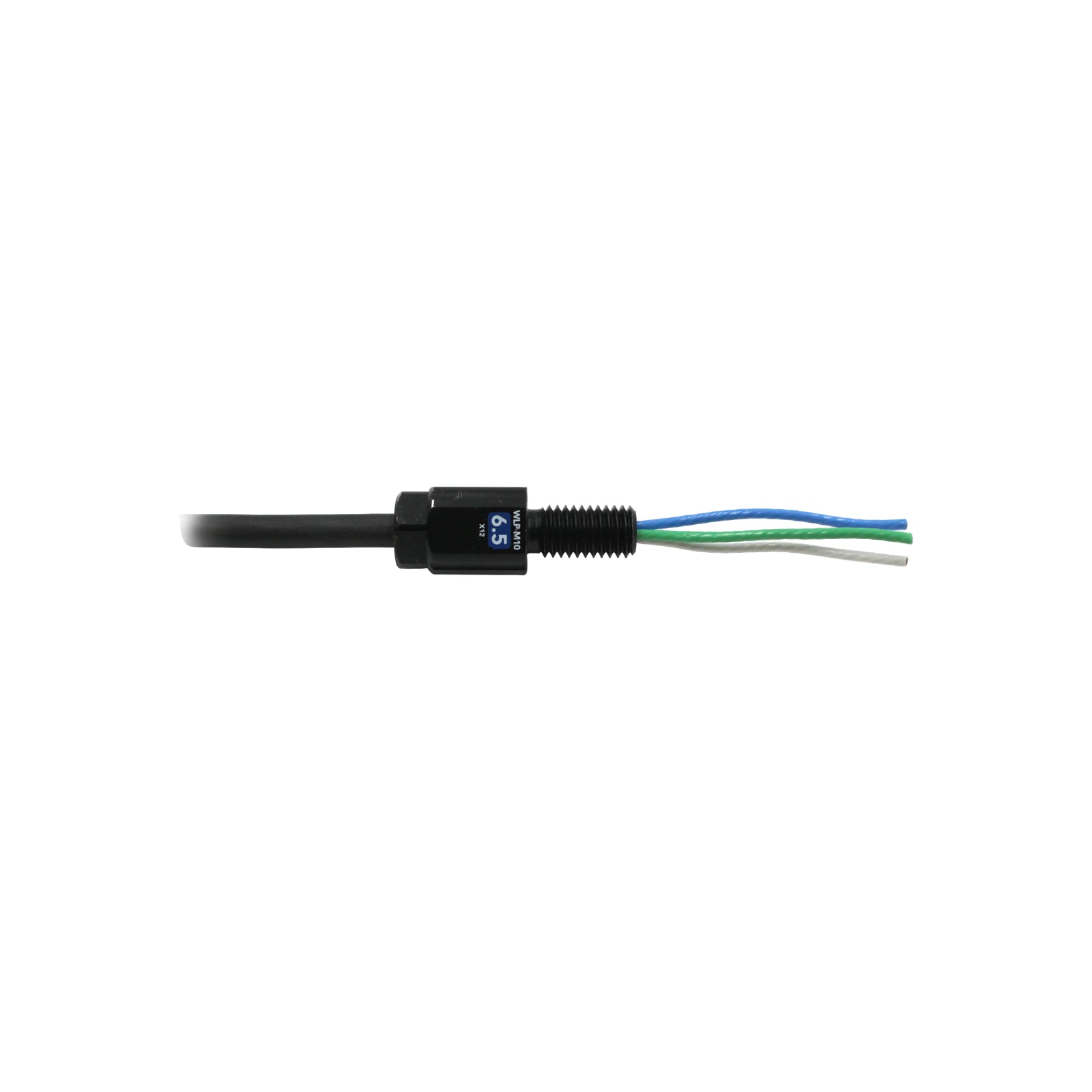

| Installed Penetrator | M10-6.5mm-LC | |
*Values limited by ESC used to drive thruster.
Note that nominal operation at 12–16 V is recommended for the best balance of thrust and efficiency, though operation at up to 20 V is allowable. Exceeding 20 V is not within the rating and not recommended, please see here for more information.
For more detailed performance specifications, including thrust, RPM, power and efficiency at various throttle levels and supply voltages from 10-20 V, please see the performance charts below.
Note that nominal operation at 12–16 V is recommended for the best balance of thrust and efficiency, though operation at up to 20 V is allowable. Exceeding 20 V is not within the rating and not recommended, please see here for more information.
For more detailed performance specifications, including thrust, RPM, power and efficiency at various throttle levels and supply voltages from 10-20 V, please see the performance charts below.
T200_rpm
T200_thrust
T200_efficiency
T200_thrust_power
T200_current_draw
