Water Linked DVL Mounting Bracket

Water Linked DVL Mounting Bracket

Ocean Robotix Pvt Ltd

Water Linked DVL Mounting Bracket

100 in stock

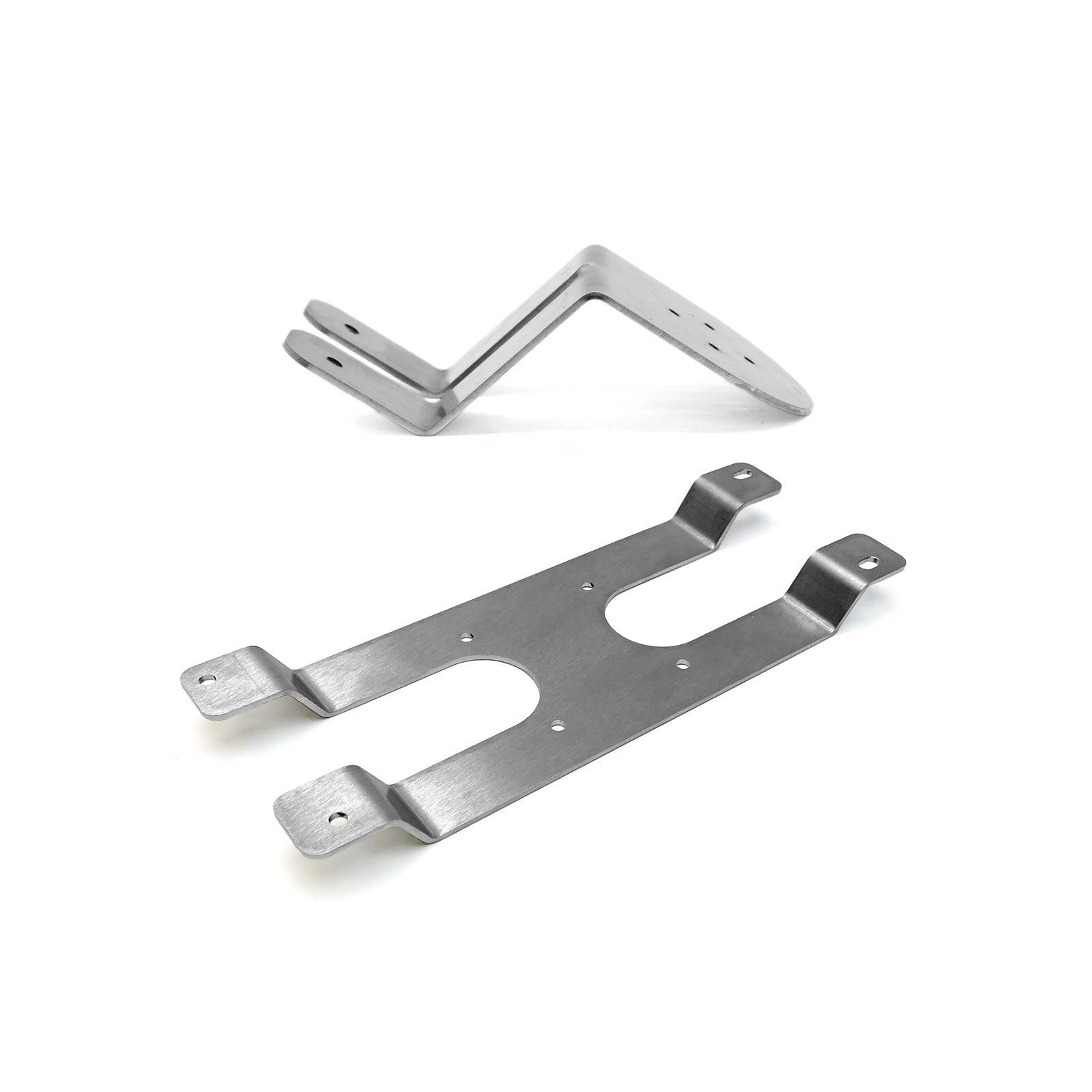

This stainless steel bracket holds the Water Linked DVL A50 or A125 on the BlueROV2, raising it so that the minimum distance to the seafloor is always greater than 5 cm and the DVL is able to maintain an accurate position at all times. It comes with all necessary mounting hardware.

Type
Rs. 7,350.00
Rs. 7,350.00
Sale Sold out
SKU: BR-101983
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

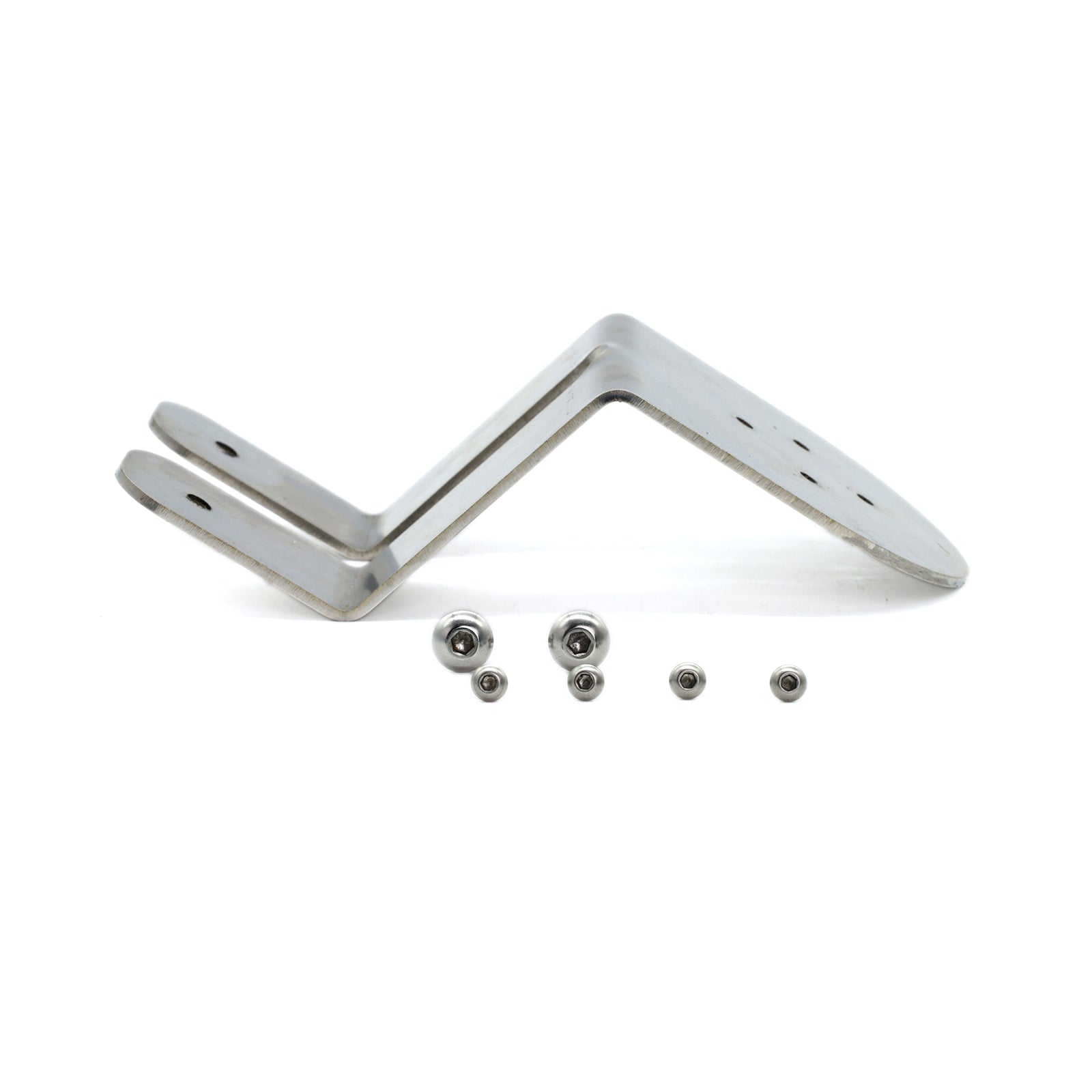

This stainless steel mounting bracket is perfect for mounting the Water Linked DVL A50 or the A125 to the BlueROV2 and other vehicles. When mounted, the DVL is elevated to increase the minimum distance to the seafloor, allowing the DVL to maintain accurate positioning all the time.

The bracket comes with mounting hardware and you can check out our DVL A50 integration guide for installation instructions.

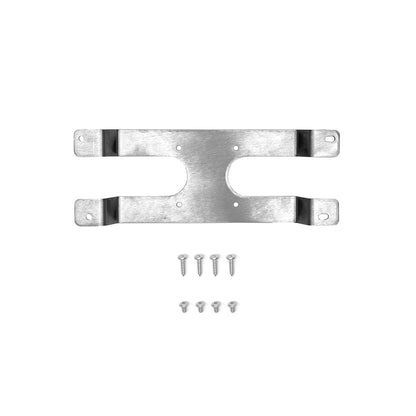

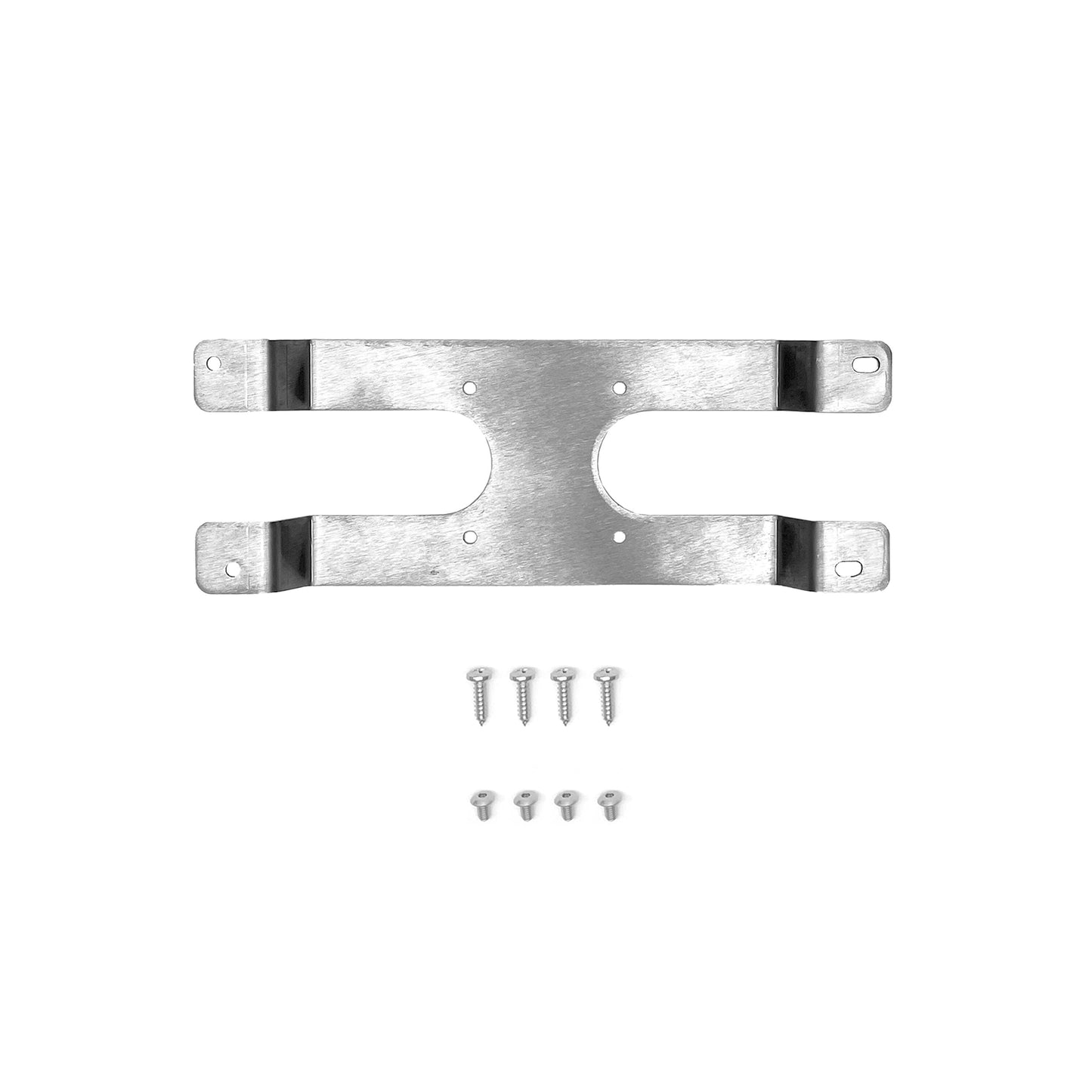

DVL A50 Mounting Bracket

  • 1 x Mounting bracket
  • 4 x M3x5 Screws (BR-100689)
  • 2 x M5x16 Screws (BR-101091)
Mounting Bracket DVL A50 DVL A125
Material Stainless steel 316
Weight (in air) 150 g 175 g

16 April 2024

  • BR-102741, DVL A125 Mounting Bracket - Initial release

28 June 2023

  • BR-101983, DVL A50 Mounting Bracket - Initial release
