Product Description
The WetLink Cable Splice Kit is a revolutionary alternative to the adhesive-based splice kits that are common in subsea work. Kits like the 3M™ Scotchcast™ Cable Splicing Kits require you to mix and pour urethane potting compound into a mold and wait for it to cure. It’s a finicky process that takes time and leaves lots of room for variation and error.
The WetLink Cable Splice solves that! It’s pottingless, requires no molds, and has no cure time! You can make a high-pressure cable splice in just minutes.

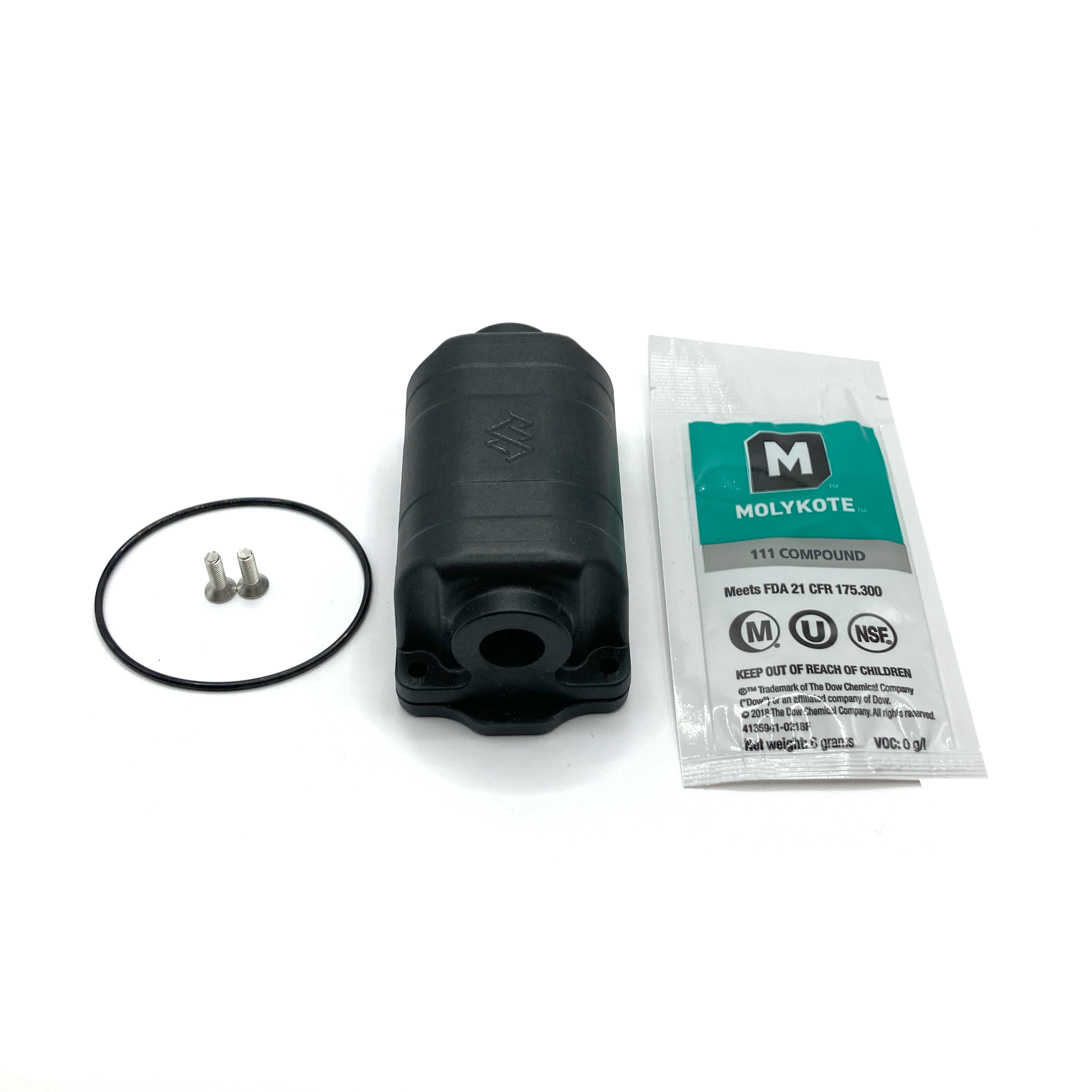

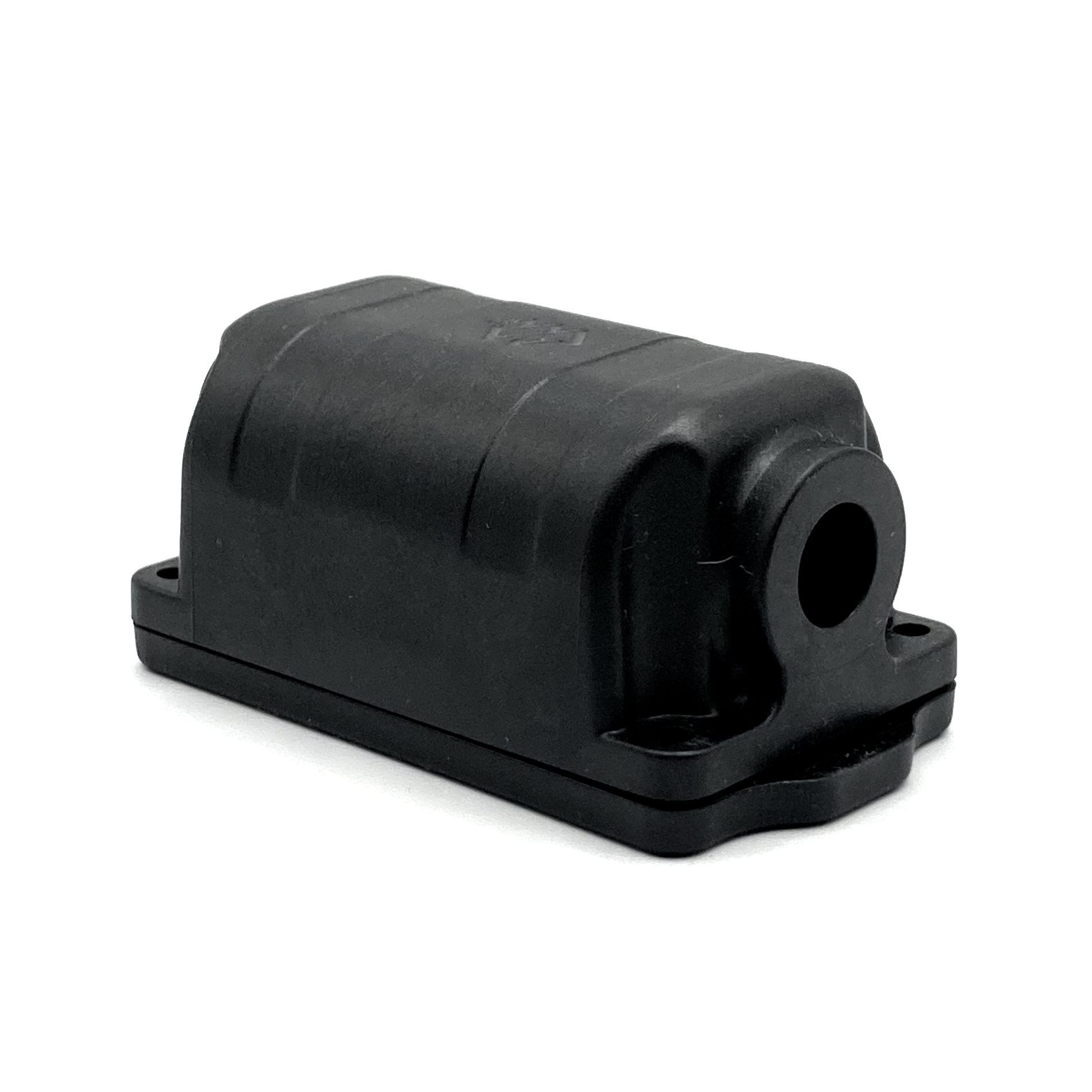

This kit includes a small box, made with high-strength polycarbonate plastic, with holes on either end for the WetLink Penetrators, which seal to just about any cable with a compression gland seal. To use this kit, you’ll need a few items:
You’ll need:
1 x WetLink Cable Splice Kit (this product)
2 x M10 WetLink Penetrators for your cable diameter
Goodbye, messy potting compound! Hello, WetLink! 👋
| Specifications | ||||||
| Parameter | Value | |||||
|---|---|---|---|---|---|---|
| Performance | ||||||
| Maximum Rated Depth (seawater) | 500 m | 1640 ft | ||||
| Design Lifetime¹ | 3 years or 500 cycles to rated depth | |||||
| Temperature Rating (air) | -25–60°C | -13–140°F | ||||
| Temperature Rating (water) | 0–40°C | 32–104°F | ||||
| Tools | ||||||
| Compatible Bulkhead Wrench | BR-100977-010 | |||||
| Recommended Penetrator Installation Torque | 3.5 Nm | |||||
| Lid Screw Size | M3x0.5 - 10 | |||||
| Lid Screw Hex Key Size | 2 mm | |||||
| Physical | ||||||

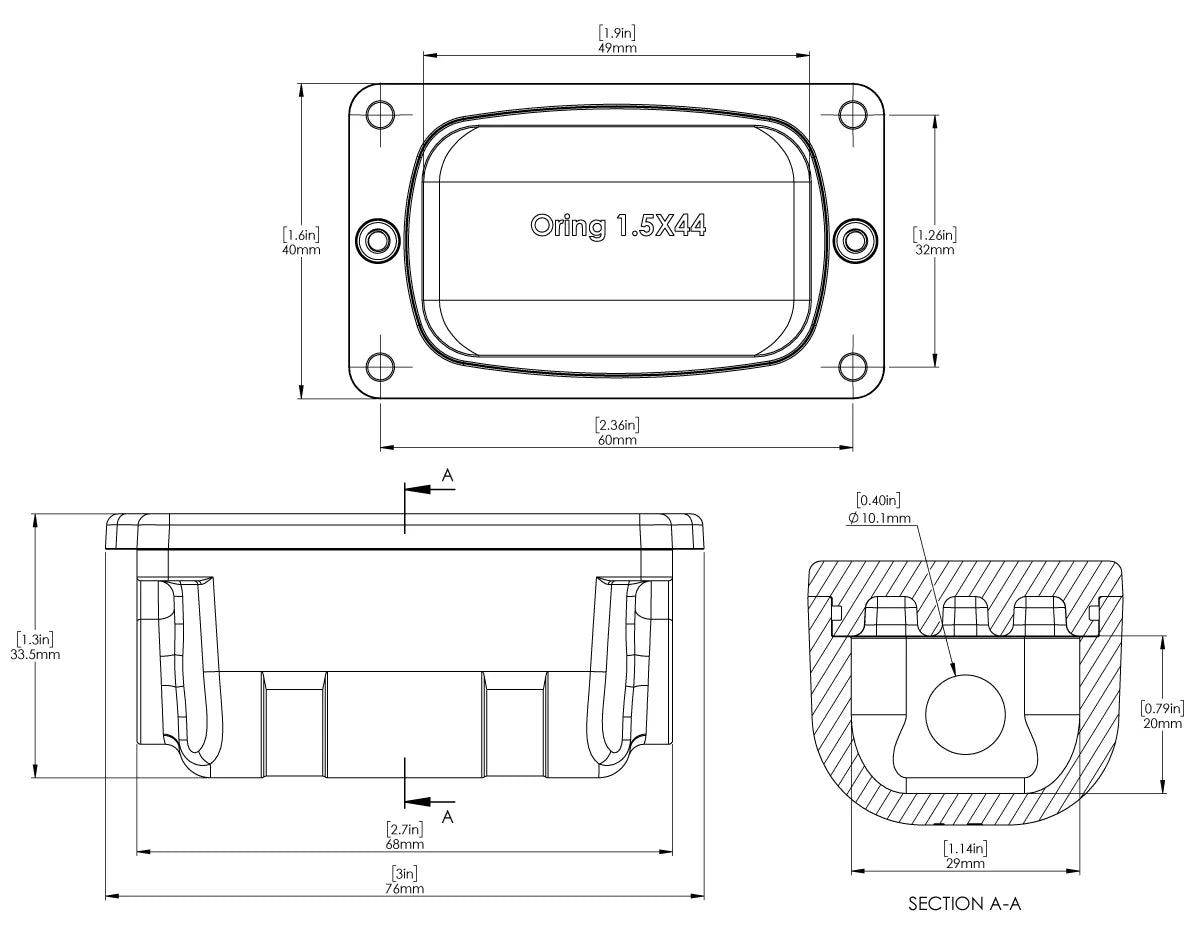

| Internal Dimensions (Length x Width x Height) | 49 x 29 x 20 mm | |||||
| Thru Hole Diameter | 10.1 mm | |||||
| Mounting Hole Diameter | 3.2 mm | |||||
| Mounting Hole Spacing | 32 x 60 mm | |||||
| Lid O-Ring Size | 44 x 1.5 mm | |||||
| Wetted Materials |
Polycarbonate 30% glass-filled Buna-N Molykote 111 compound Stainless steel 316 |
|||||
| In Air Weight (No penetrators) | 64 g | 2.25 oz | ||||
| In Water Weight (No penetrators) | -11.2 g | -0.4 oz | ||||
