WetLink Penetrator Assembly Block

WetLink Penetrator Assembly Block

Ocean Robotix Pvt Ltd

Cable Tools and Supplies

100 in stock

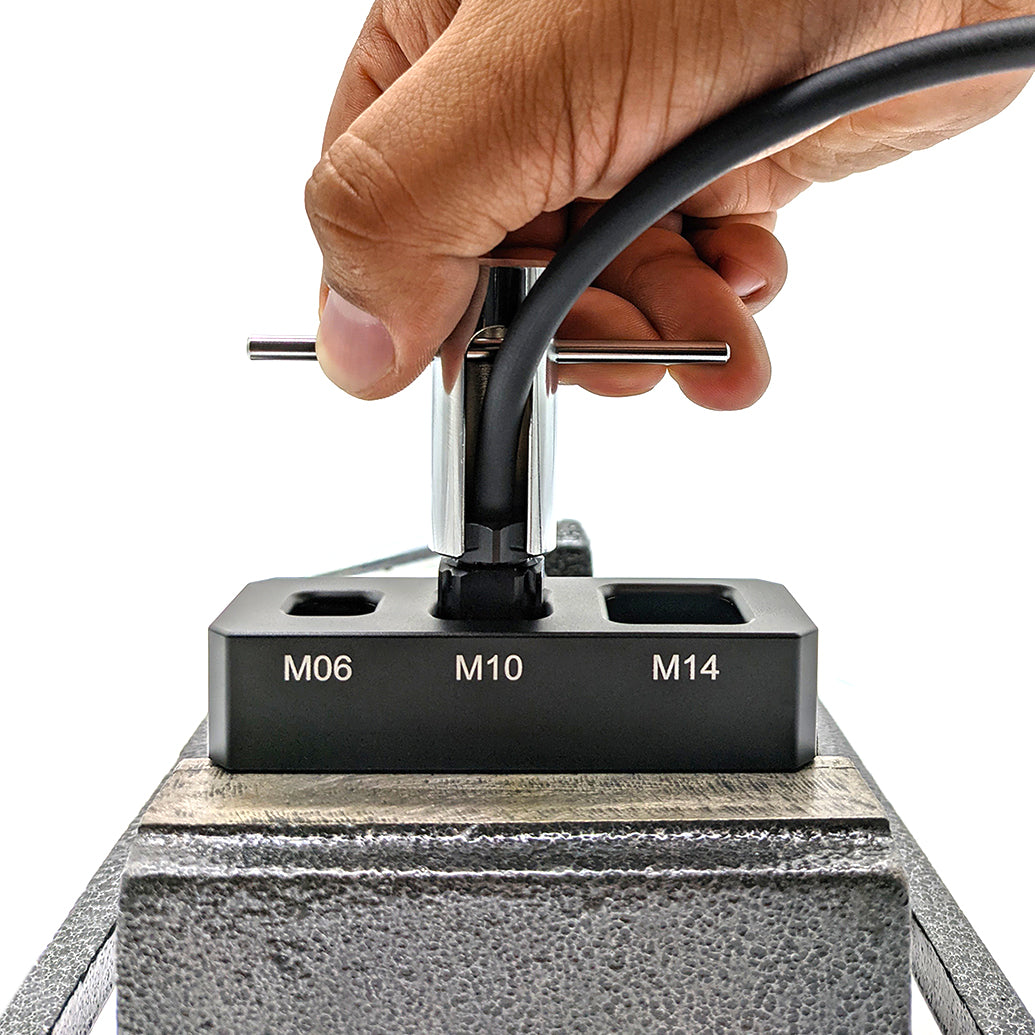

The tool holds the WetLink Penetrator bulkhead during assembly and is compatible with M06, M10, and M14 bulkhead sizes. It’s designed to fit in a vise or be bolted to a table. We recommend using it with the WetLink Plug Wrench.

Rs. 2,247.00
Rs. 2,247.00
Sale Sold out
SKU: BR-100686
  • Free Shipping Globally
  • Try it Risk-Free for 90 Days
  • FDA Cleared
View full details

Product Description

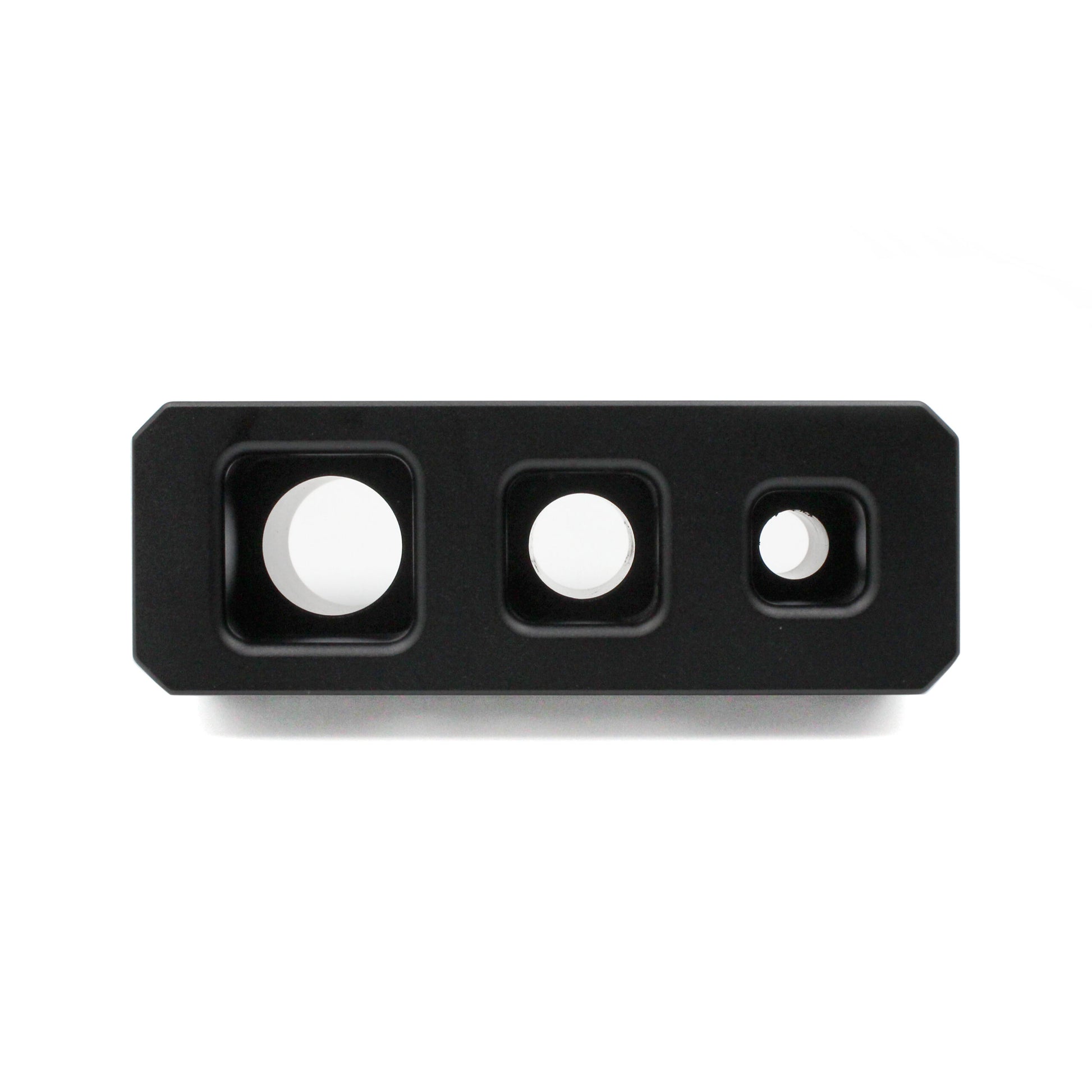

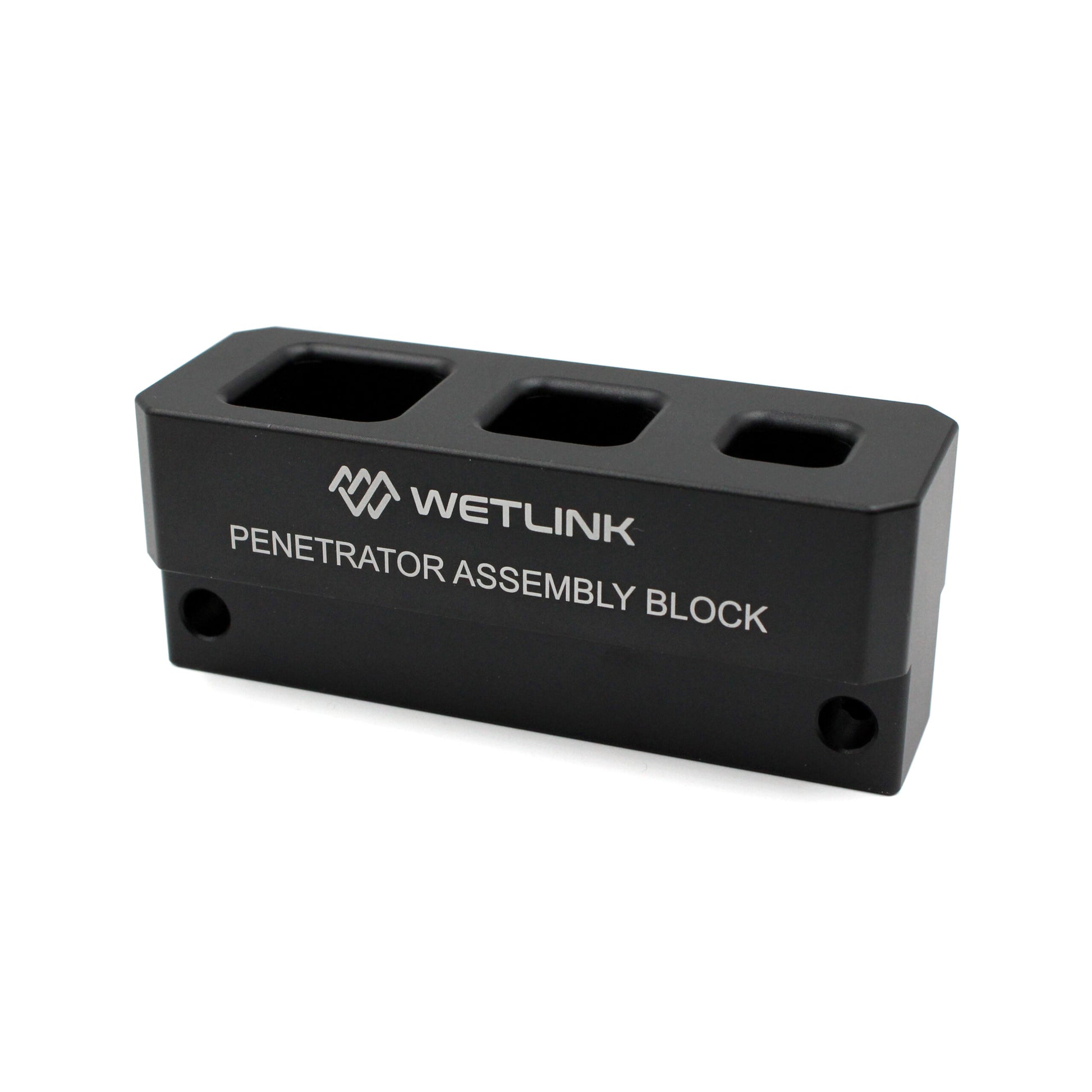

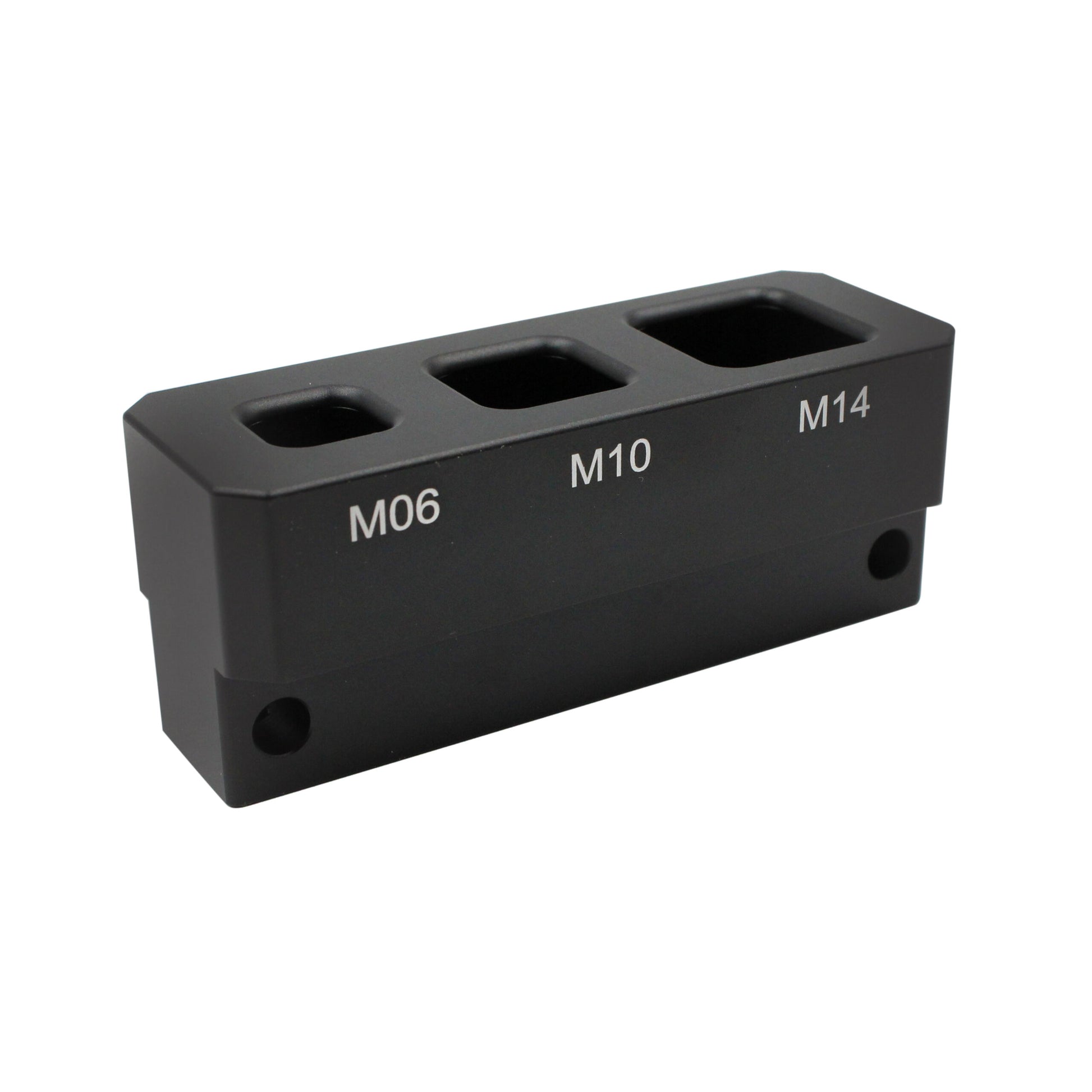

The WetLink Penetrator Assembly Block helps you assemble the WetLink Penetrator with ease by holding the bulkhead while the plug is tightened. It has three cavities to hold different sizes of bulkhead: M06, M10, and M14.

The assembly block is made from anodized aluminum and it’s designed to last for a long time!

We recommend using the assembly block with the WetLink Penetrator Plug Wrench, which is used to tighten the plug into the bulkhead.

  • 1 x WetLink Assembly Block
Parameter Size Value
Material 6061-T6 Aluminum, type III anodized
WetLink Penetrator Compatibility All WLP Bulkhead Sizes (M06, M10, M14)
Mounting Hole Spacing 77.6 mm 3.055 in
Mounting Through-Hole Diameter 6.2 mm 0.244 in
Mounting Hole Threads M6 x 1.0

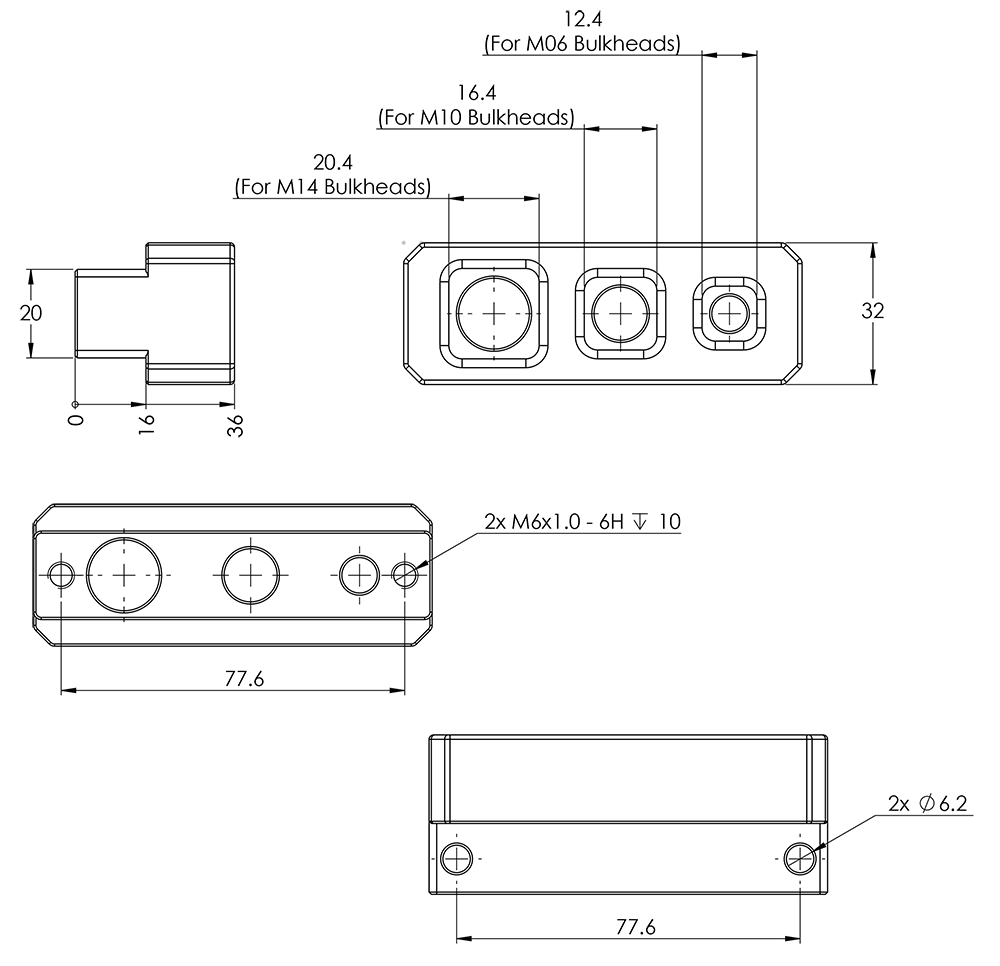

WetLink Penetrator Assembly Block - Drawing 1

17 March 2025

  • Changed to type III anodizing


20 June 2023

  • WLP-ASSEMBLY-BLOCK-R1-RP SKU changed to BR-100686


8 June 2021

  • WLP-ASSEMBLY-BLOCK-R1 - Initial release
