Product Description

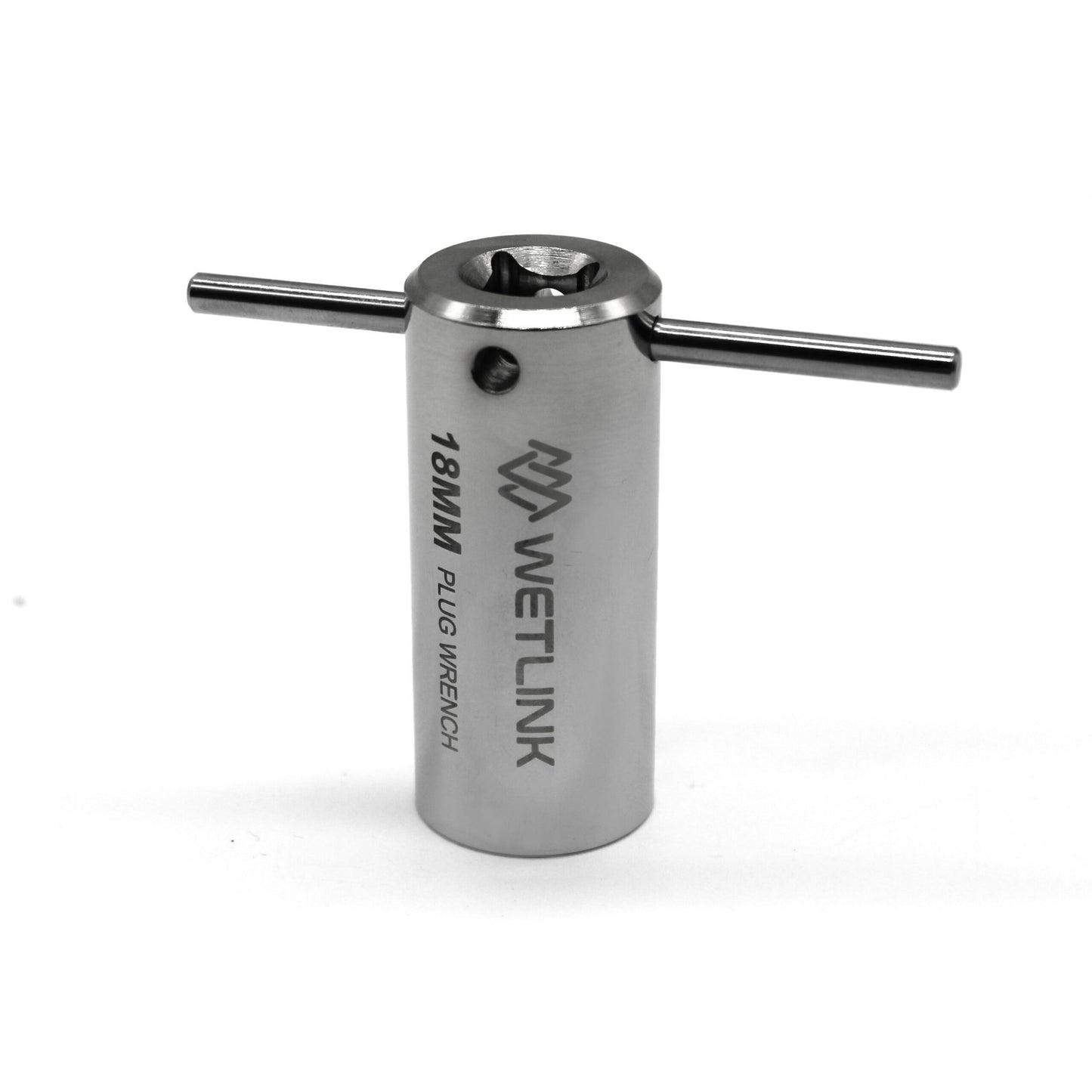

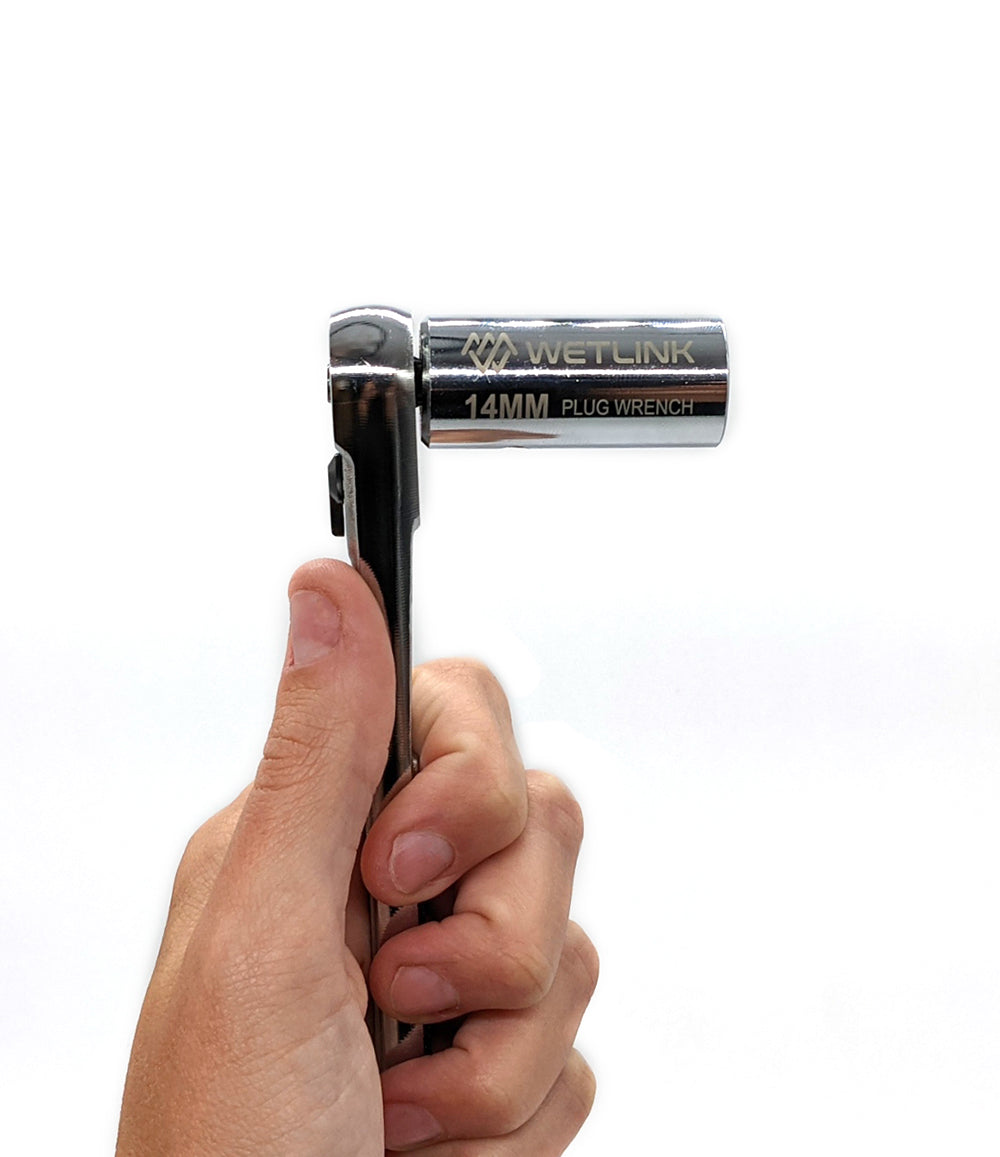

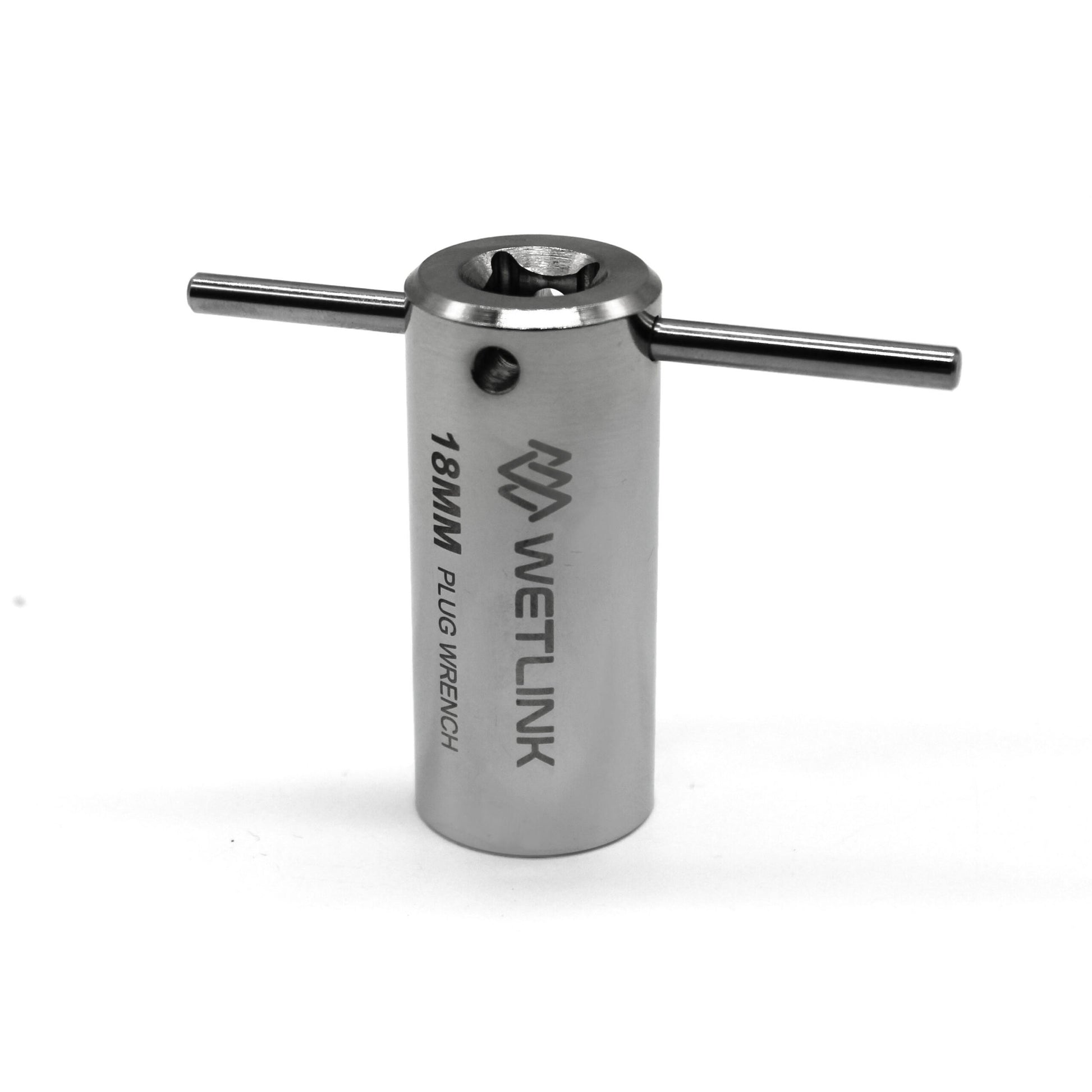

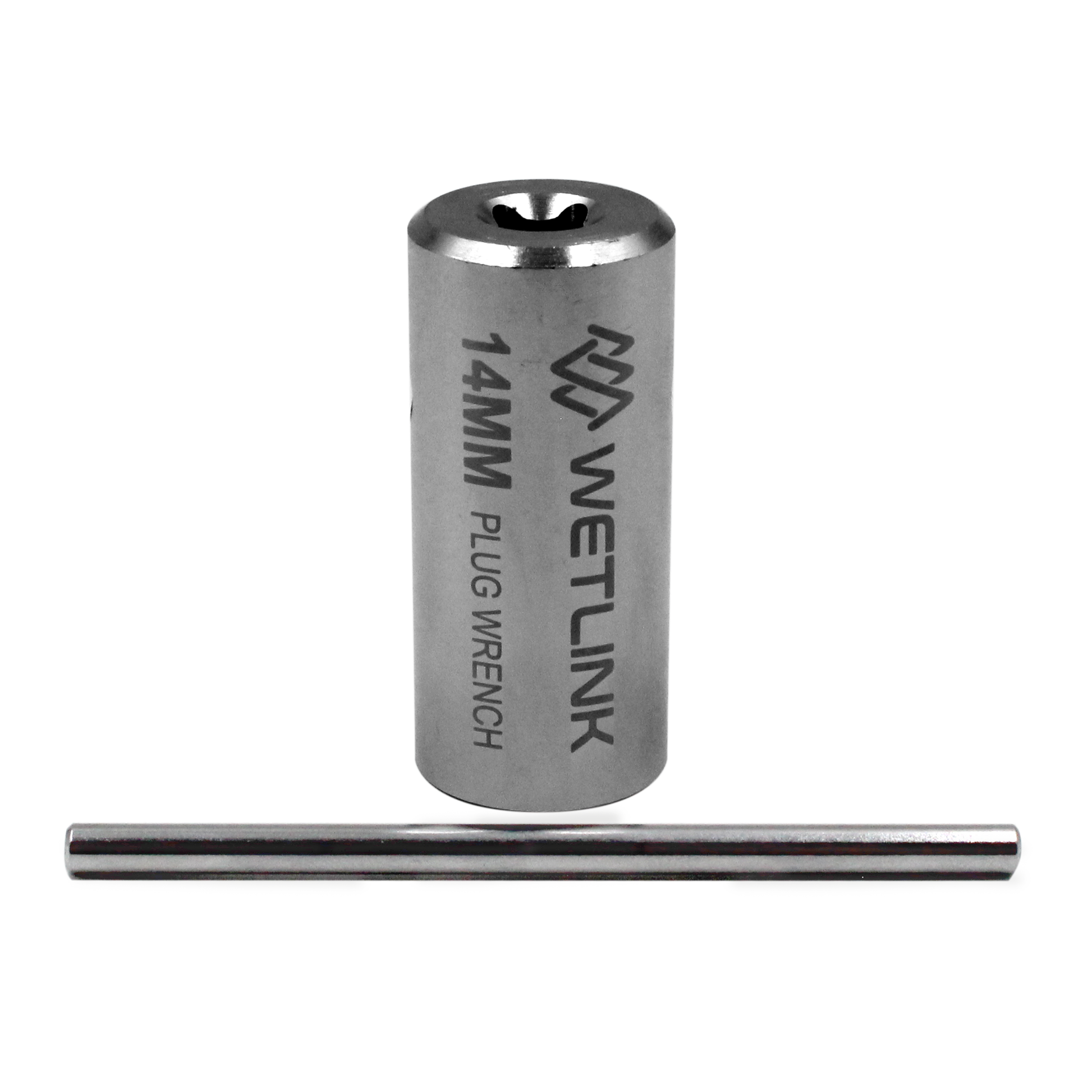

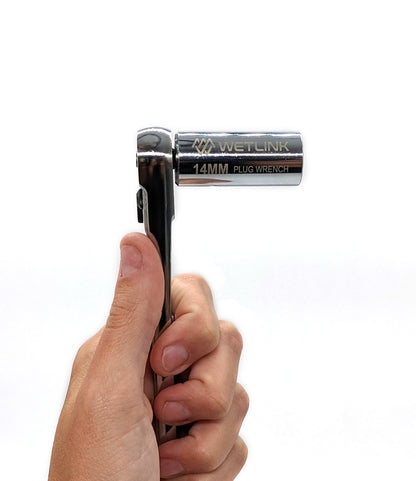

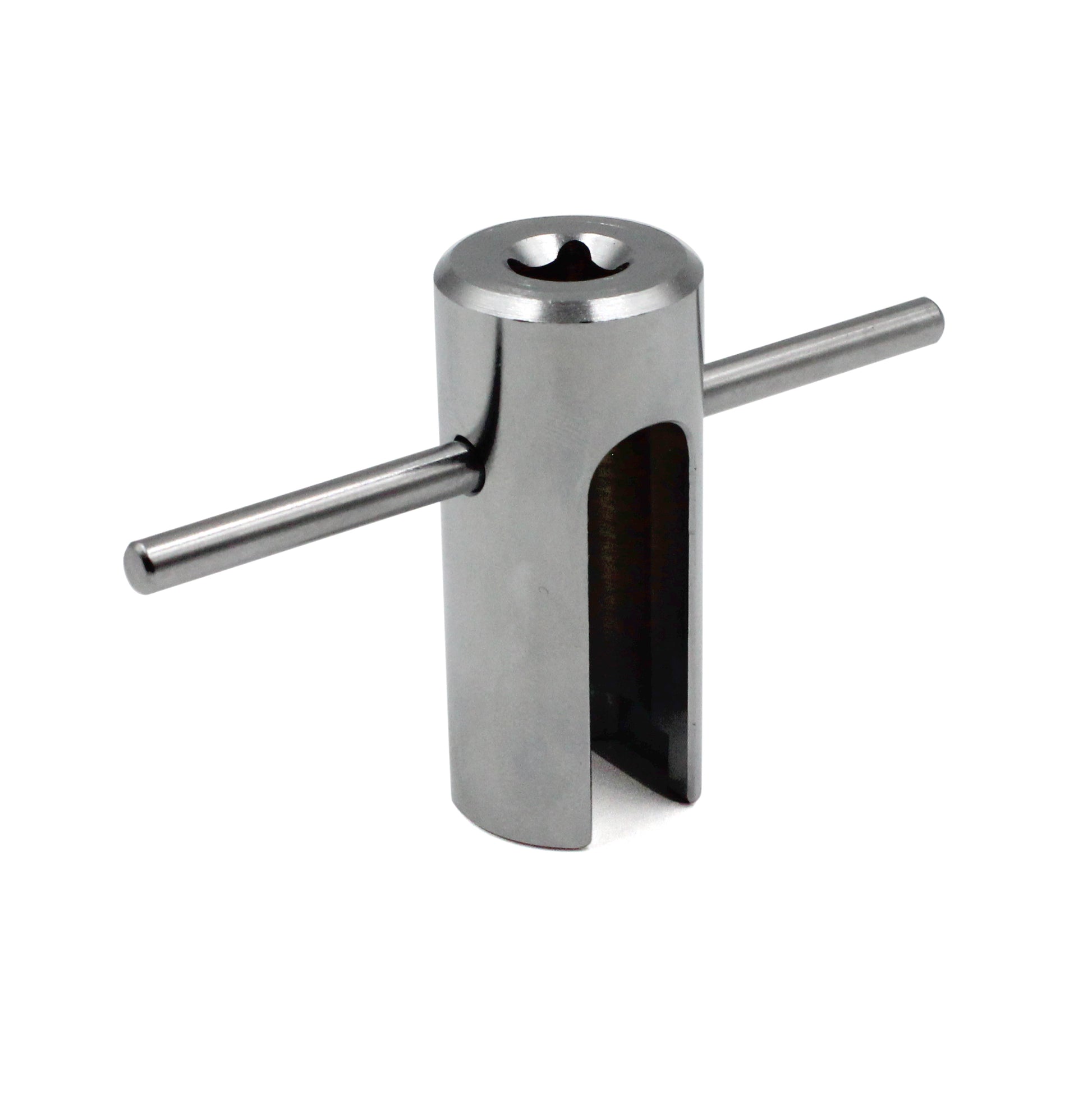

The WetLink Penetrator Plug Wrench helps you assemble the WetLink Penetrator with ease. It’s designed to tighten the plug into the bulkhead with a slot in the side to account for the cable. The wrench can be used with the included lever bar or with a socket driver.
The wrench is made from hardened tool steel and designed to last!

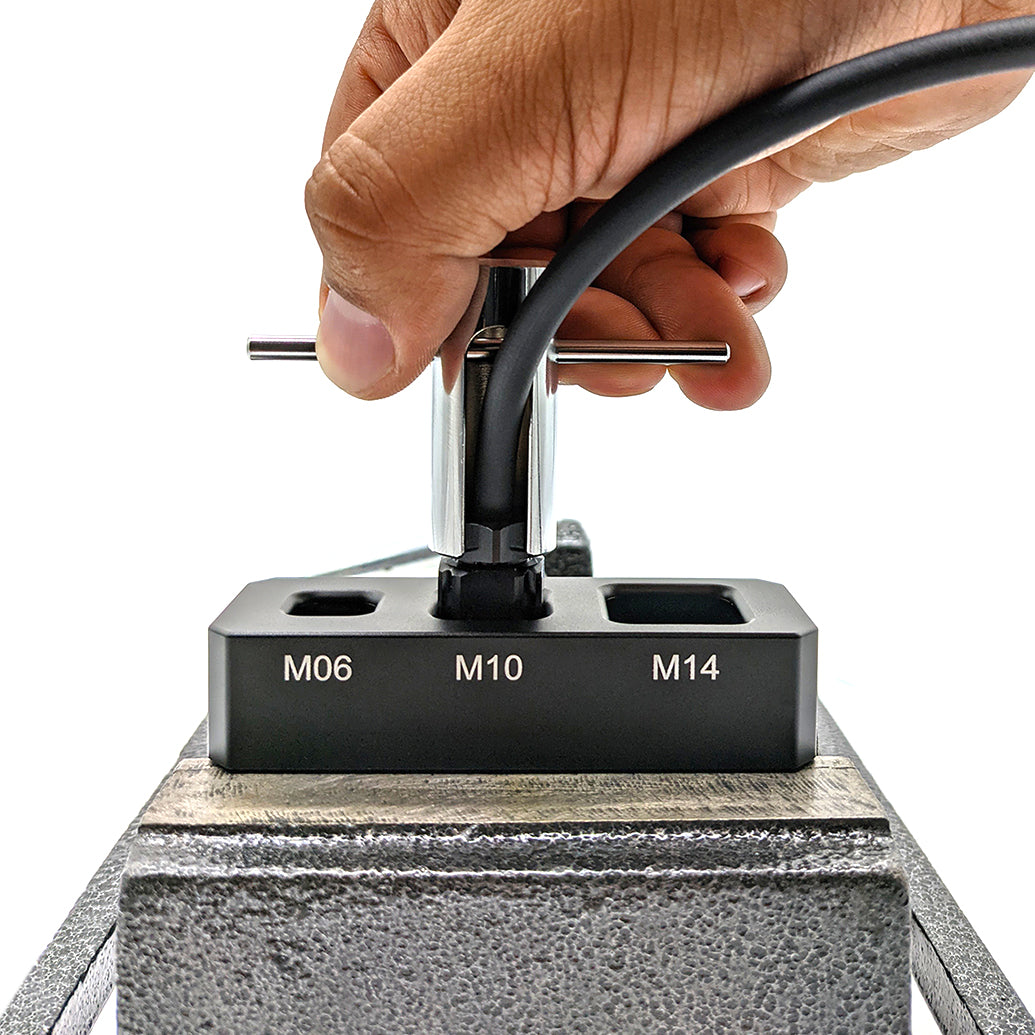

We recommend using the plug wrench with the WetLink Assembly Block, which holds the penetrator bulkhead while tightening the plug.
| Specifications | |||||||||

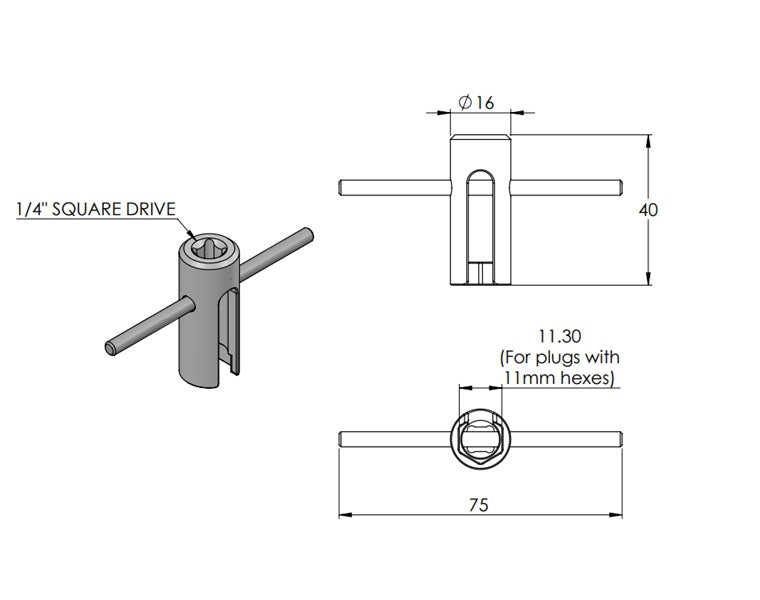

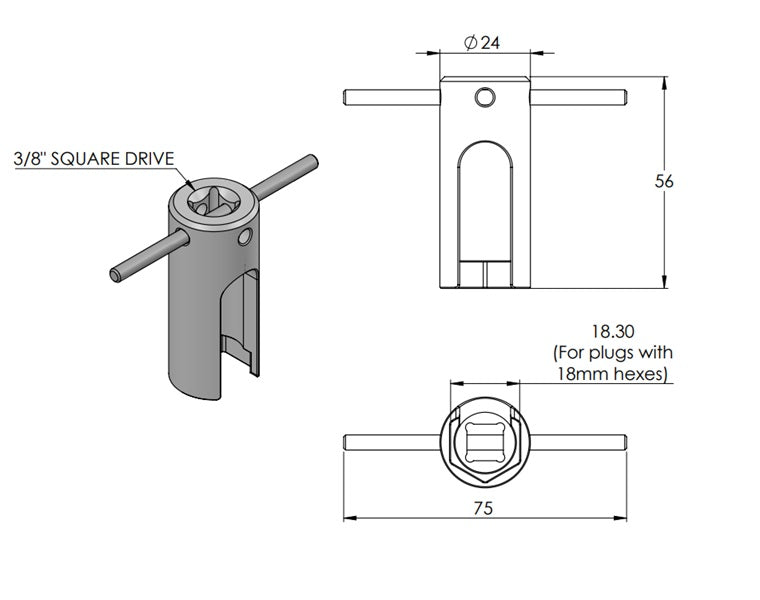

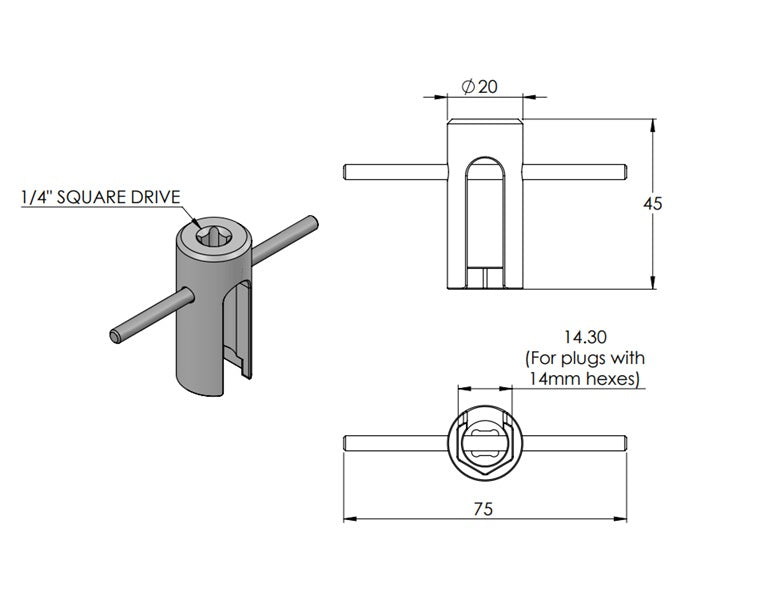

| Plug Wrench Size | 11 mm Hex | 14 mm Hex | 18 mm Hex | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | BR-100369-011 | BR-100369-014 | BR-100369-018 | ||||||
| Material | Chrome-plated steel hardened to HRC 32-36 | ||||||||
| Square Drive Size | 1/4 in (6.3 mm) | 1/4 in (6.3 mm) | 3/8 in (9.5 mm) | ||||||
| Hex Size | 11 mm | 14 mm | 18 mm | ||||||
| WetLink Penetrator Compatibility | All 4.5 mm WetLink Penetrators | All 5.5, 6.5, 7.5, 8.5 mm WetLink Penetrators | All 9.5 mm WetLink Penetrators | ||||||
| WLP Tool Information | |||||||||||||||||||||||||||||||||||
| Seal Size | Bulkhead Size | Bulkhead Wrench | Bulkhead/Nut Flat Size | Bulkhead Installation Torque | Plug Wrench | Plug Hex Size | Plug Installation Torque ² | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.5 | M06 | M06 (BR-100977-006) | 12 mm | 1 N⋅m | 11 mm (BR-100369-011) | 11 mm | ~14 N⋅m | ||||||||||||||||||||||||||||
| 4.5 | M10 | M10 (BR-100977-010) | 16 mm | 3.5 N⋅m | 11 mm (BR-100369-011) | 11 mm | ~14 N⋅m | ||||||||||||||||||||||||||||
| 5.5, 6.5, 7.5, 8.5 | M10 | M10 (BR-100977-010) | 16 mm | 3.5 N⋅m | 14 mm (BR-100369-014) | 14 mm | ~14 N⋅m | ||||||||||||||||||||||||||||
| 9.5 | M14 | M14 (BR-100977-014) | 20 mm | 3.5 N⋅m | 18 mm (BR-100369-018) | 18 mm | ~20 N⋅m | ||||||||||||||||||||||||||||
1 The WetLink Penetrator Assembly Block is compatible with all WetLink Penetrator sizes.
2 Installation torque is approximate. Actual torque to fully seat the plug varies by cable.
