Product Description

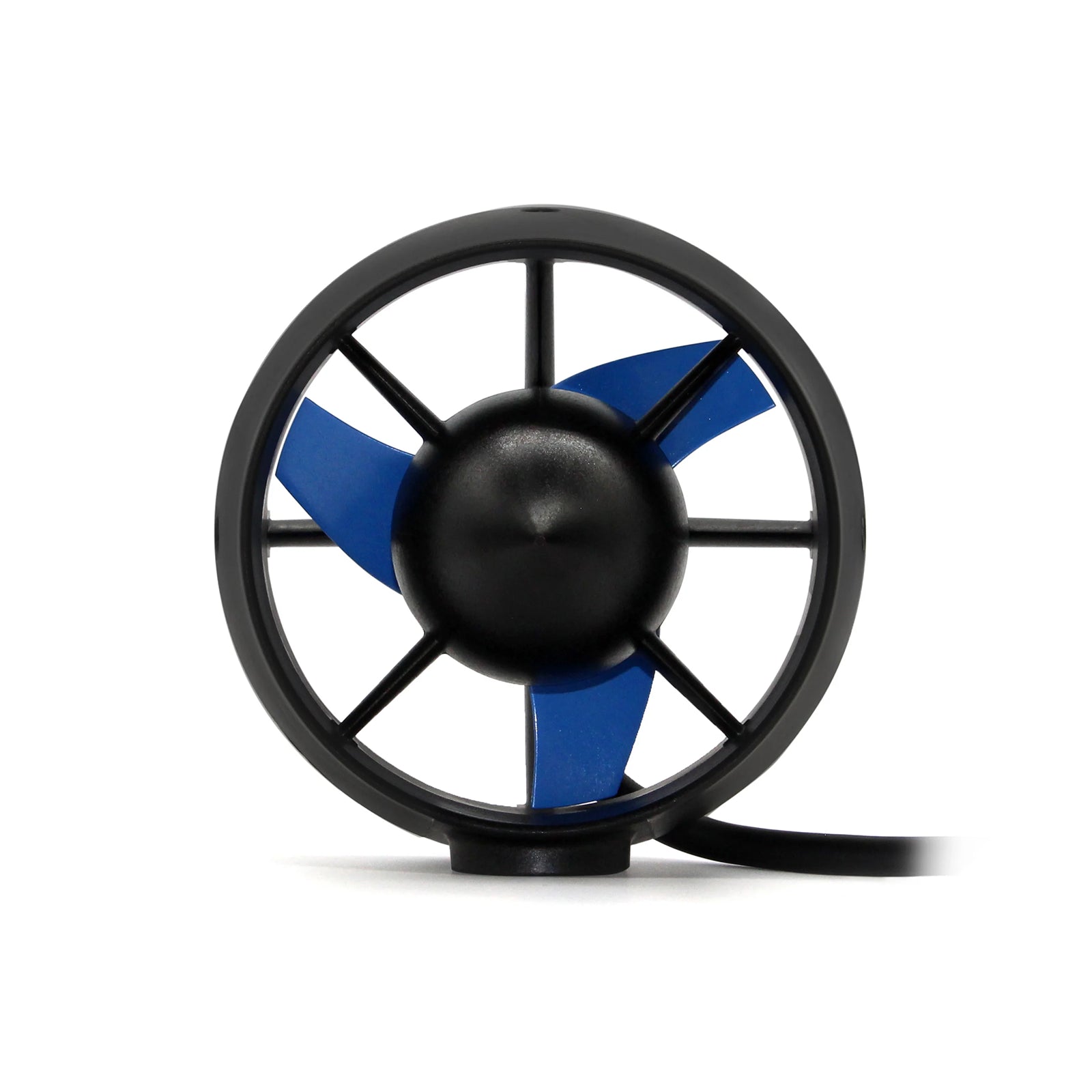

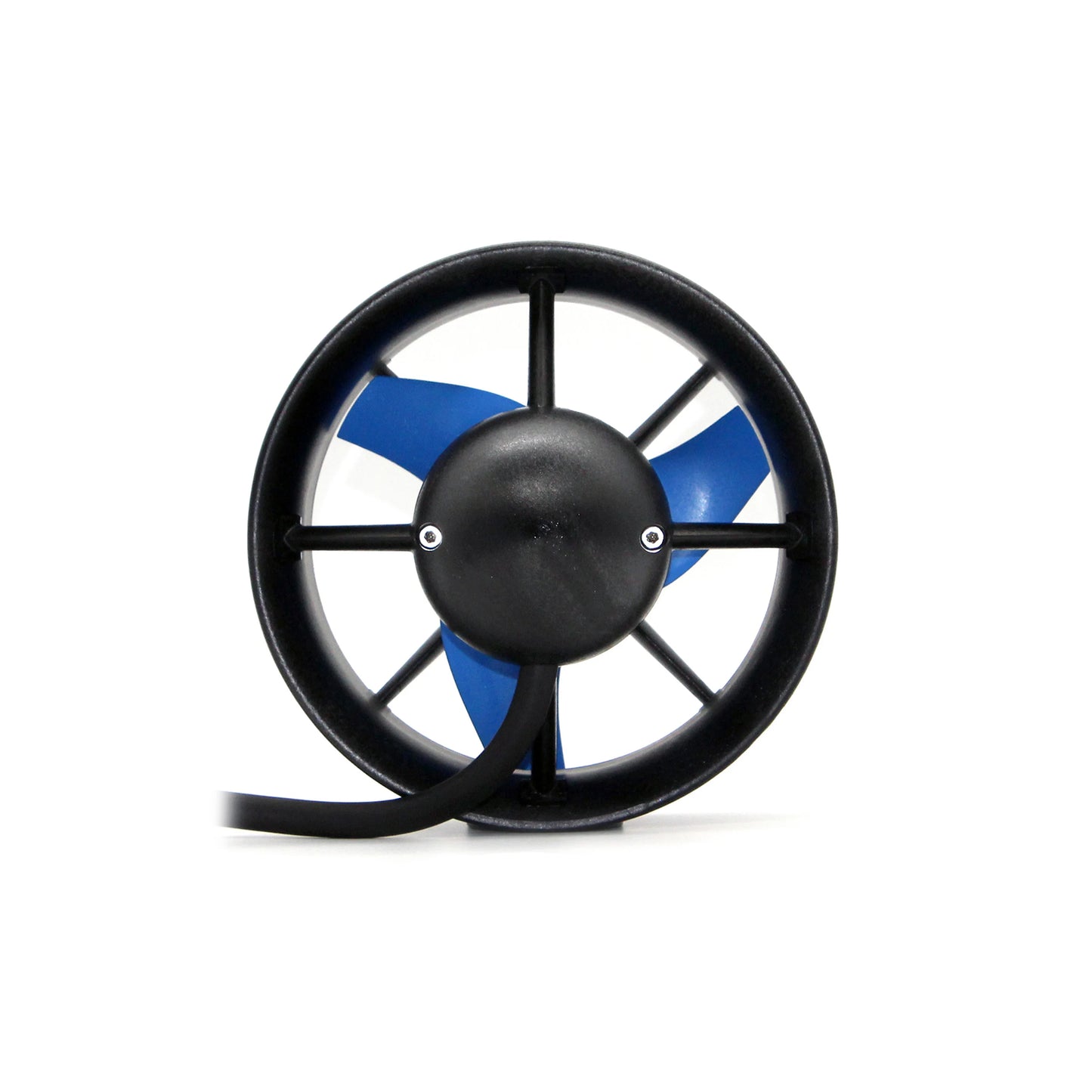

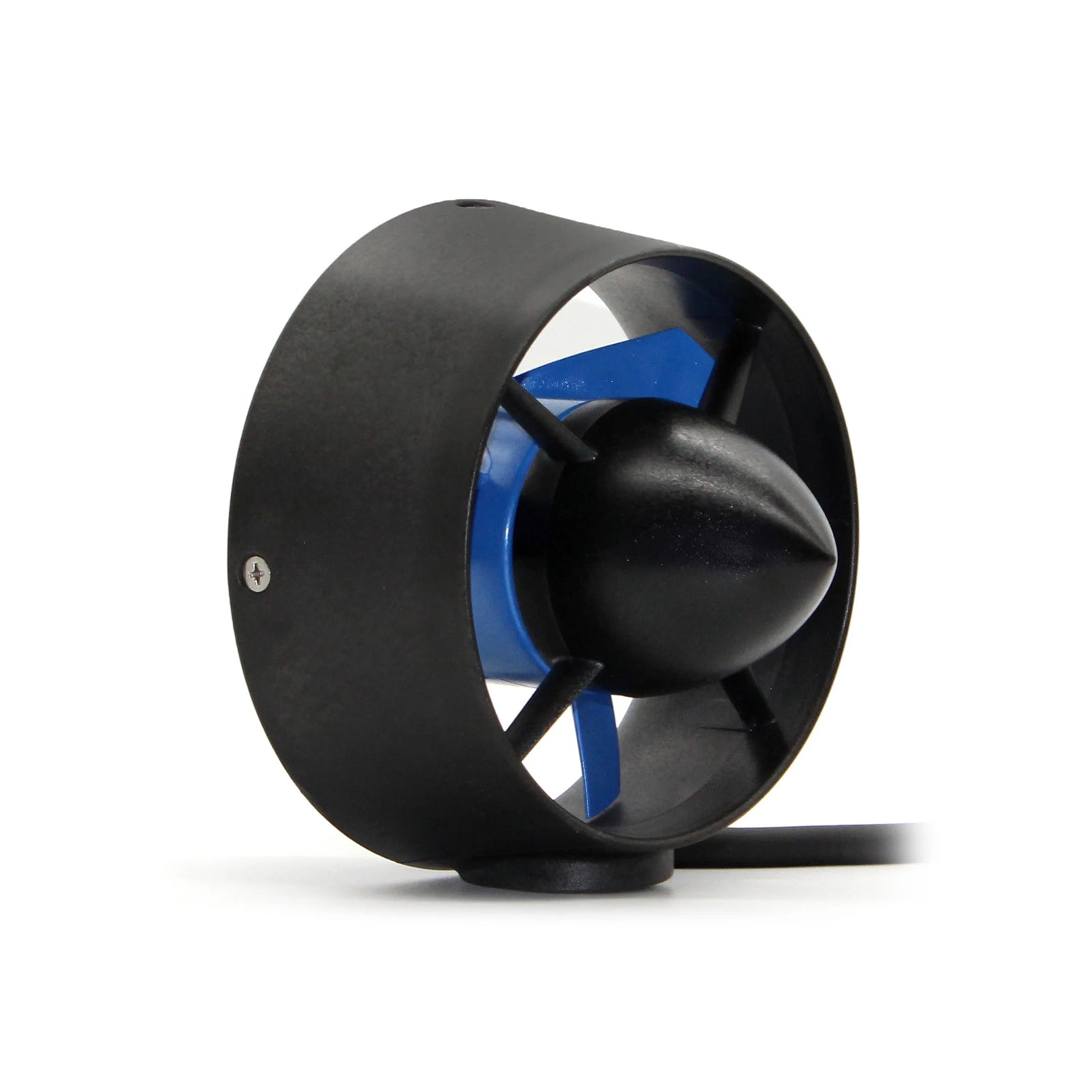

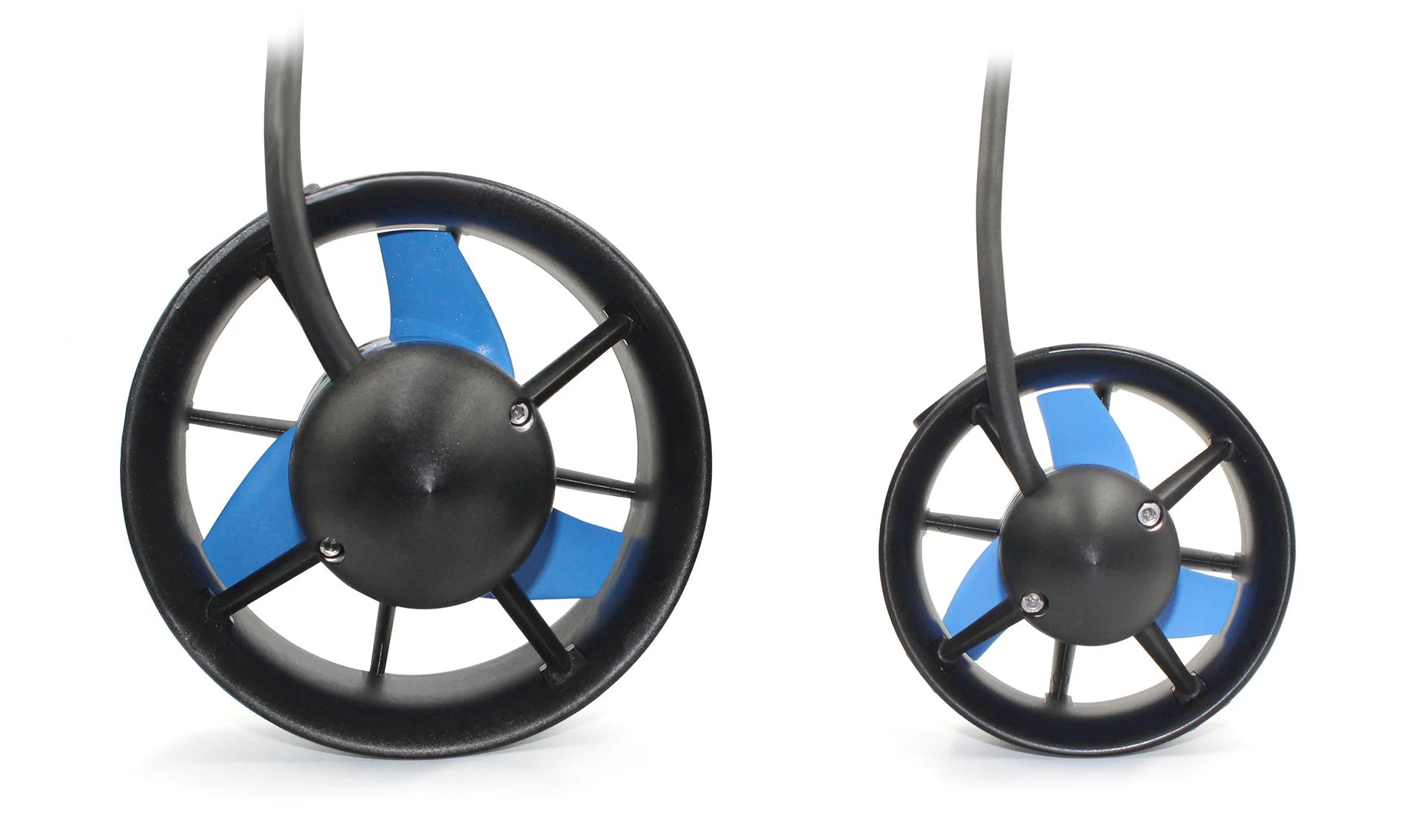

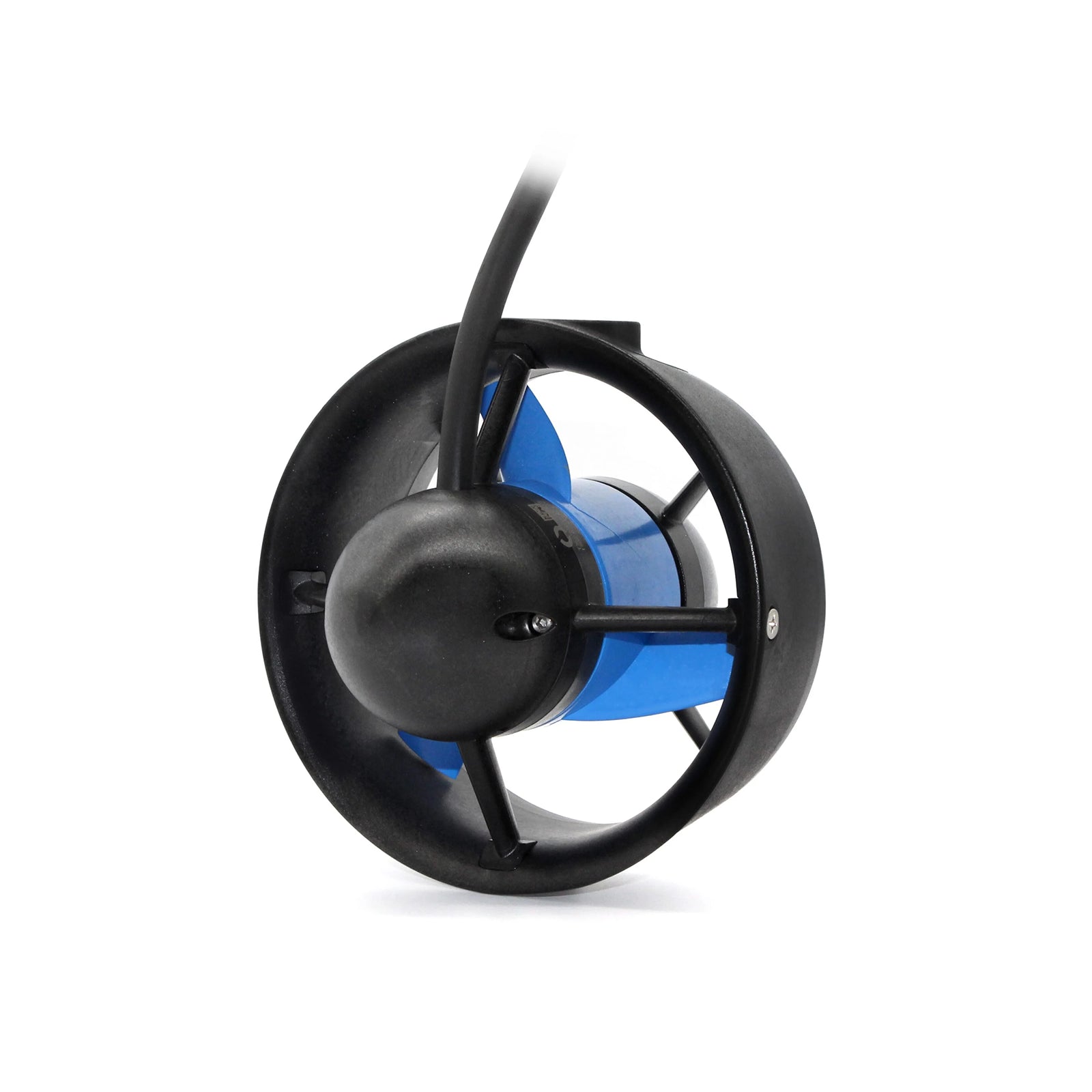

The T500 Thruster is our next-generation thruster with over three times as much thrust as the T200 Thruster. We designed it for high-power ROVs, surface vessels, and AUVs, as well as human-carrying applications like kayaks. It’s carefully designed to be rugged, powerful, and flexible in many applications.
The T500 is designed to achieve its maximum performance of 16.1 kgf (35.5 lb) of thrust at an operating voltage of 24V and power consumption of just over 1 kW. That said, it also operates well at 16V, the voltage of our BlueROV2 and lithium-ion battery. At 16V, it consumes a similar amount of power to the T200 Thruster, but is more efficient and generates 70% more thrust.
| Parameter | Value | |
|---|---|---|
| Performance* | ||
| Full Throttle FWD/REV Thrust @ 24 V | 16.1 / 10.5 kgf | 35.5 / 23.2 lbf |
| Full Throttle FWD/REV Thrust @ 20 V | 13.0 / 8.5 kgf | 28.6 / 18.8 lbf |
| Full Throttle FWD/REV Thrust @ 16 V | 9.3 / 6.2 kgf | 20.4 / 13.8 lbf |
| Full Throttle FWD/REV Thrust @ 12 V | 6.0 / 4.0 kgf | 13.2 / 8.9 lbf |
| Depth Rating | 300 m | 984 ft |
| Operating Water Temperature (full power @ 24 V) | 2–27°C | 36–81°F |
| Electrical | ||
| Operating Voltage* | 7–24 volts | |
| Motor Kv (No load) | 202 RPM/V | |
| Full Throttle Current & Power @ 24 V | 43.5 A | 1044 W |
| Full Throttle RPM @ 24 V | 3100 RPM | |
| Full Throttle Current & Power @ 20 V | 34.0 A | 681 W |
| Full Throttle RPM @ 20 V | 2740 RPM | |
| Full Throttle Current & Power @ 16 V | 25.1 A | 402 W |
| Full Throttle RPM @ 16 V | 2350 RPM | |
| Full Throttle Current & Power @ 12 V | 16.9 A | 202 W |
| Full Throttle RPM @ 12 V | 1900 RPM | |
| Physical | ||

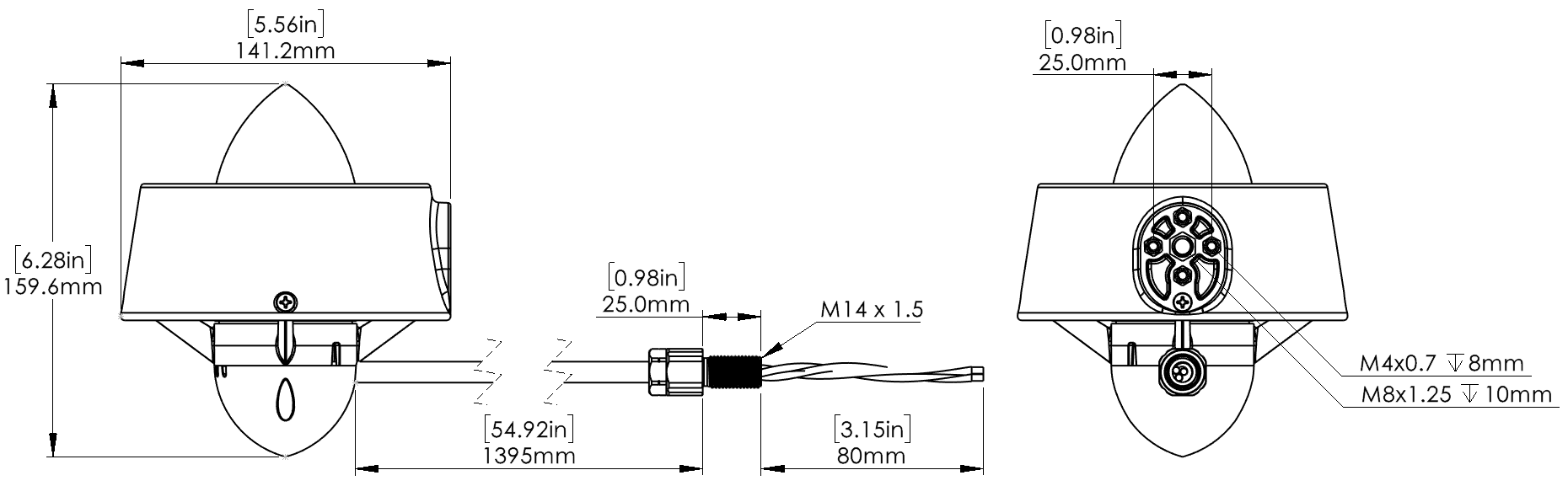

| Length | 160 mm | 6.30 in |
| Diameter | 141 mm | 5.55 in |
| Cone Diameter | 62 mm | 2.43 in |
| Propeller Diameter | 114.5 mm | 4.5 in |
| Propeller Pitch | 27.5° | |
| Wetted Materials | Polycarbonate 10% glass-filled, Epoxy, Stainless steel 316, Plastic, Polyurethane, POM, Buna-N | |
| Weight in Air (with 1.5m cable) | 1157 g | 2.55 lb |
| Weight in Water (with 1.5m cable) | 730 g | 1.61 lb |

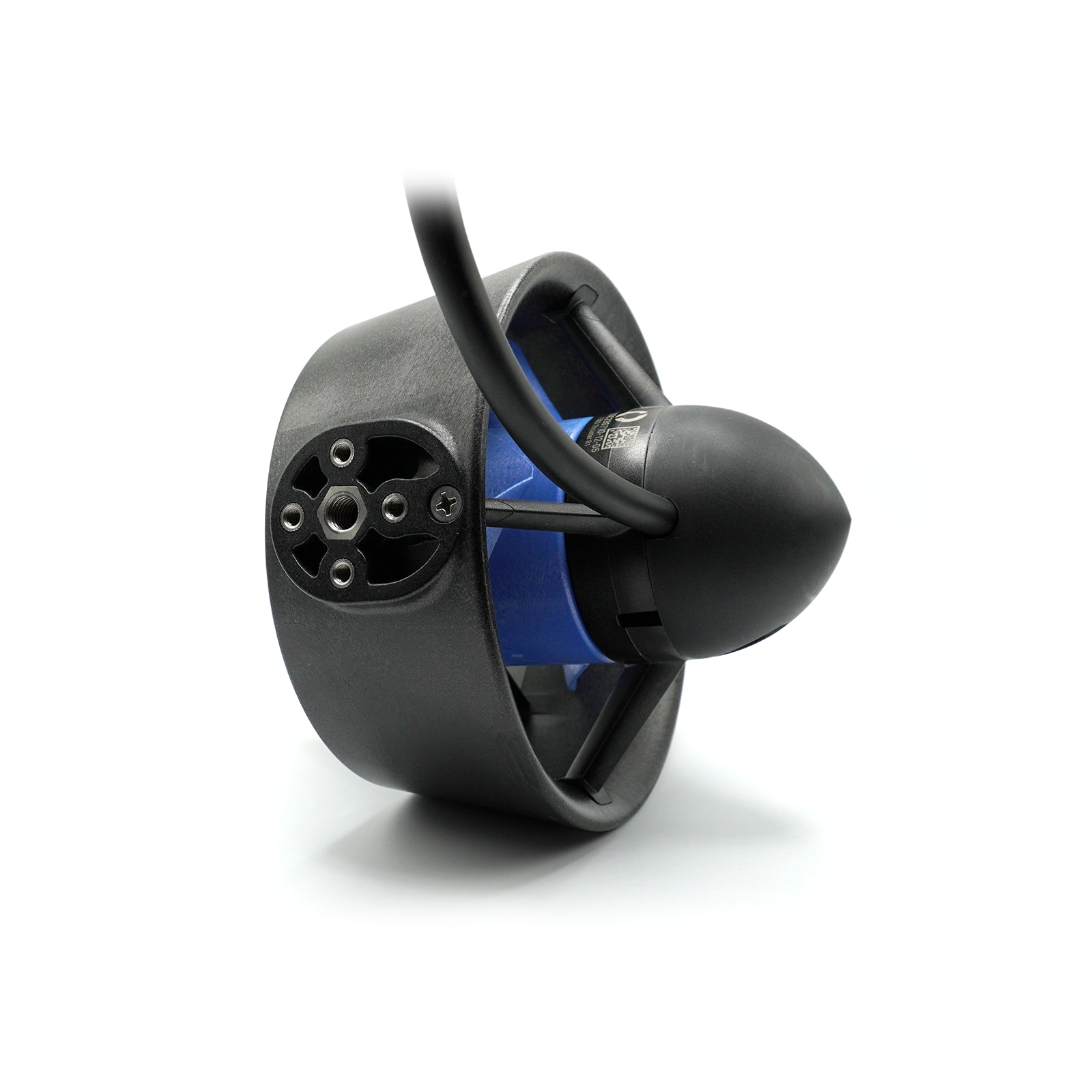

| Mounting Hole Threads | 4 × M4x0.7, 1 × M8x1.25 | |
| Mounting Hole Depth | (M4) 8 mm (M8) 10 mm | |
| Mounting Hole Spacing (M4) | 25 mm | 0.98 in |
| Recommended Fastener Installation Torque | 1.3–1.7 Nm (M4 fasteners) | 3–5 Nm (M8 fasteners) |
| Cable | ||
| Cable Type | BR-100295 | |
| Overall Cable Length | 1.5 m | 59 in |
| Cable Length (Thruster to WLP) | 1.37 m | 54 in |
| Wire Length (WLP to end) | 80 mm | 3.1 in |
| Cable Diameter | 9.0 mm | 0.35 in |
| Conductor Gauge | 12 AWG | |
| Penetrator | ||
| Pre-installed WetLink Penetrator | M14-9.5mm-HC | |
| Penetrator Thread | M14 x 1.5 | |
| Penetrator Thread Length | 25 mm | 1.0 in |
| Penetrator O-ring | 1.5×1.5mm Buna-N 70A | |
* All performance and electrical values are typical but may vary by about ±6% between units.
* The T500 thruster has a maximum operating voltage of 24 V. Full thrust operation using a lithium-ion polymer battery (maximum). Continuous full throttle use should be limited to 1 minute or less when the T500 operates at 24 V with a fully charged lithium-ion polymer battery to avoid overheating the thruster.
For more detailed performance specs, including thrust, RPM, power, and efficiency at various throttle levels and supply voltages, refer to the performance charts below.
* The T500 thruster has a maximum operating voltage of 24 V. Full thrust operation using a lithium-ion polymer battery (maximum). Continuous full throttle use should be limited to 1 minute or less when the T500 operates at 24 V with a fully charged lithium-ion polymer battery to avoid overheating the thruster.
For more detailed performance specs, including thrust, RPM, power, and efficiency at various throttle levels and supply voltages, refer to the performance charts below.
T500_thrust
T500_rpm
T500_thrust_power
T500_current_draw
T500_efficiency
You may also like
-

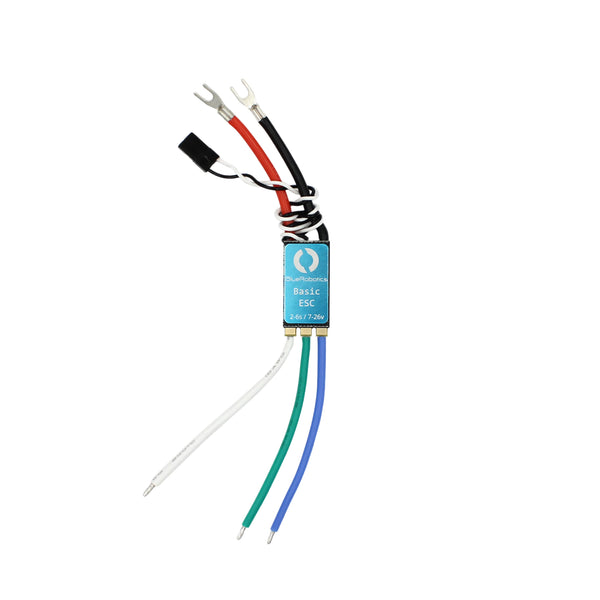

Basic ESCRs. 3,360.00 -

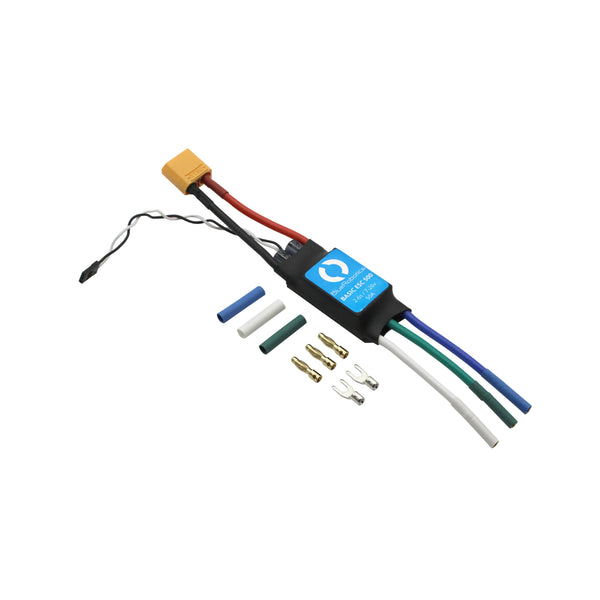

Basic ESC 500Rs. 11,550.00
